2020 Kawasaki KLX®300R Water Pipe Diagram

← All diagrams

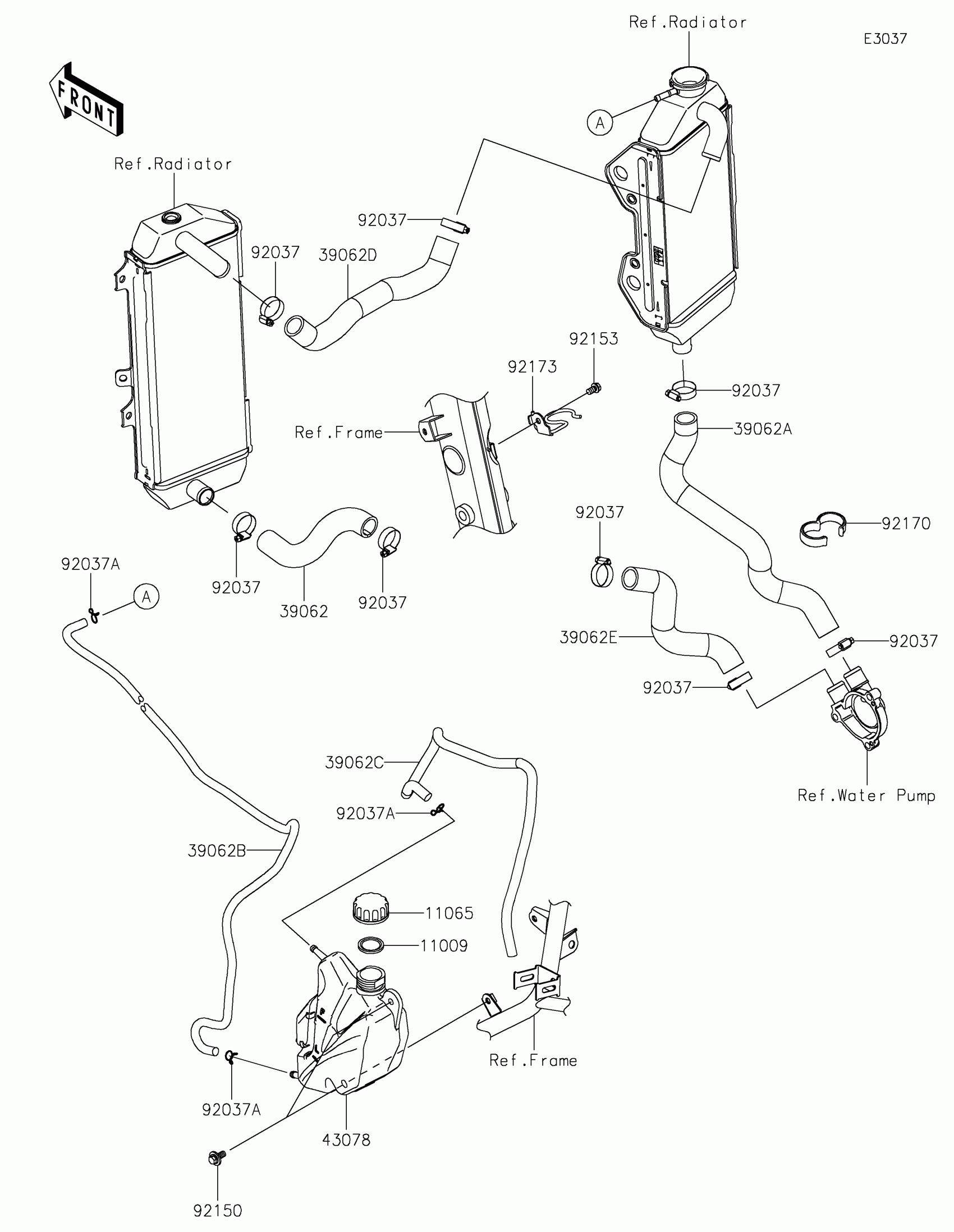

Find the part on the Water Pipe diagram for your 2020 Kawasaki KLX®300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KLX®300R Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11065

CAP

11065-0969

1

$1.69

In stock

39062

1

$13.03

In stock

39062A

1

$16.37

In stock

39062B

1

$18.05

In stock

39062C

1

$14.36

In stock

39062D

1

$8.00

In stock

39062E

1

$29.37

In stock

43078

RESERVOIR

43078-0603

1

$56.09

In stock

92037

CLAMP,COOLING HOSE

92037-1589

1

$14.60

In stock

92037A

CLAMP

92037-1712

1

$3.97

In stock

92150

BOLT,6X14

92150-1340

1

$4.02

In stock

92153

BOLT,FLANGED,6X10

92153-1354

1
Out of stock

92170

CLAMP

92170-1419

1

$4.85

In stock

92173

CLAMP

92173-2250

1

$8.31

In stock
