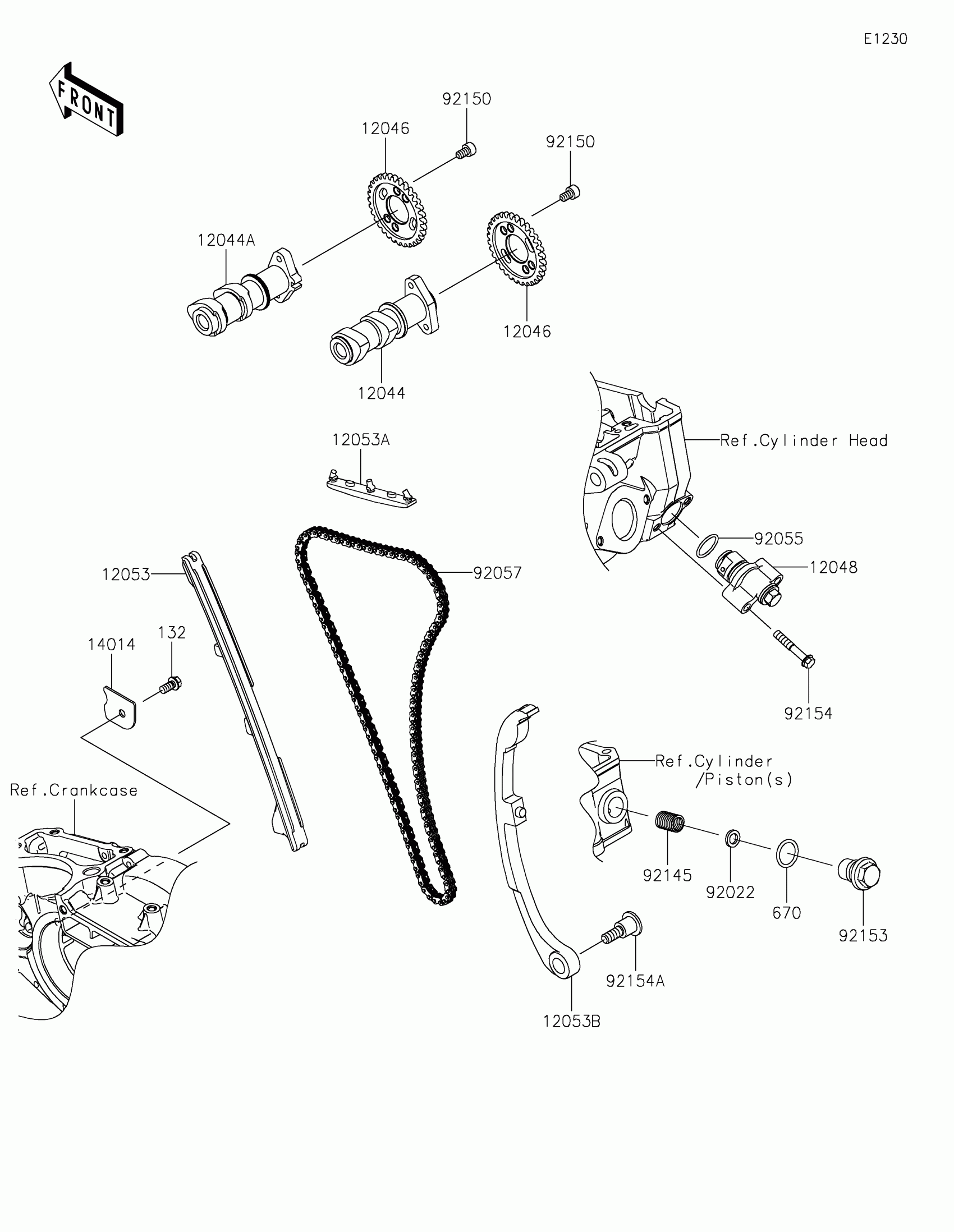

Kawasaki KLX®300R Camshaft(s)/Tensioner Diagram

Description

Price

12044

CAMSHAFT-VALVE,INTAKE

12044-0786

$273.07

12044A

CAMSHAFT-VALVE,EXHAUST

12044-0787

$302.71

12046

SPROCKET,CAMSHAFT,32T

12046-0576

$42.23

12048

TENSIONER-ASSY

12048-0054

$121.52

12053

GUIDE-CHAIN,FR

12053-0204

$52.84

12053A

GUIDE-CHAIN,UPP

12053-1317

$10.19

12053B

GUIDE-CHAIN,RR

12053-1391

$79.35

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49

14014

PLATE-POSITION

14014-1130

$4.15

670

O RING,18MM

670B2018

$1.08

92022

WASHER,8.5X13.5X2

92022-1108

$3.85

92055

RING-O,18.8X1.9

92055-086

$3.29

92057

CHAIN,CAM,92RH2010

92057-0668

Unavailable

92145

SPRING,TENSIONER

92145-0993

$5.61

92150

BOLT,SOCKET,6X10

92150-1650

$3.85

92153

BOLT,TENSIONER

92153-0650

$2.15

92154

BOLT,FLANGED,6X35

92154-0807

$2.11

92154A

BOLT

92154-1307

$22.61
