2020 Kawasaki KLX®300R Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2020 Kawasaki KLX®300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

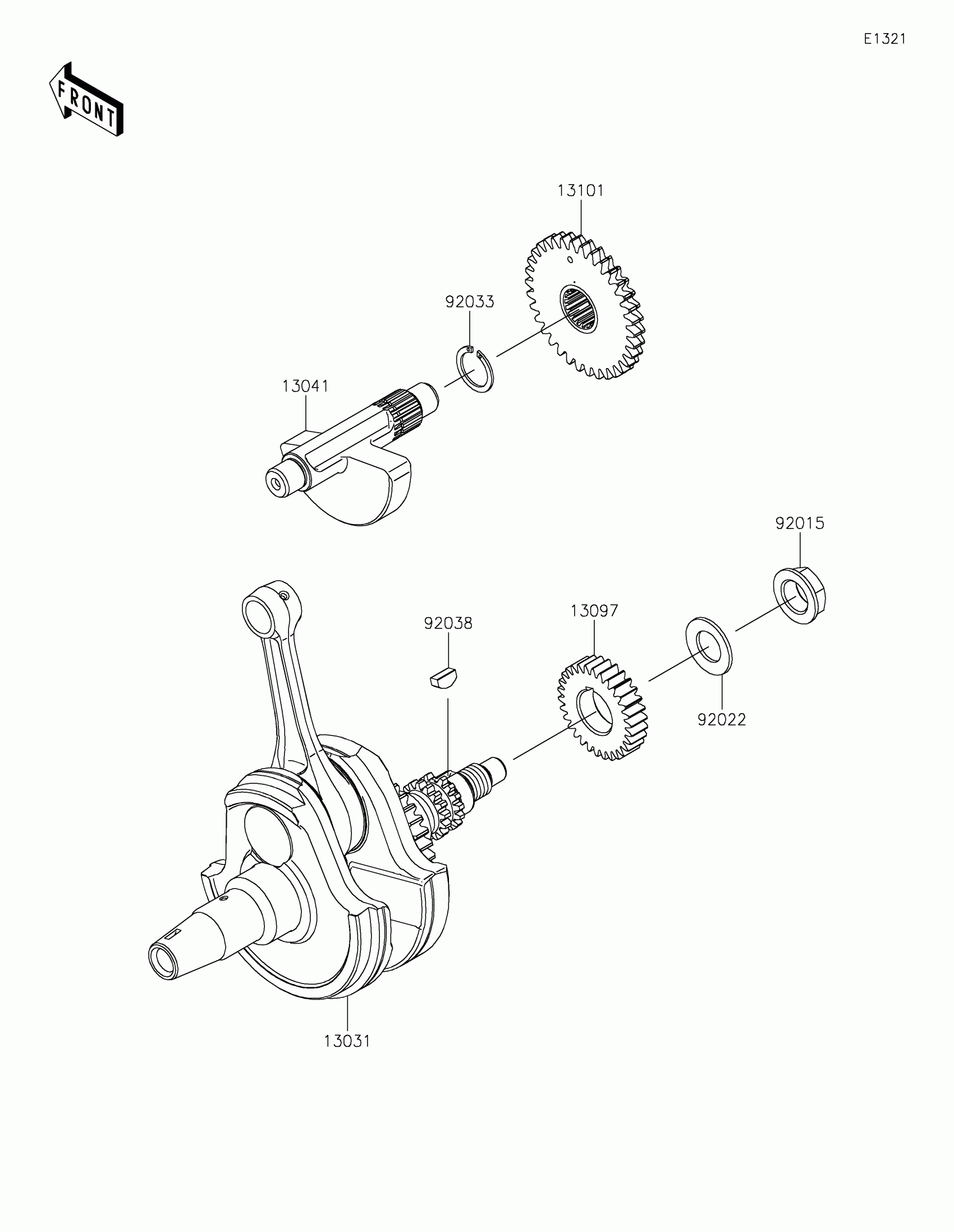

2020 Kawasaki KLX®300R Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-0936

1

$741.80

In stock

13041

BALANCER

13041-0001

1

$91.54

In stock

13097

1

$82.15

In stock

13101

GEAR-ASSY,BALANCER

13101-0629

1

$114.03

In stock

92015

NUT,16MM

92015-1581

1

$15.43

In stock

92022

WASHER,16.3X29X1.75

92022-1356

1

$5.84

In stock

92033

RING-SNAP,18MM

92033-029

1

$7.79

In stock

92038

KEY

92038-1057

1

$4.80

In stock
← Crankcase Cylinder Head →
