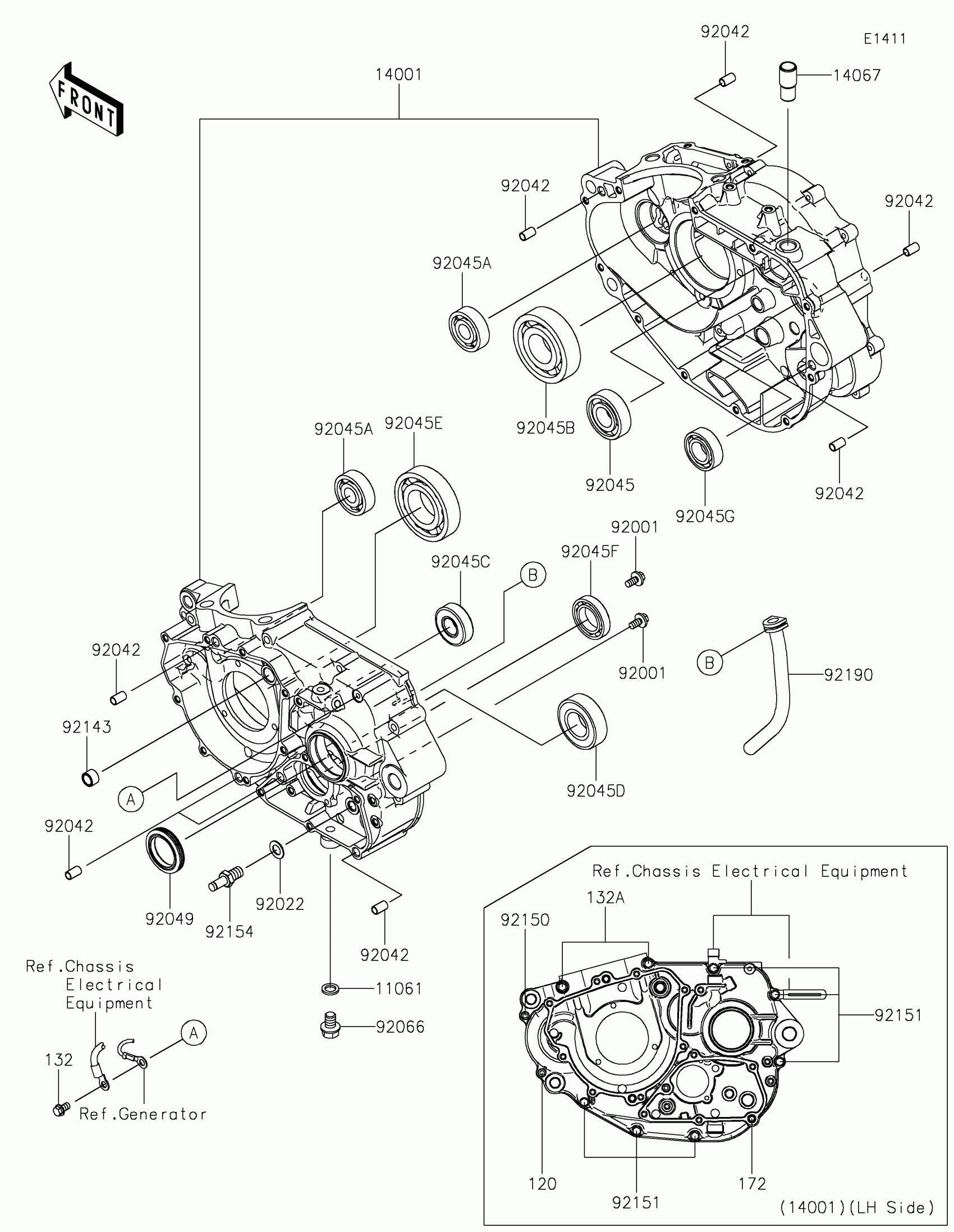

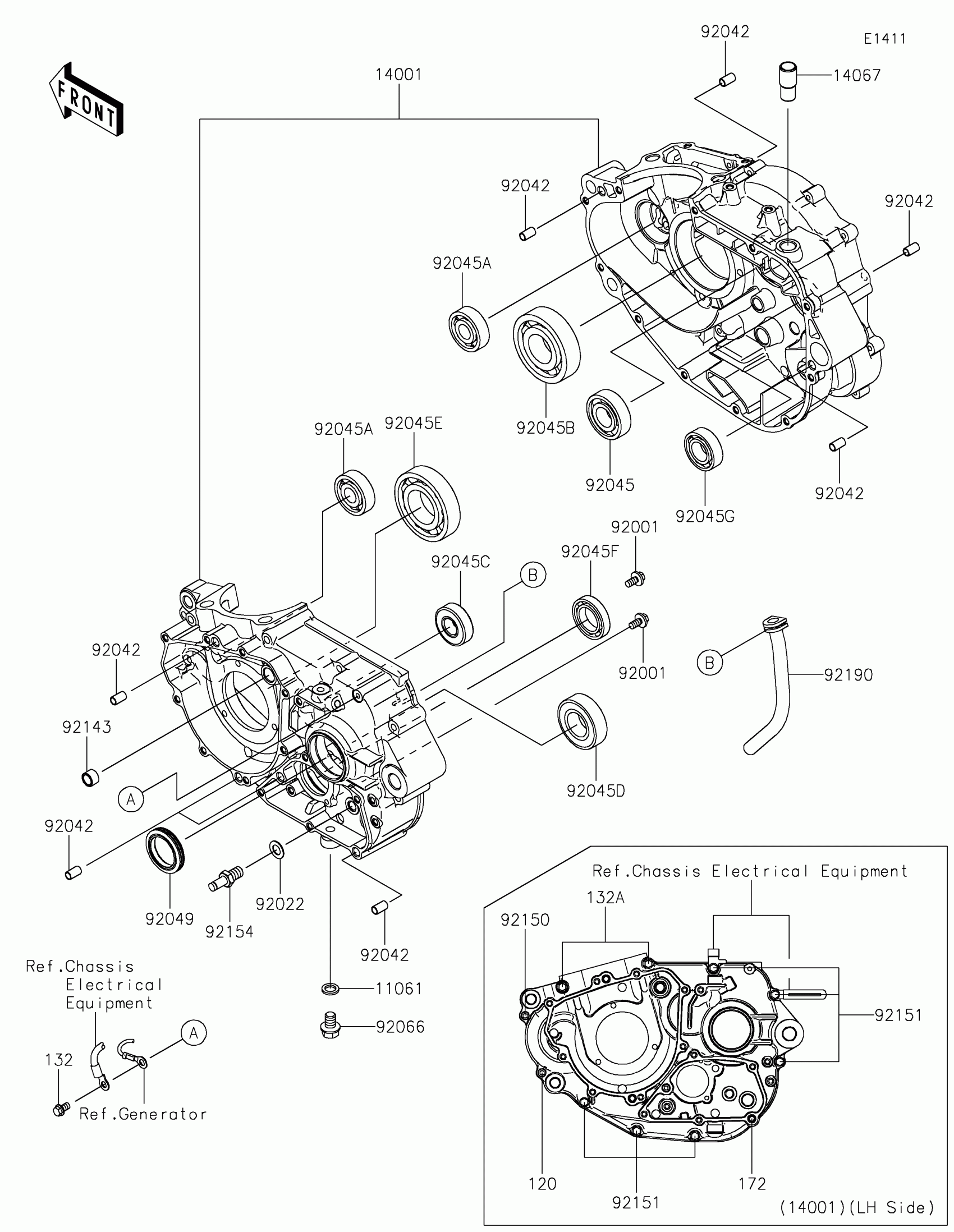

Find the part on the Crankcase diagram for your 2020 Kawasaki KLX®300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KLX®300R Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,10.5X16X2

11061-0222

1

$4.44

In stock

120

BOLT-SOCKET,6X50

120CC0650

1

$2.10

In stock

132

BOLT-FLANGED-SMALL

132BC0610

1

$1.68

In stock

132A

1

$3.51

In stock

14001

SET-CRANKCASE

14001-0713

1

$800.64

In stock

14067

FITTING,BREATHER

14067-006

1

$19.78

In stock

172

BOLT-STUD,6X80

172BA0680

1

$2.25

In stock

92001

BOLT,W/WASHER,6X14

92001-1829

1

$3.53

In stock

92022

1

$4.17

In stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92045

1

$31.01

In stock

92045A

1

$16.42

In stock

92045B

1

$35.88

In stock

92045C

1

$23.32

In stock

92045D

1

$32.62

In stock

92045E

1

$35.88

In stock

92045F

1

$25.86

In stock

92045G

1

$29.10

In stock

92049

SEAL-OIL,32X45X7.5

92049-0825

1

$20.69

In stock

92066

PLUG,DRAIN

92066-0143

1

$2.92

In stock

92143

COLLAR

92143-1263

1

$4.32

In stock

92150

BOLT,SOCKET,6X35

92150-1875

1

$4.66

In stock

92151

BOLT,6X50

92151-1234

1

$2.03

In stock

92154

BOLT,RETURN SPRING

92154-1306

1

$8.51

In stock

92190

TUBE

92190-1493

1

$11.19

In stock
