2020 Kawasaki KLX®300R Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2020 Kawasaki KLX®300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

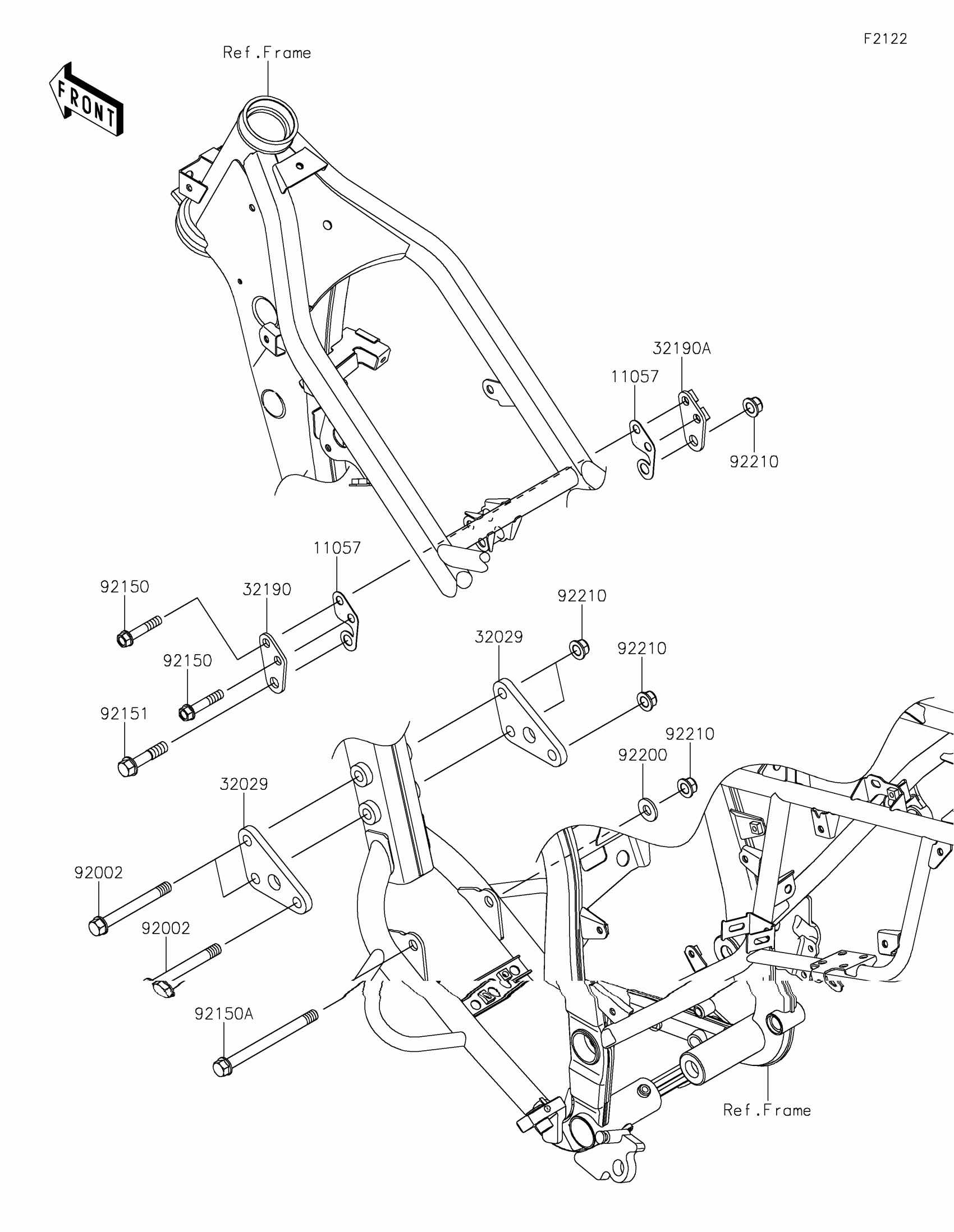

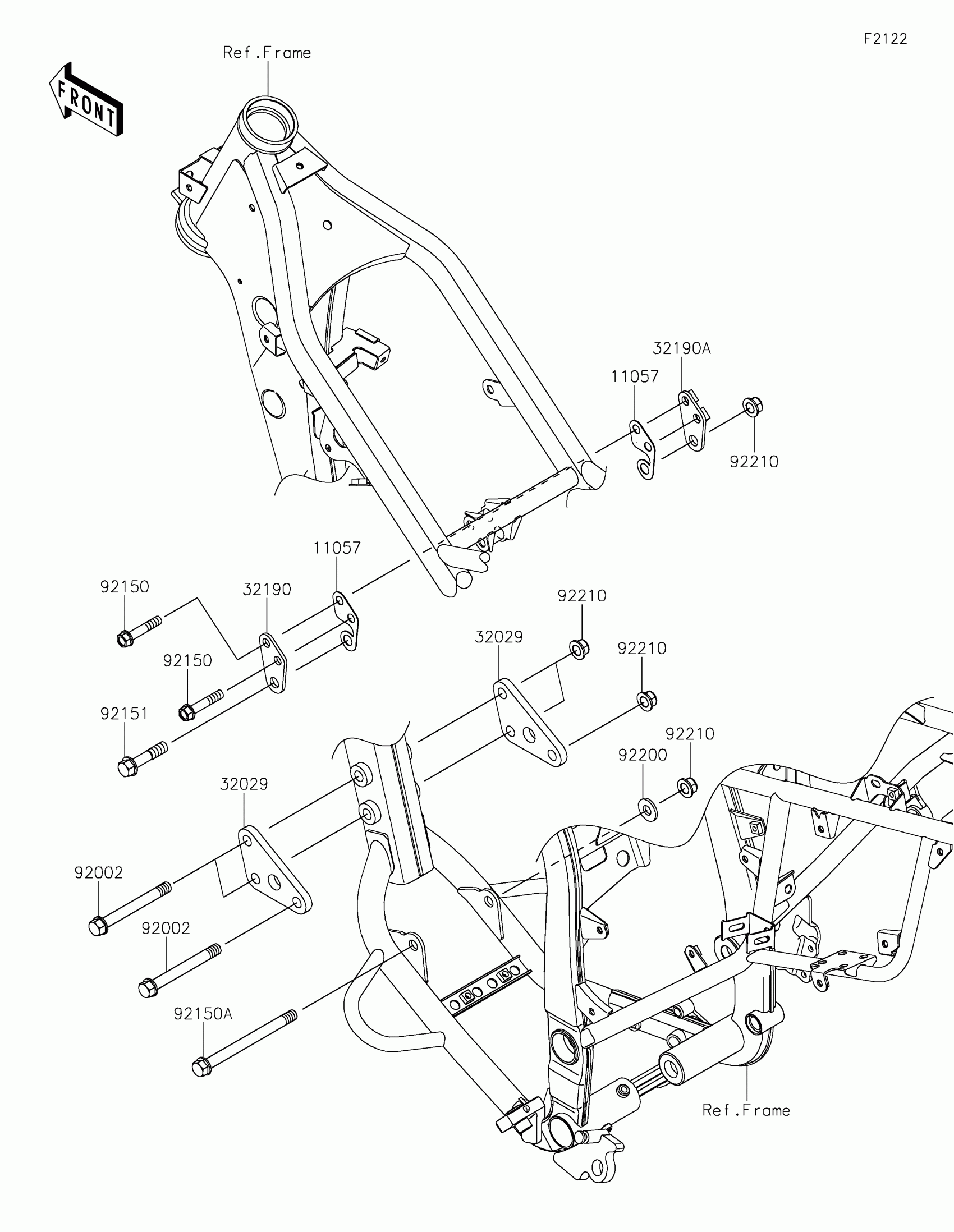

2020 Kawasaki KLX®300R Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-3705

1

$1.56

In stock

32029

BRACKET-ENGINE,FR

32029-1855

1

$20.85

In stock

32190

1

$7.47

In stock

32190A

1

$7.47

In stock

92002

BOLT,10X90

92002-1674

1
Out of stock

92150

BOLT,FLANGED,8X42

92150-1415

1

$2.68

In stock

92150A

BOLT,FLANGED,10X120

92150-1642

1

$16.78

In stock

92151

BOLT,FLANGED,10X45

92151-1413

1

$3.56

In stock

92200

WASHER,10.2X23X2.5

92200-0211

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock
