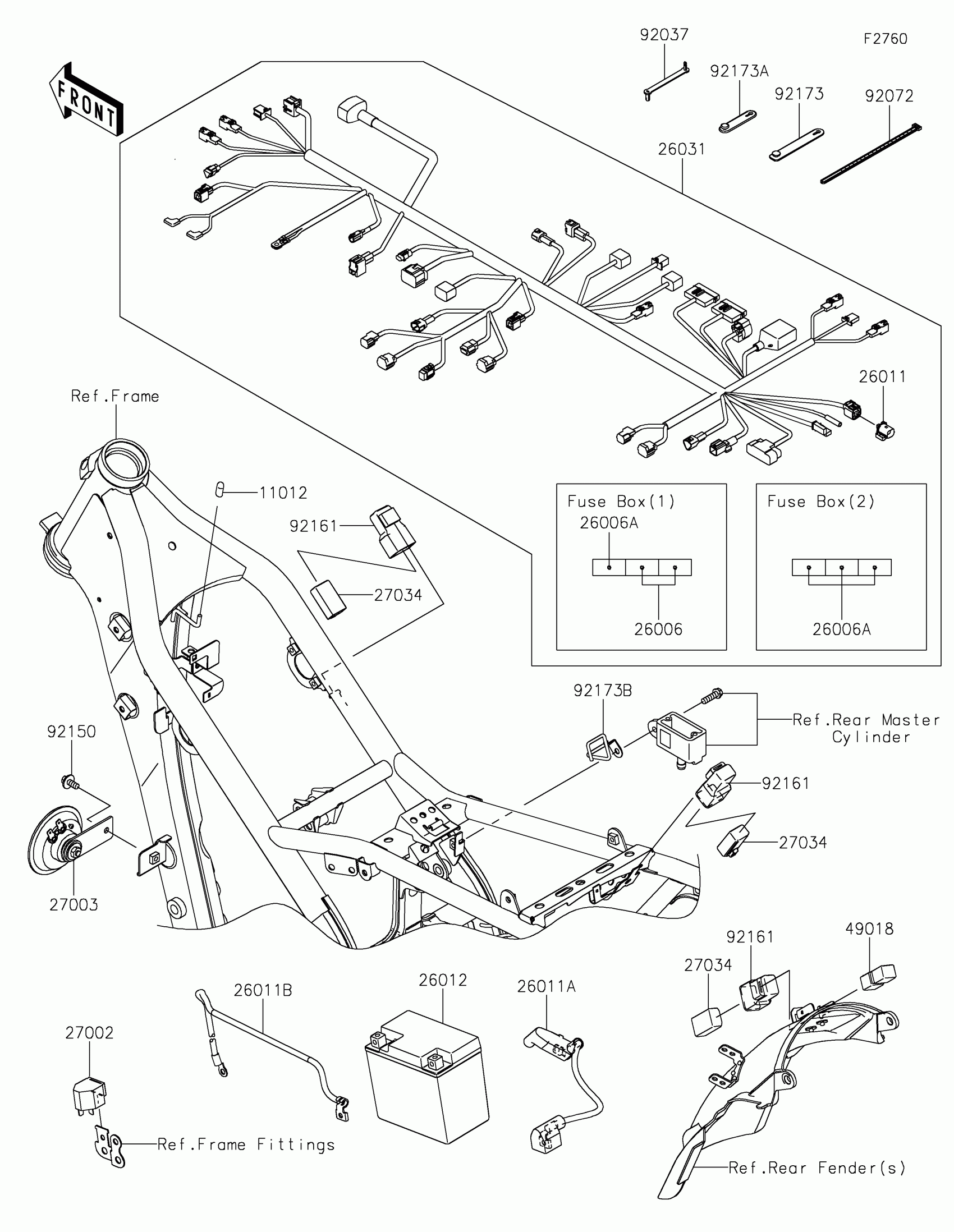

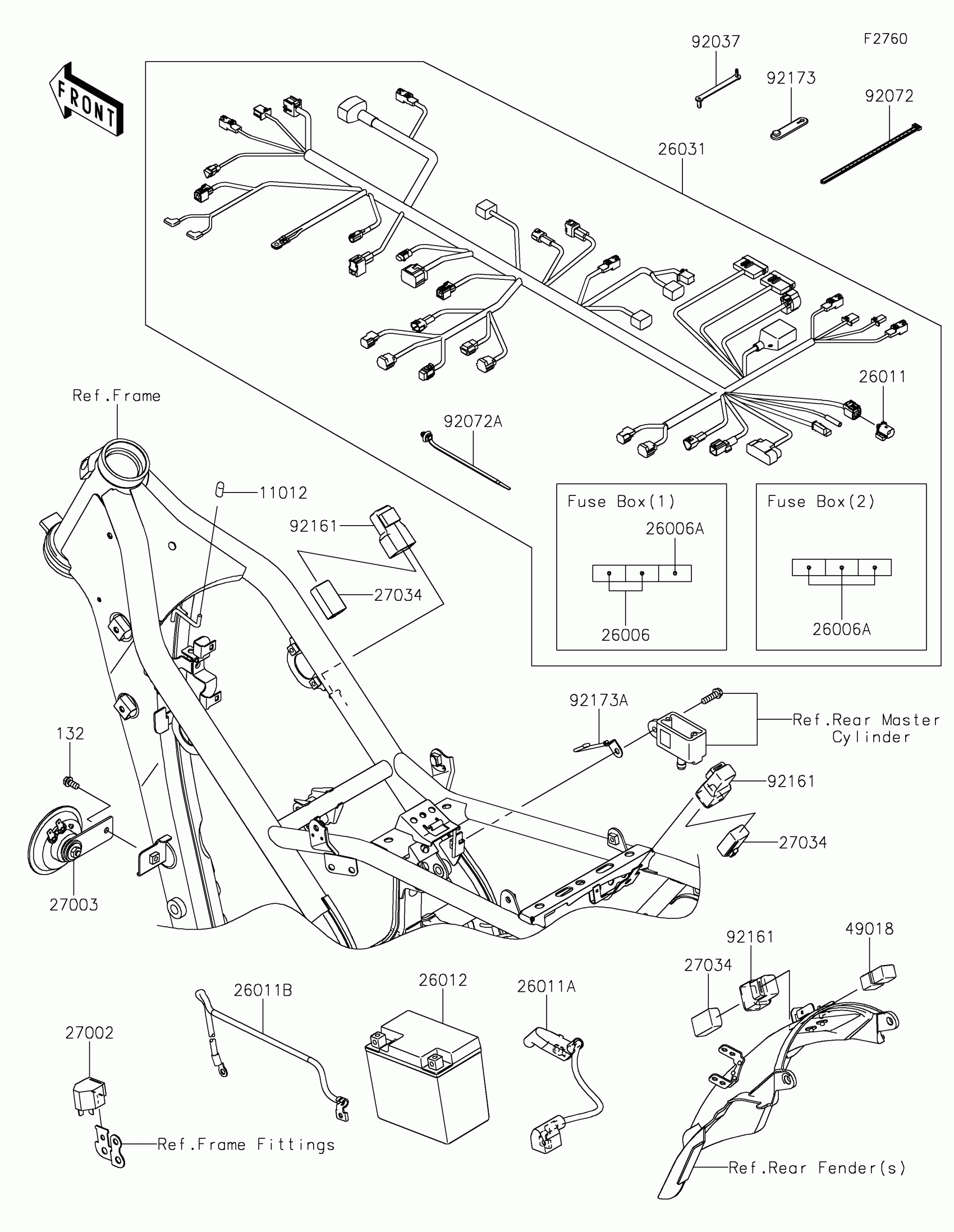

Find the part on the Chassis Electrical Equipment diagram for your 2021 Kawasaki KLX®300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki KLX®300 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

1

$7.63

In stock

26006

1

$5.34

In stock

26006A

FUSE,MINI BLADE,10A,RED

26006-0009

1
Out of stock

26011

1

$33.83

In stock

26011A

1

$37.96

In stock

26011B

1

$34.84

In stock

26012

1

$149.86

In stock

26031

HARNESS,MAIN

26031-3775

1

$835.17

In stock

27002

1

$24.24

In stock

27003

HORN

27003-0162

1

$82.95

In stock

27034

RELAY

27034-0012

1

$37.62

In stock

49018

DIODE

49018-0005

1

$42.75

In stock

92037

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92072

BAND,L=250

92072-1237

1

$1.80

In stock

92150

BOLT,FLANGED,6X14

92150-1689

1

$3.14

In stock

92161

DAMPER

92161-2290

1

$5.27

In stock

92173

CLAMP

92173-2194

1

$1.56

In stock

92173A

CLAMP

92173-2198

1

$1.32

In stock

92173B

CLAMP,HARNESS

92173-2340

1

$4.68

In stock
