2021 Kawasaki KLX®300 Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2021 Kawasaki KLX®300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

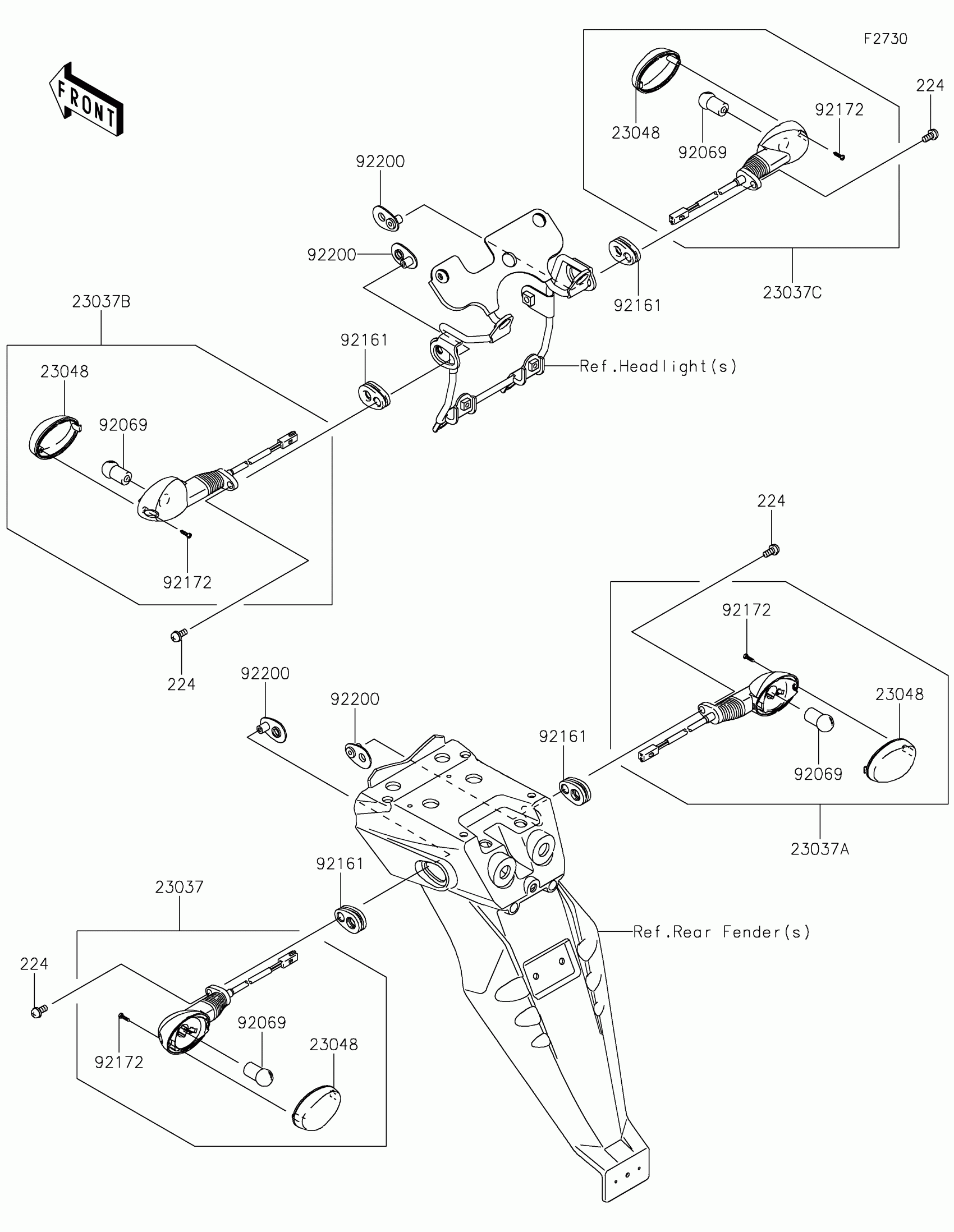

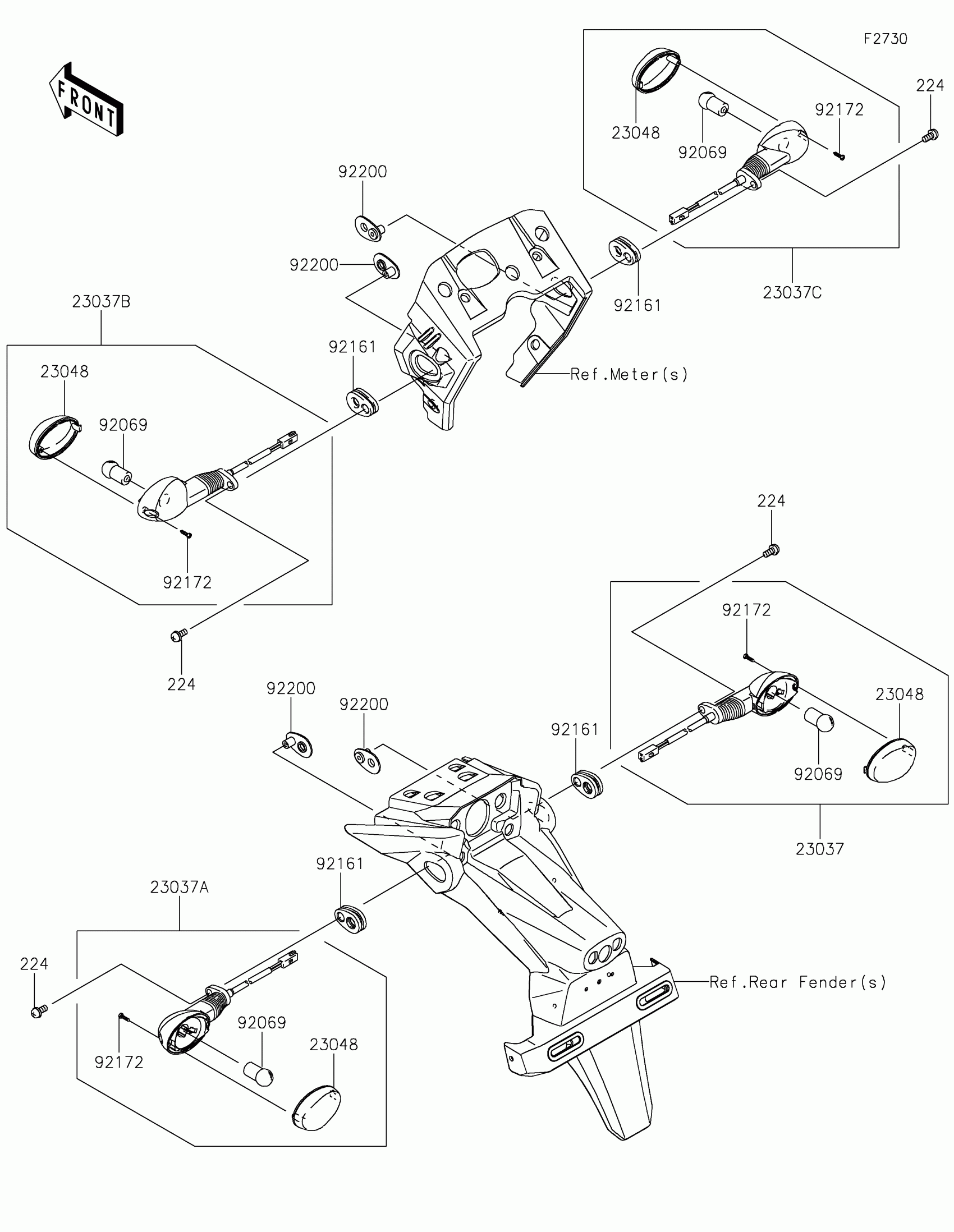

2021 Kawasaki KLX®300 Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23037

1

$44.61

In stock

23037A

1

$44.61

In stock

23037B

1

$73.00

In stock

23037C

1

$73.00

In stock

23048

LENS-SIGNAL LAMP

23048-0035

1

$8.61

In stock

92069

BULB,12V 10W

92069-0106

1

$3.30

In stock

92161

DAMPER,SIGNAL LAMP

92161-0828

1

$6.05

In stock

92172

1

$1.53

In stock

92200

WASHER,SIGNAL LAMP

92200-0370

1
Out of stock

224

1

$3.28

In stock
