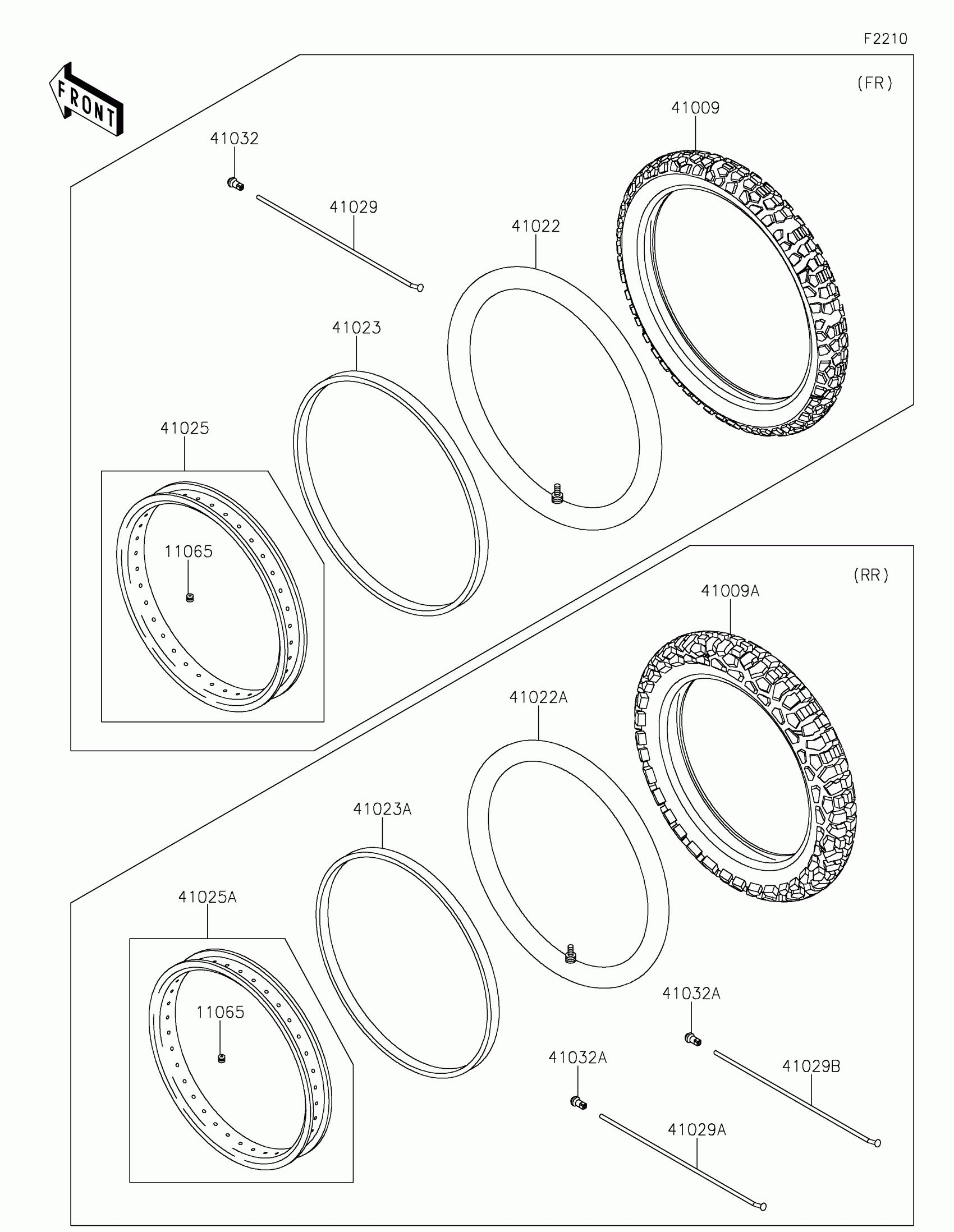

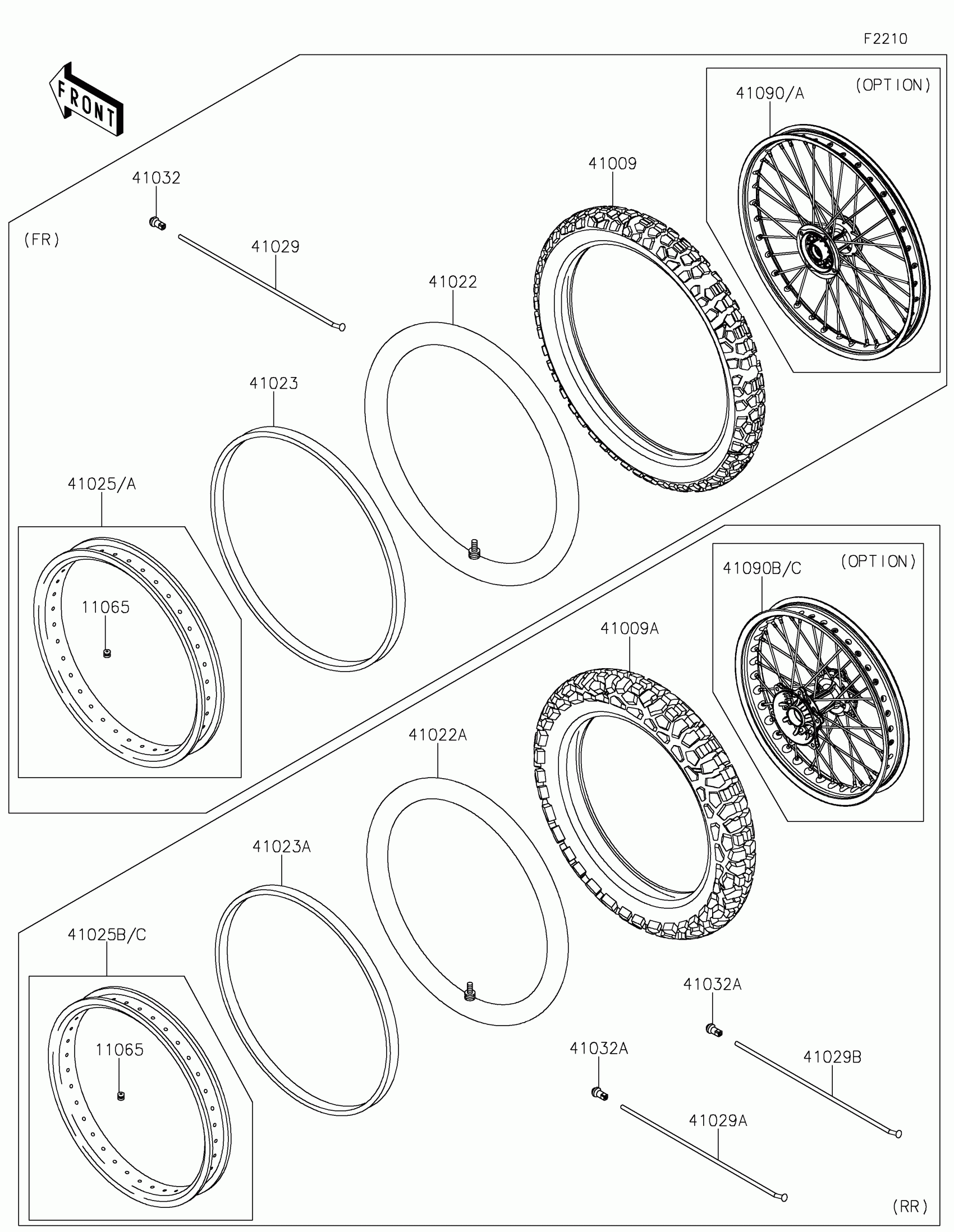

Kawasaki KLX®300 Wheels/Tires Diagram

CAP,BEAD STOPPER

11065-0384

$2.79

TIRE,FR,3.00-21 51P,D605 FG(D)

41009-0781

$148.09

TIRE,RR,4.60-18 63P,D605G(D)

41009-0782

$153.45

TUBE-TIRE,3.00-21(D),SNI

41022-0095

$45.76

TUBE-TIRE,4.60-18(D),SNI

41022-0096

$40.73

BAND-RIM,21XWM1.60-1.85(D)

41023-1144

$10.99

BAND-RIM,18XWM/MT 1.85-2.15(D)

41023-1145

$13.73

RIM,FR,1.60X21,SILVER

41025-0318-WA

$399.71

RIM,FR,1.60X21,BLACK

41025-0318-WC

$381.79

RIM,RR,2.15X18,SILVER

41025-0320-WA

$453.46

RIM,RR,2.15X18,BLACK

41025-0320-WC

$451.53

SPOKE-INNER,FR,228MMX165D

41029-0004

$3.31

SPOKE-INNER,RR,LH,193.1MMX165D

41029-0047

$4.14

SPOKE-INNER,RR,RH,189.1MMX160D

41029-0048

$4.14

NIPPLE-SPOKE

41032-0005

$1.84

NIPPLE-SPOKE

41032-0007

$2.27

WHEEL-SUB ASSY,FR,SILVER

41090-0041-WA

$686.76

WHEEL-SUB ASSY,FR,BLACK

41090-0041-WC

$736.24

WHEEL-SUB ASSY,RR,SILVER

41090-0042-WA

$857.53

WHEEL-SUB ASSY,RR,BLACK

41090-0042-WC

$857.53
