2021 Kawasaki KLX®300 Starter Motor Diagram

← All diagrams

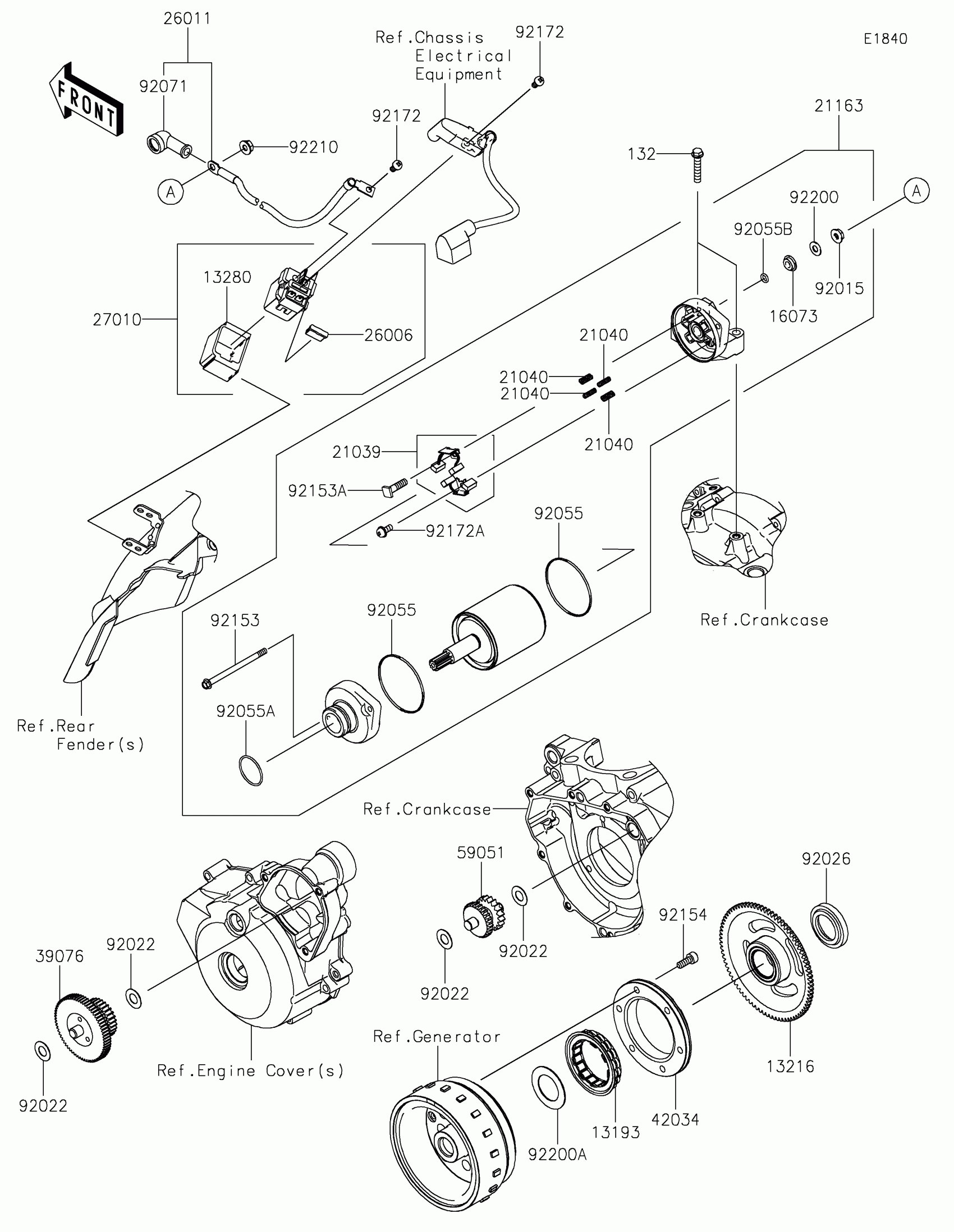

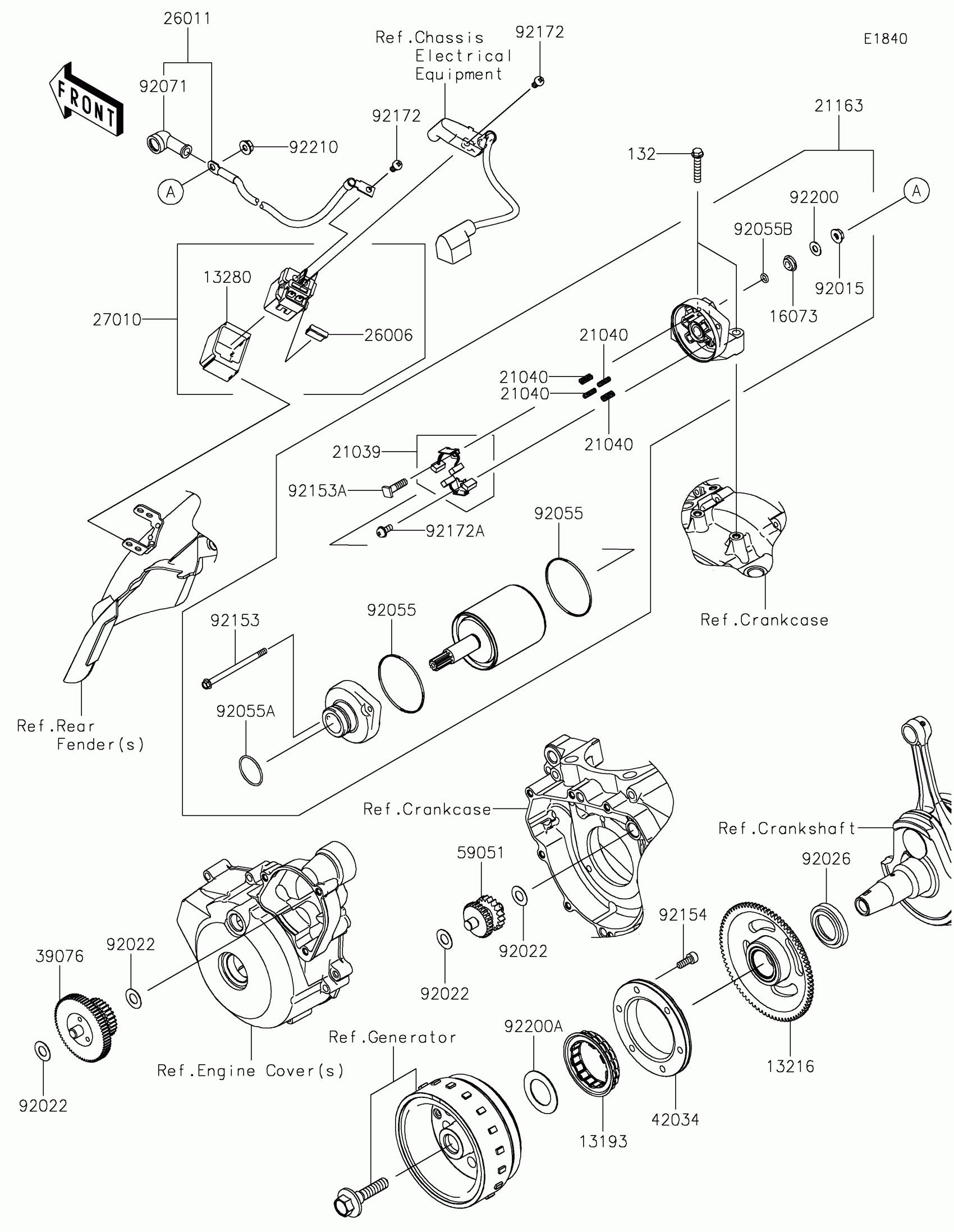

Find the part on the Starter Motor diagram for your 2021 Kawasaki KLX®300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki KLX®300 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13193

CLUTCH-ASSY-ONEWAY

13193-0007

1

$121.73

In stock

13216

1

$199.60

In stock

13280

HOLDER

13280-0816

1

$7.47

In stock

16073

INSULATOR

16073-0053

1

$11.42

In stock

21039

BRUSH,CARBON

21039-0004

1

$120.17

In stock

21040

SPRING-BRUSH

21040-0003

1

$9.47

In stock

21163

STARTER-ELECTRIC

21163-0046

1

$495.36

In stock

26006

1

$4.39

In stock

26011

WIRE-LEAD,STARTER

26011-0782

1

$20.75

In stock

27010

SWITCH

27010-0774

1

$118.15

In stock

39076

1

$187.07

In stock

42034

COUPLING

42034-0048

1

$119.77

In stock

59051

GEAR-SPUR,IDLE

59051-0785

1

$90.72

In stock

92015

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92022

WASHER,10.2X20X0.5

92022-1649

1

$3.43

In stock

92026

SPACER

92026-0762

1
Out of stock

92055

RING-O

92055-0136

1

$6.16

In stock

92055A

RING-O

92055-1276

1

$7.86

In stock

92055B

RING-O,4.5X2.0

92055-1370

1

$4.17

In stock

92071

GROMMET

92071-0705

1

$5.97

In stock

92153

BOLT

92153-1850

1

$11.42

In stock

92153A

BOLT

92153-1866

1

$4.14

In stock

92154

BOLT,SOCKET,6X16

92154-0235

1

$2.41

In stock

92172

1

$1.81

In stock

92172A

SCREW

92172-0334

1

$4.14

In stock

92200

WASHER

92200-0386

1
Out of stock

92200A

WASHER,27.2X44X1

92200-0908

1
Out of stock

92210

NUT,6MM

92210-0188

1
Out of stock

132

1

$1.81

In stock
