2021 Kawasaki KLX®300 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2021 Kawasaki KLX®300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

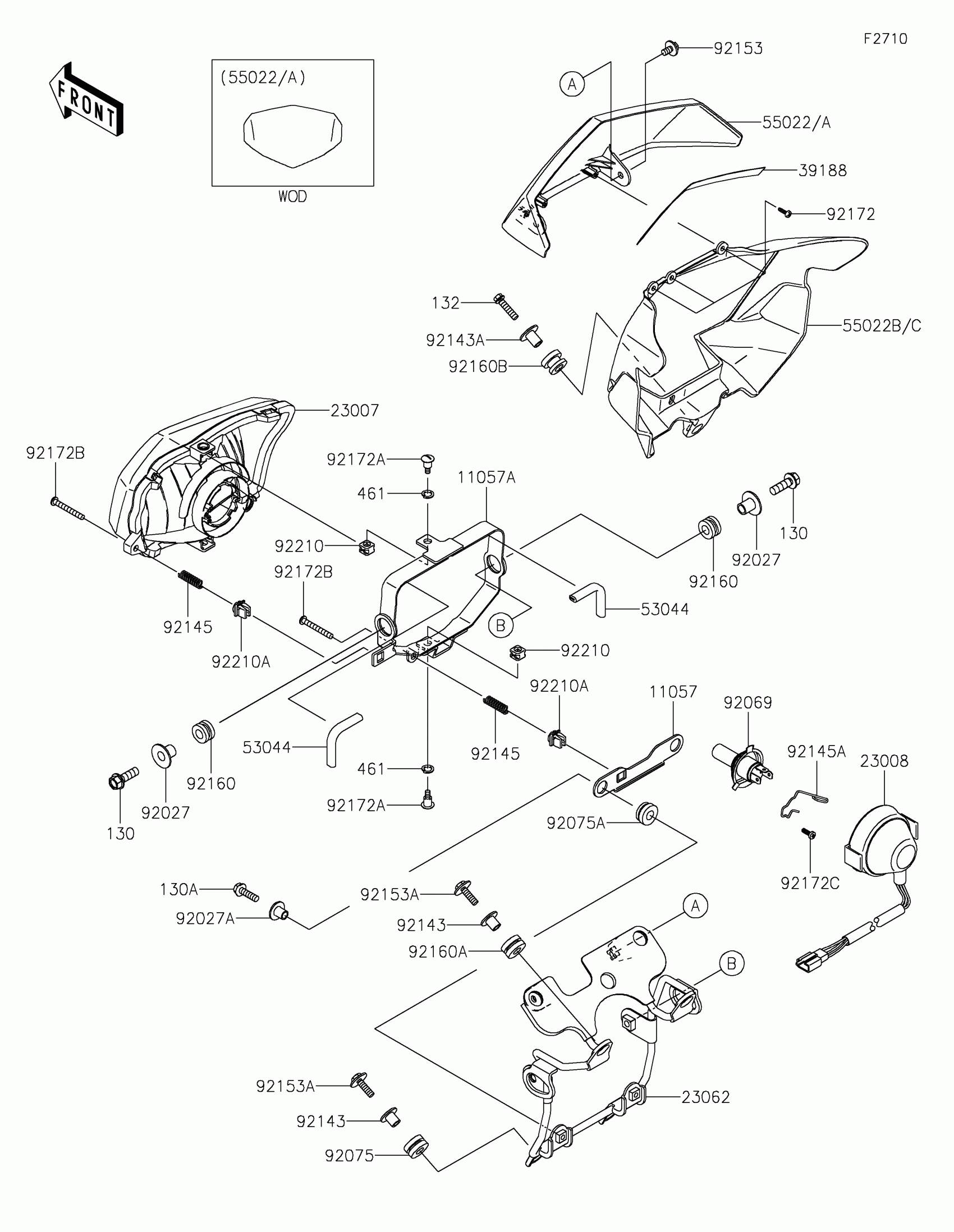

2021 Kawasaki KLX®300 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

1

$39.26

In stock

11057A

1

$14.03

In stock

23007

LENS-COMP,HEAD LAMP

23007-0109

1

$182.30

In stock

23008

1

$84.48

In stock

23062

1

$124.39

In stock

39188

TAPE

39188-0011

1

$8.19

In stock

53044

TRIM,L=90

53044-0033

1

$2.15

In stock

55022

1

$42.47

In stock

55022A

1

$44.44

In stock

55022B

1

$61.65

In stock

55022C

1

$60.57

In stock

92027

1

$8.16

In stock

92027A

1

$4.37

In stock

92069

BULB,12V 60/55W,H4

92069-0050

1

$14.37

In stock

92075

1

$3.72

In stock

92075A

DAMPER

92075-277

1

$2.20

In stock

92143

COLLAR

92143-1353

1

$6.81

In stock

92143A

COLLAR

92143-1960

1

$5.12

In stock

92145

1

$3.24

In stock

92145A

SPRING

92145-0753

1

$7.88

In stock

92153

BOLT,6X12

92153-0503

1
Out of stock

92153A

BOLT,UPSET-WP,6X22

92153-0640

1
Out of stock

92160

DAMPER

92160-1007

1

$4.37

In stock

92160A

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92160B

DAMPER

92160-1615

1

$3.29

In stock

92172

SCREW,TAPPING,4X12

92172-0233

1

$1.20

In stock

92172A

SCREW,5X16.7

92172-0345

1

$1.20

In stock

92172B

SCREW,5X45

92172-0346

1

$1.51

In stock

92172C

SCREW

92172-0456

1

$3.12

In stock

92210

NUT,PLASTIC

92210-0426

1
Out of stock

92210A

NUT,5MM

92210-0427

1
Out of stock

130

BOLT-FLANGED,8X25

130BA0825

1

$2.34

In stock

130A

BOLT-FLANGED,6X22

130BB0622

1

$2.92

In stock

132

1

$2.29

In stock

461

WASHER-SPRING,8MM

461DA0800

1

$0.46

In stock
