2021 Kawasaki KLX®300 Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2021 Kawasaki KLX®300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

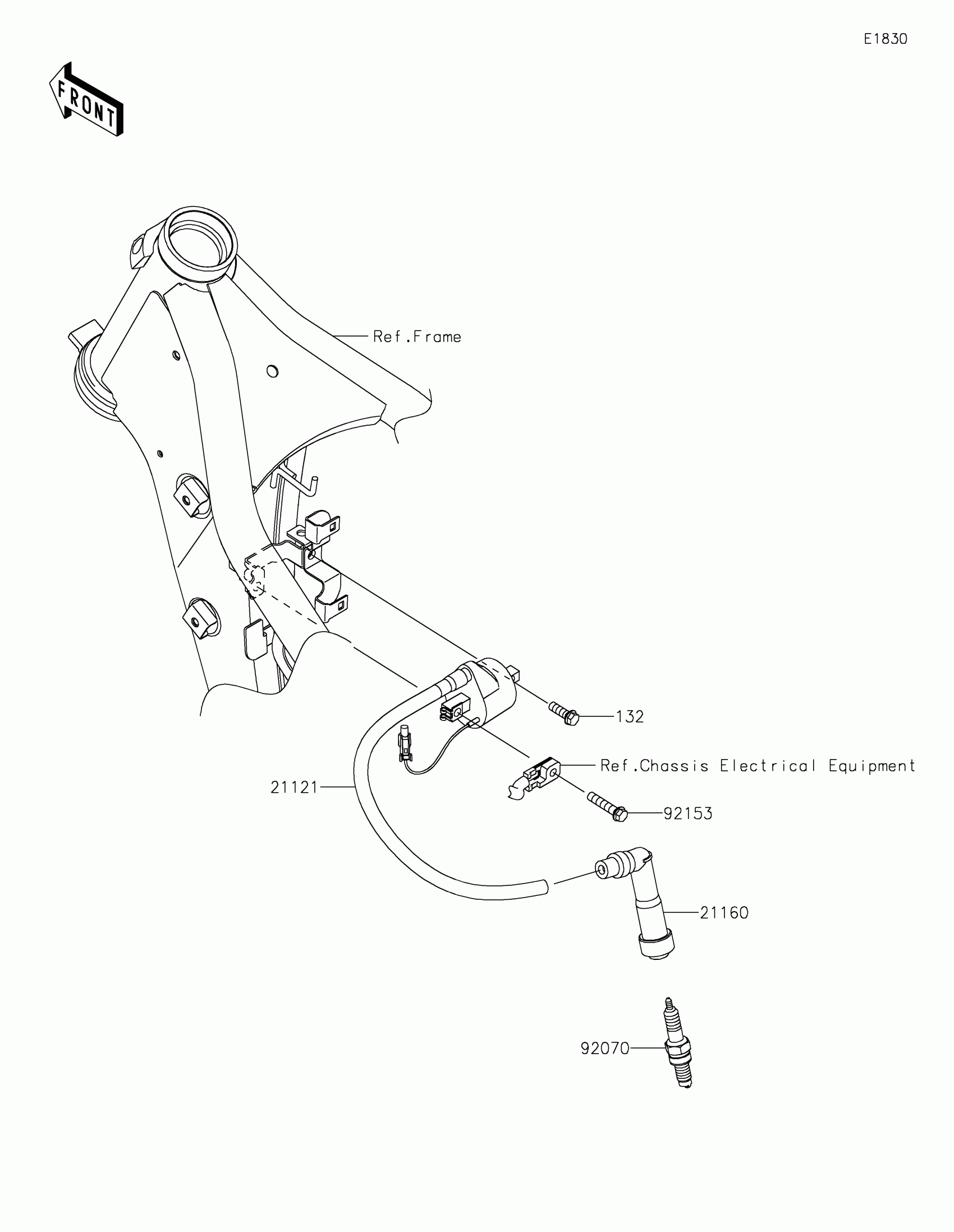

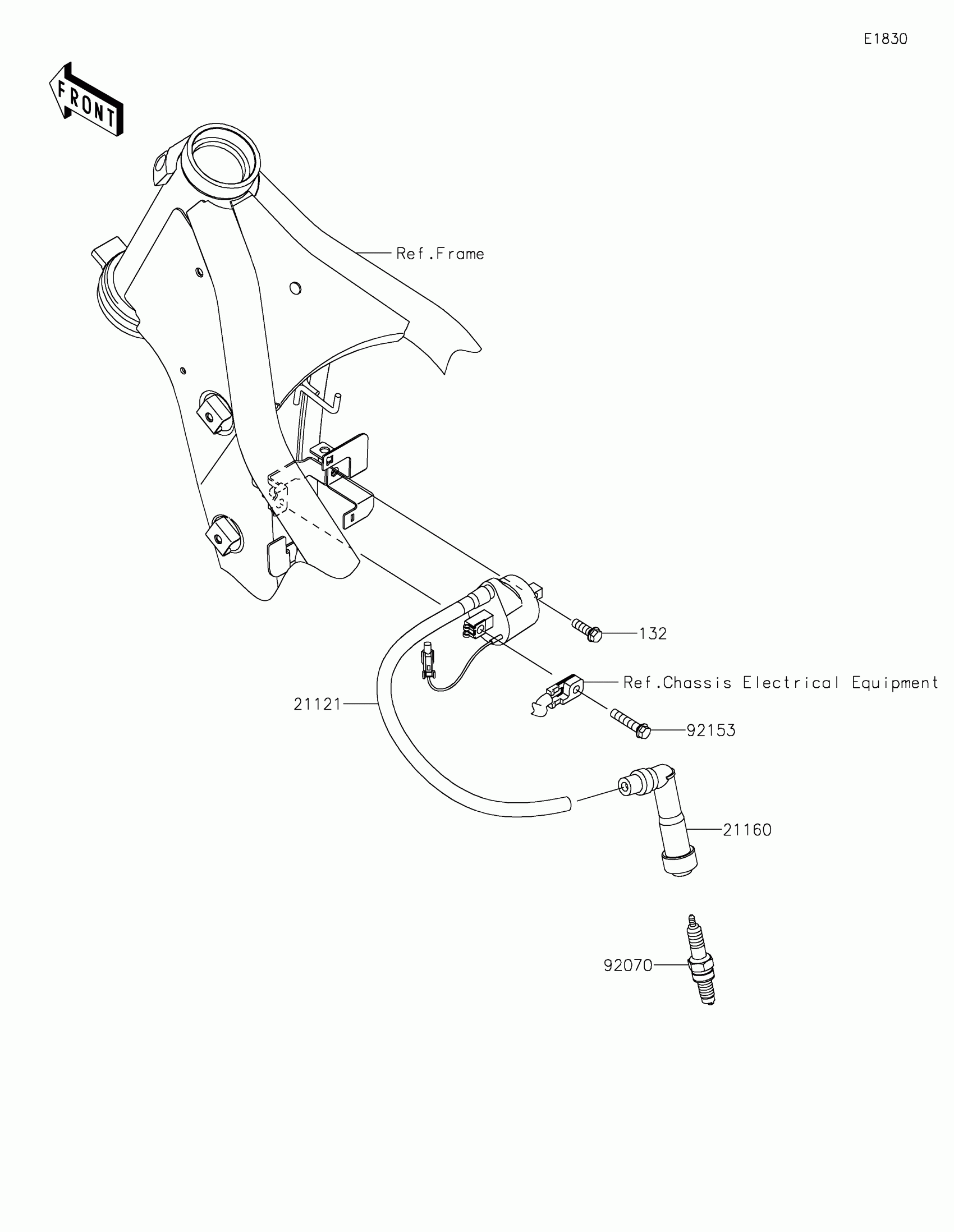

2021 Kawasaki KLX®300 Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21121

COIL-IGNITION

21121-0033

1

$112.47

In stock

21160

CAP-ASSY-PLUG

21160-0019

1

$19.93

In stock

92070

1

$6.44

In stock

92153

BOLT,FLANGED-SMALL,6X28

92153-1309

1
Out of stock

132

1

$3.24

In stock
