2021 Kawasaki KLX®300 Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2021 Kawasaki KLX®300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

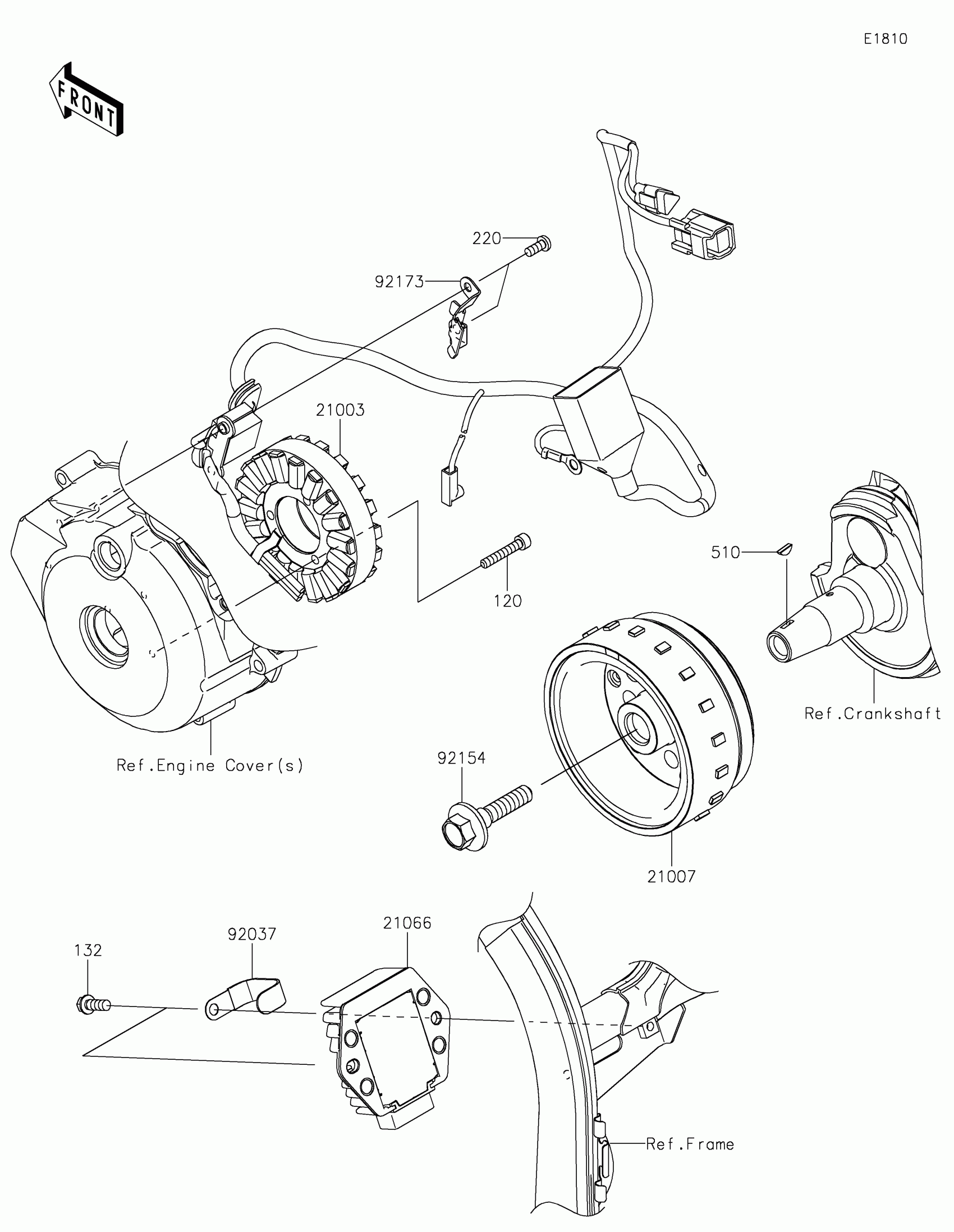

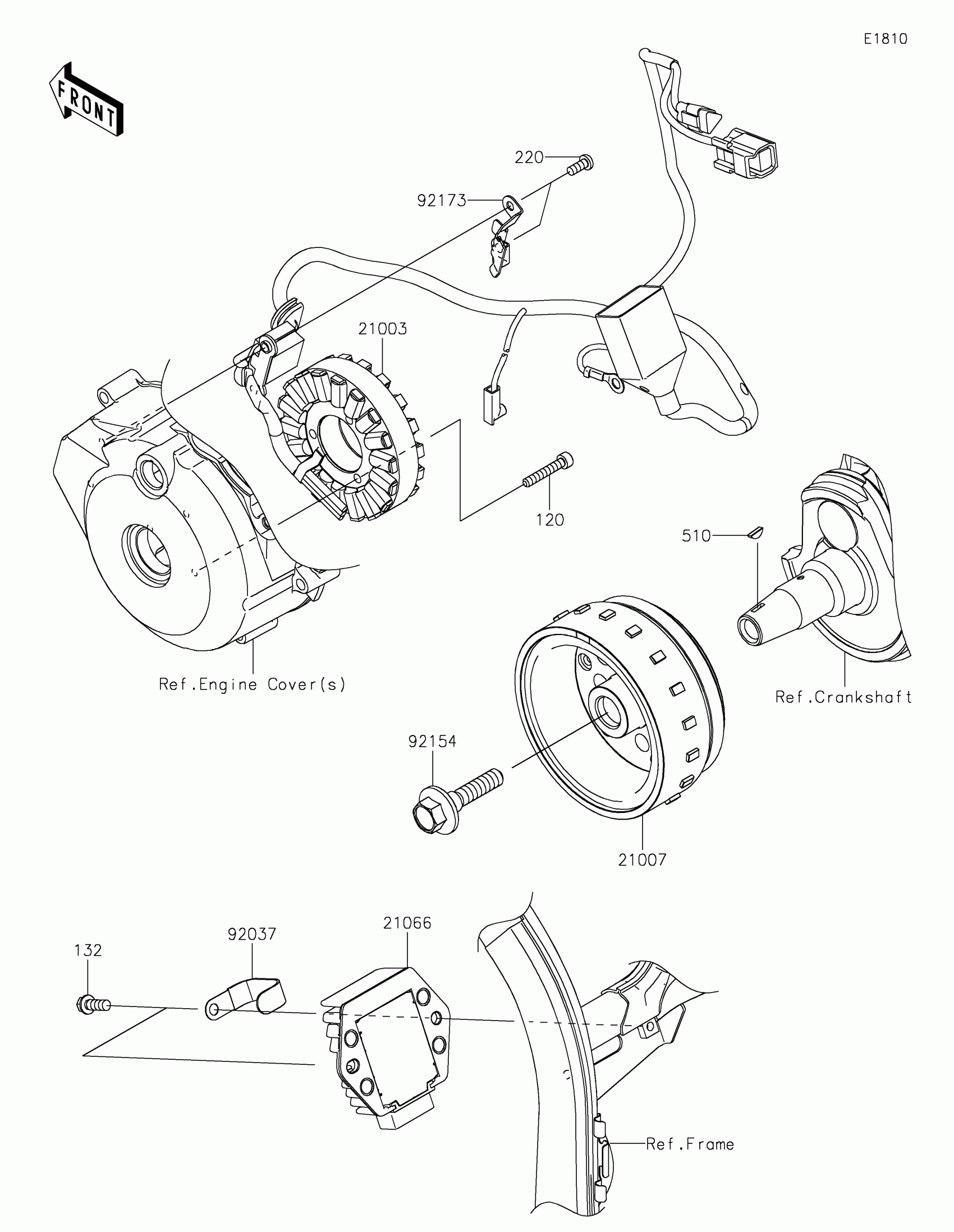

2021 Kawasaki KLX®300 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR

21003-0207

1

$559.55

In stock

21007

ROTOR

21007-0614

1

$652.99

In stock

21066

REGULATOR-VOLTAGE

21066-0781

1

$236.87

In stock

92037

CLAMP

92037-1993

1

$4.37

In stock

92154

BOLT

92154-1309

1

$5.66

In stock

92173

CLAMP

92173-1150

1

$4.61

In stock

120

BOLT-SOCKET,5X30

120CA0530

1

$4.85

In stock

132

1

$1.21

In stock

220

1

$0.51

In stock

510

KEY-WOODRUFF

510A3100

1

$2.17

In stock
