2021 Kawasaki KLX®300 Ignition Switch Diagram

← All diagrams

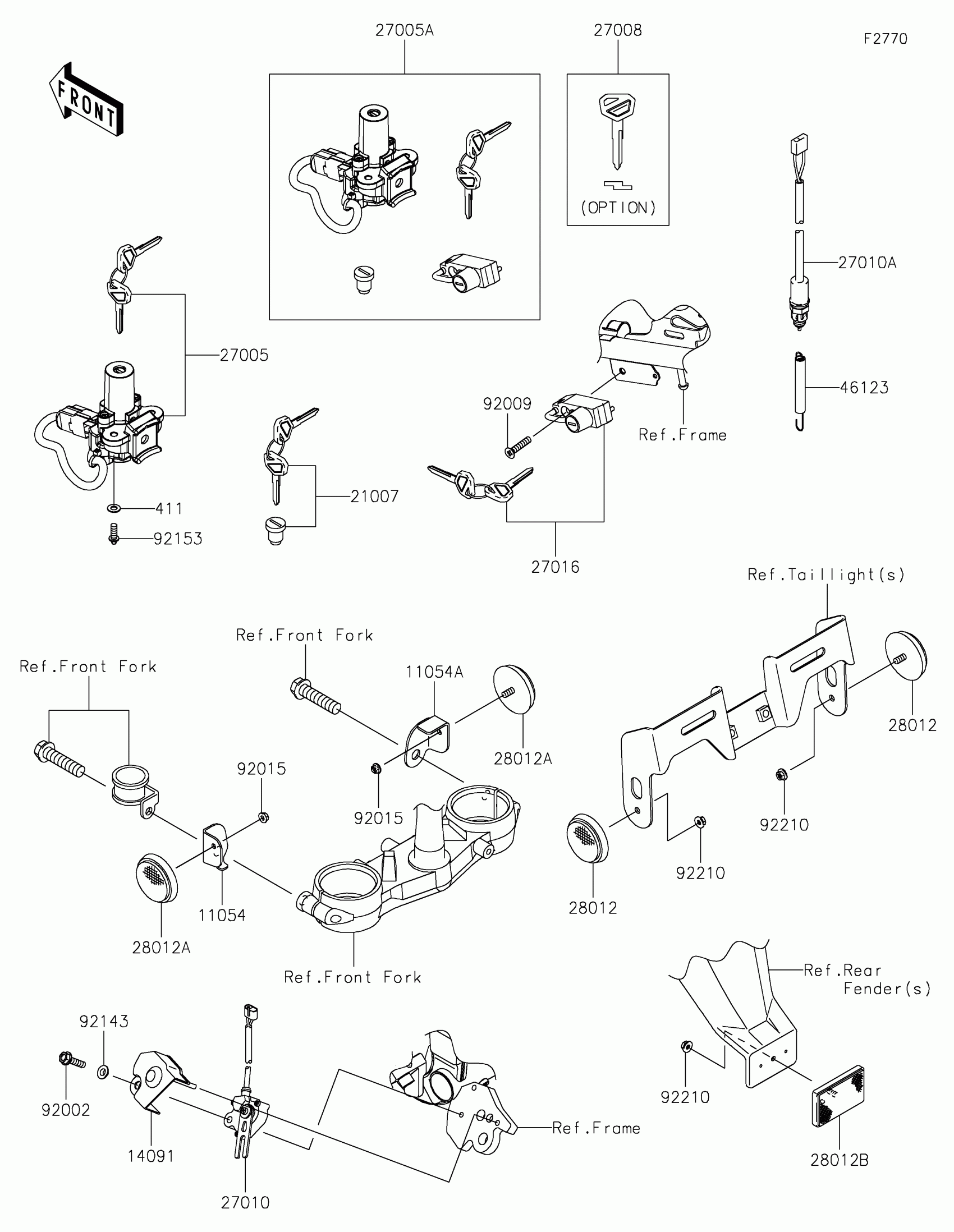

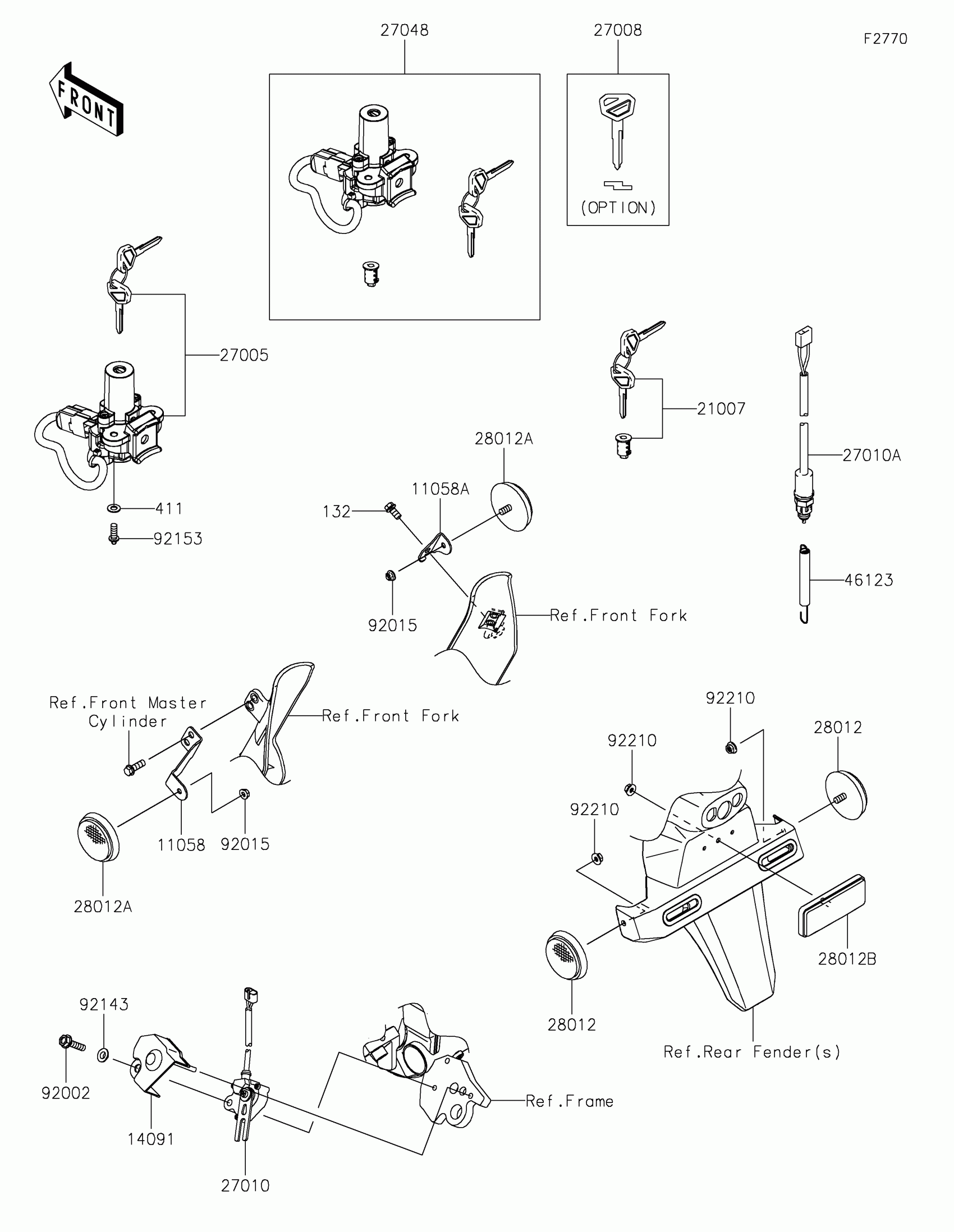

Find the part on the Ignition Switch diagram for your 2021 Kawasaki KLX®300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki KLX®300 Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

1

$11.42

In stock

11054A

1

$11.42

In stock

14091

1

$7.47

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5040

1

$56.30

In stock

27005

1

$151.87

In stock

27005A

1

$265.24

In stock

27008

KEY-LOCK,BLANK

27008-1170

1

$14.13

In stock

27010

SWITCH,SIDE STAND

27010-0097

1

$119.84

In stock

27010A

SWITCH,REAR BRAKE

27010-1489

1

$42.42

In stock

27016

LOCK-ASSY,HELMET

27016-5207

1

$74.62

In stock

28012

REFLECTOR-REFLEX

28012-0002

1

$22.37

In stock

28012A

1

$21.56

In stock

28012B

REFLECTOR-REFLEX

28012-1088

1

$20.82

In stock

46123

1

$5.12

In stock

92002

BOLT,FLANGED,6X25

92002-1582

1
Out of stock

92009

SCREW,6X30

92009-1753

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92143

COLLAR

92143-1331

1

$3.14

In stock

92153

BOLT,TORX,6X16

92153-1426

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

411

WASHER-PLAIN,6MM

411AA0600

1

$2.39

In stock
