2014 Kawasaki KLX®110L Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2014 Kawasaki KLX®110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

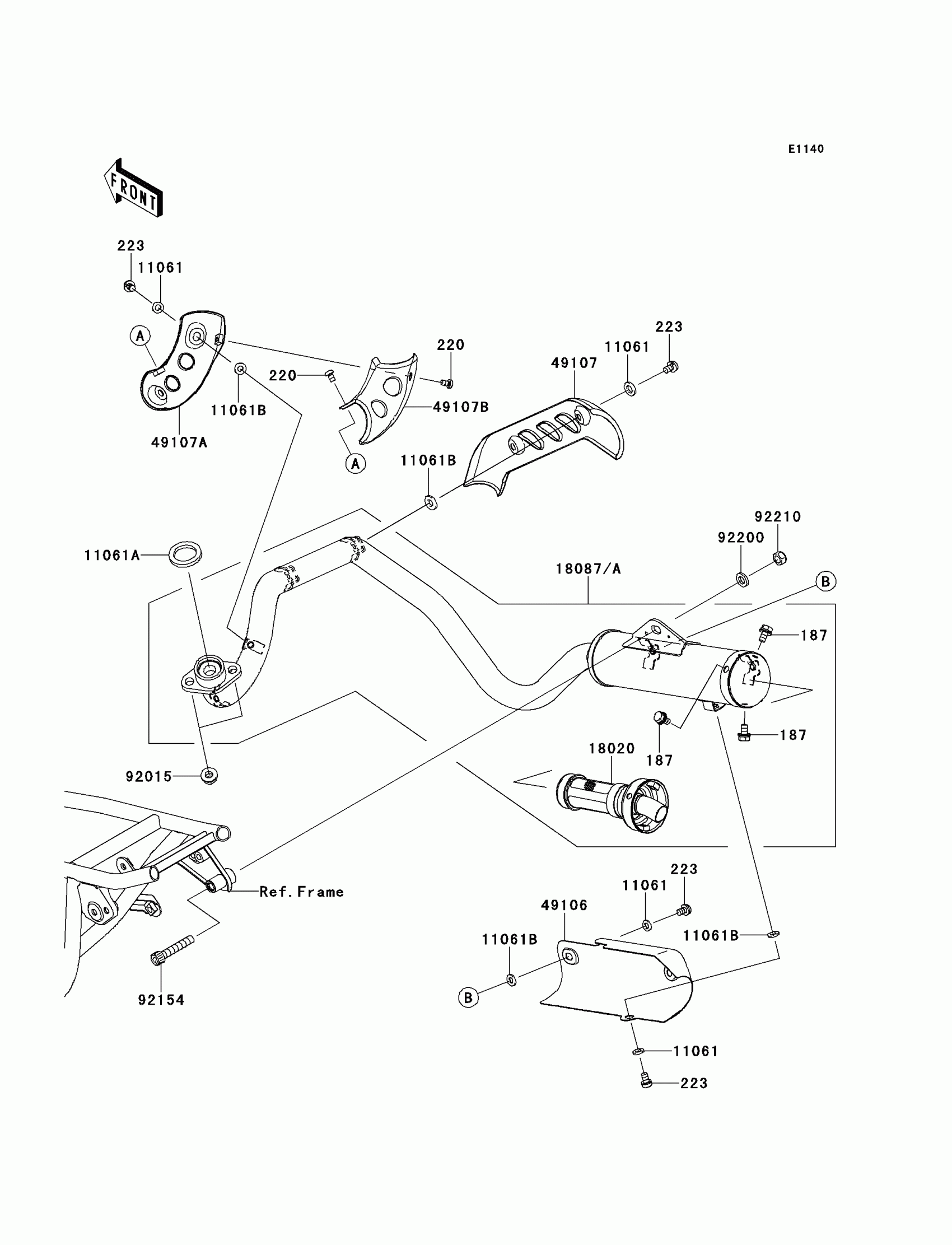

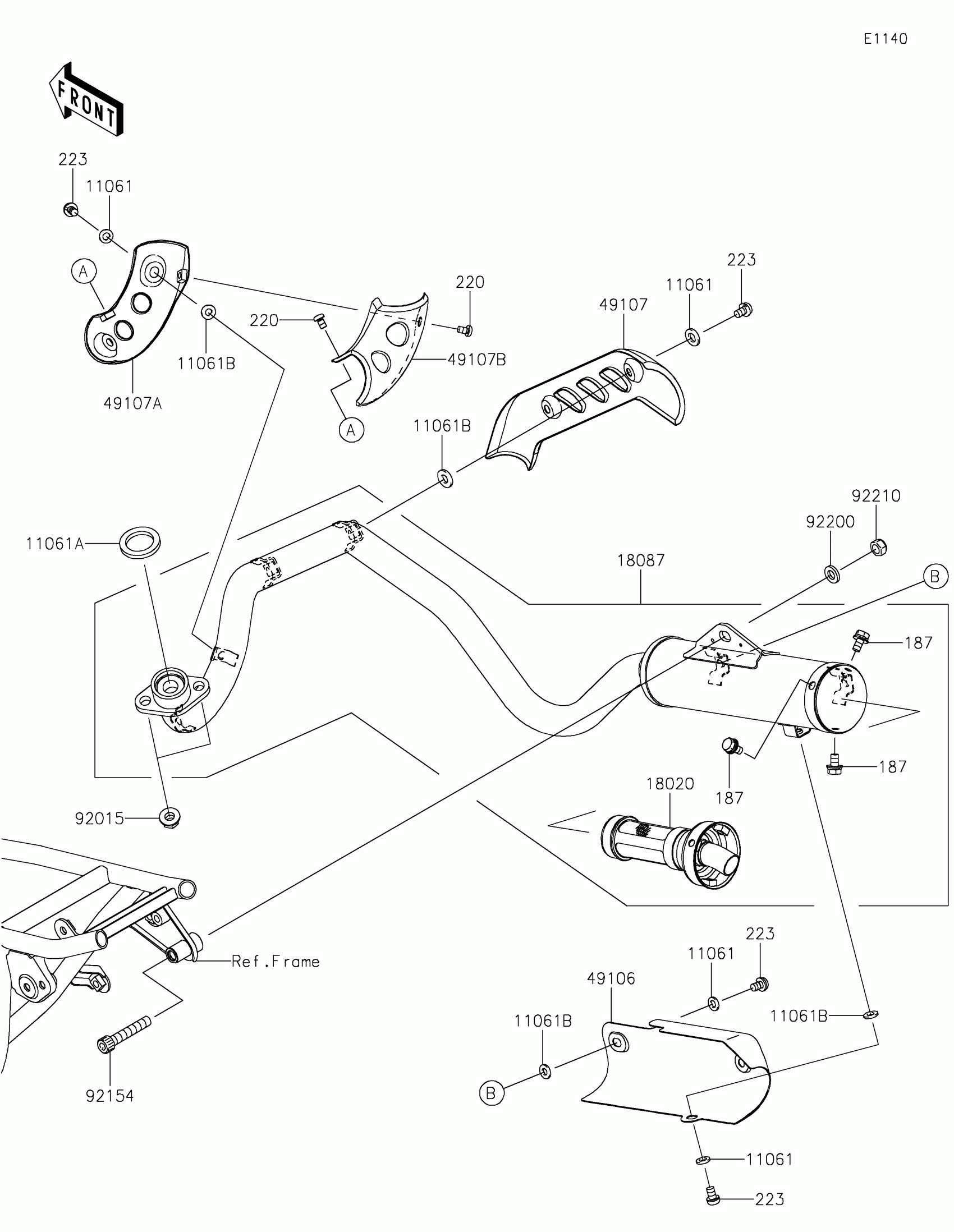

2014 Kawasaki KLX®110L Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

187

1

$1.10

In stock

220

SCREW-PAN-CROS,5X8

220AB0508

1

$0.44

In stock

223

1

$3.28

In stock

11061

GASKET,6.2X11.5X1.5

11061-0372

1
Out of stock

11061A

GASKET,EXHAUST PIPE

11061-1112

1

$3.46

In stock

11061B

GASKET,5.8X12X1.5

11061-1148

1
Out of stock

18020

BAFFLE

18020-0084

1

$154.13

In stock

18087A

MUFFLER

18087-0266

1

$295.90

In stock

49106

COVER-MUFFLER

49106-0094

1

$35.81

In stock

49107

COVER-EXHAUST PIPE

49107-1213

1

$29.97

In stock

49107A

COVER-EXHAUST PIPE

49107-1217

1

$17.03

In stock

49107B

COVER-EXHAUST PIPE

49107-1221

1

$12.22

In stock

92015

NUT,8MM

92015-1402

1

$3.72

In stock

92154

BOLT,SOCKET,8X45

92154-0361

1

$2.92

In stock

92200

WASHER,8.1X15X2.3

92200-0449

1
Out of stock

92210

NUT,LOCK,8MM

92210-0606

1
Out of stock
