1982 Kawasaki KLR250 Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 1982 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

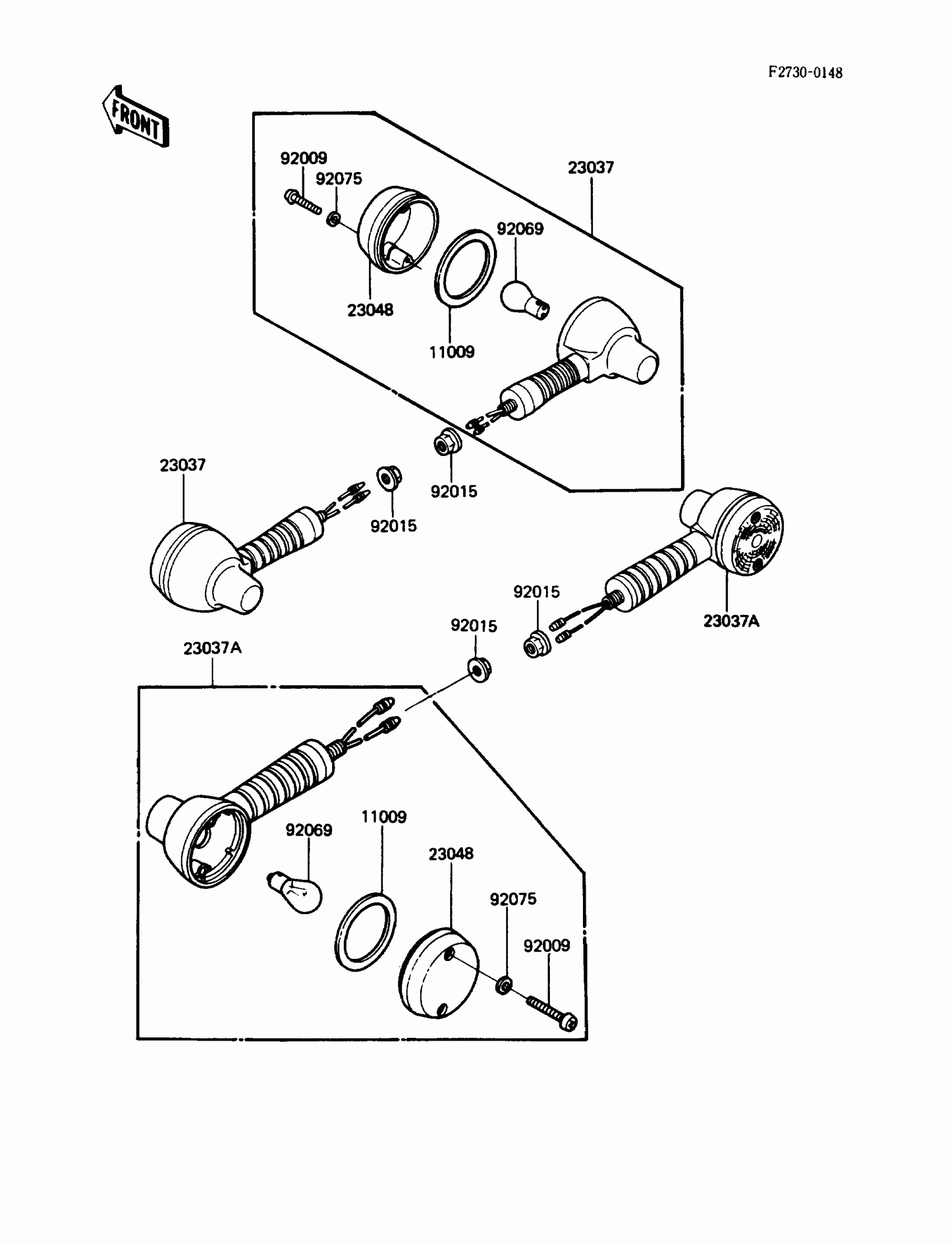

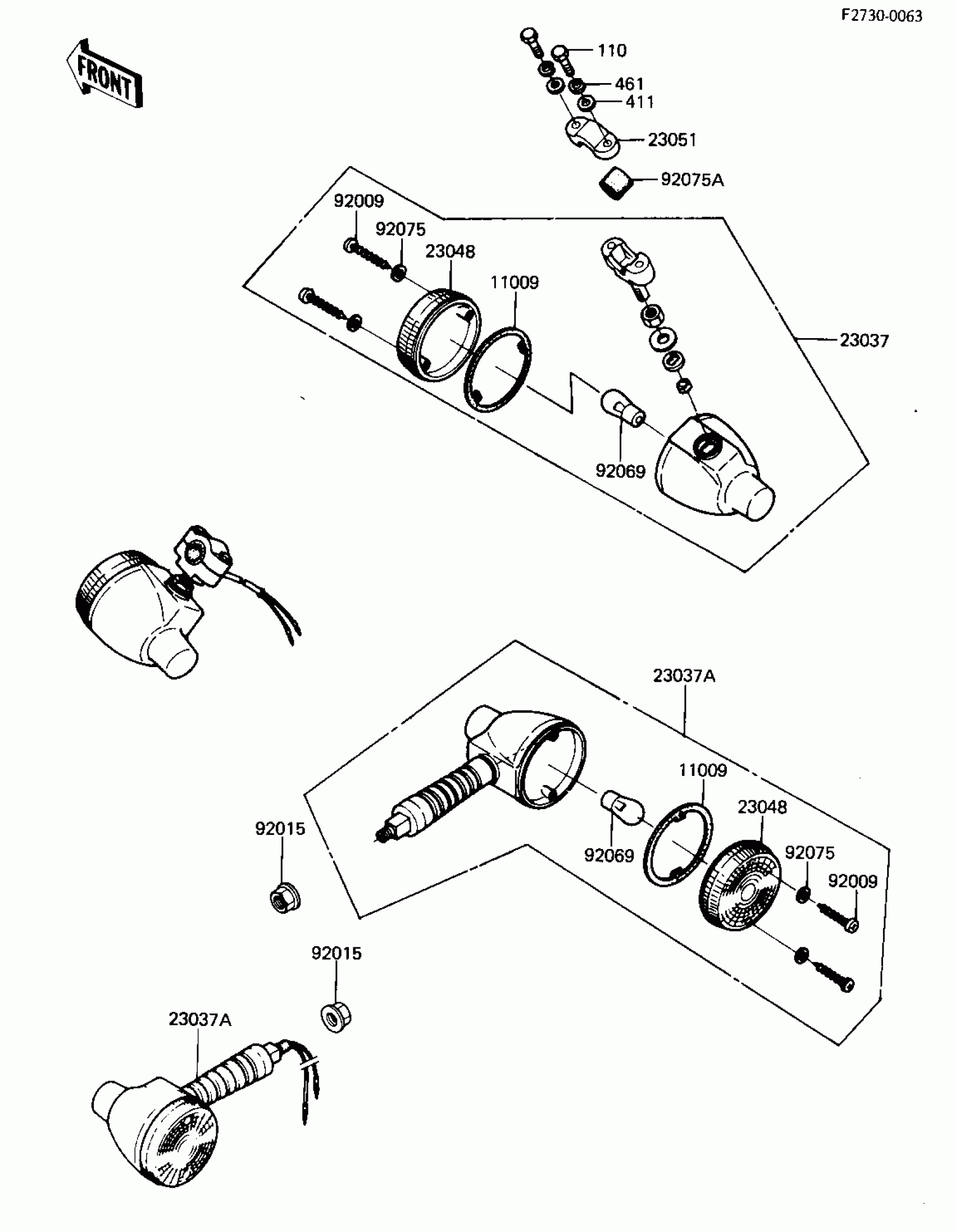

1982 Kawasaki KLR250 Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TURN SIGNAL LAMP LENS

11009-1128

1
Out of stock

23037

LAMP-ASSY-SIGNAL,FR

23037-1039

1
Out of stock

23037A

LAMP ASSY,RR TURN SIG

23037-1061

1
Out of stock

23048

LENS-SIGNAL LAMP

23048-1076

1

$7.74

In stock

23051

BRACKET-SIGNAL LAMP

23051-1018

1
Out of stock

92009

SCREW,TAPPING,4X30

92009-1056

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1428

1

$3.97

In stock

92069

BULB,6V 21CP

92069-056

1

$5.07

In stock

92075

WASHER,PLAIN,4MM

23058-002

1

$2.05

In stock

92075A

DAMPER

23066-003

1
Out of stock

110

BOLT,HEX HEAD,5X30

110B0530A

1
Out of stock

411

WASHER-PLAIN,5MM

411B0500

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock
