1982 Kawasaki KLR250 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1982 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

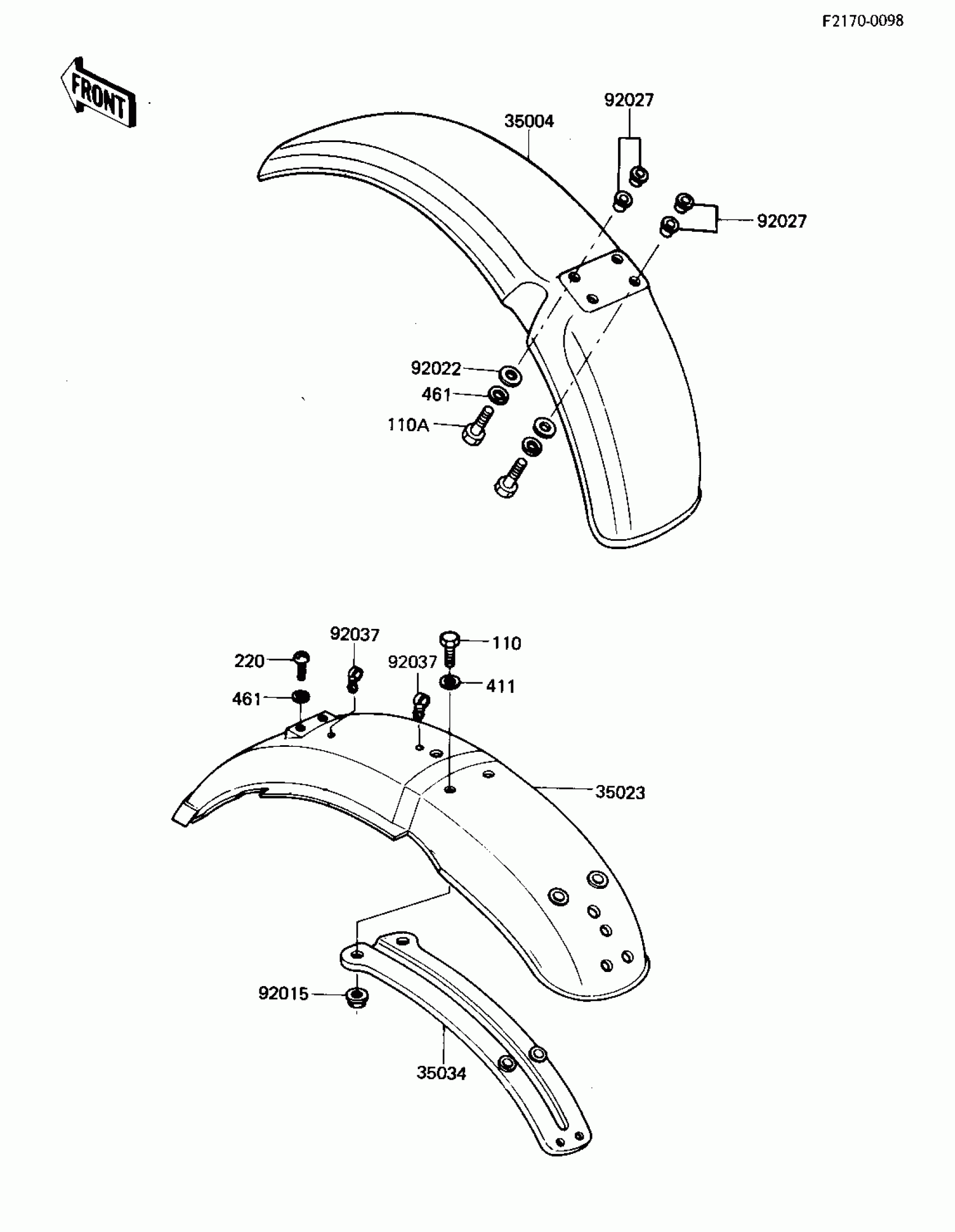

1982 Kawasaki KLR250 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FR,F.RED

35004-1028-6L

1
Out of stock

35023

FENDER-RR,F.RED

35023-1013-6L

1

$97.32

In stock

35034

REINFORCE,RR FENDER

35034-1032

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92027

COLLAR

92027-1166

1

$4.93

In stock

92037

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

110

BOLT-UPSET

112G0618

1
Out of stock

110A

BOLT-UPSET,6X20

112G0620

1
Out of stock

220

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
