1982 Kawasaki KLR250 Chassis Electrical Equipment Diagram

← All diagrams

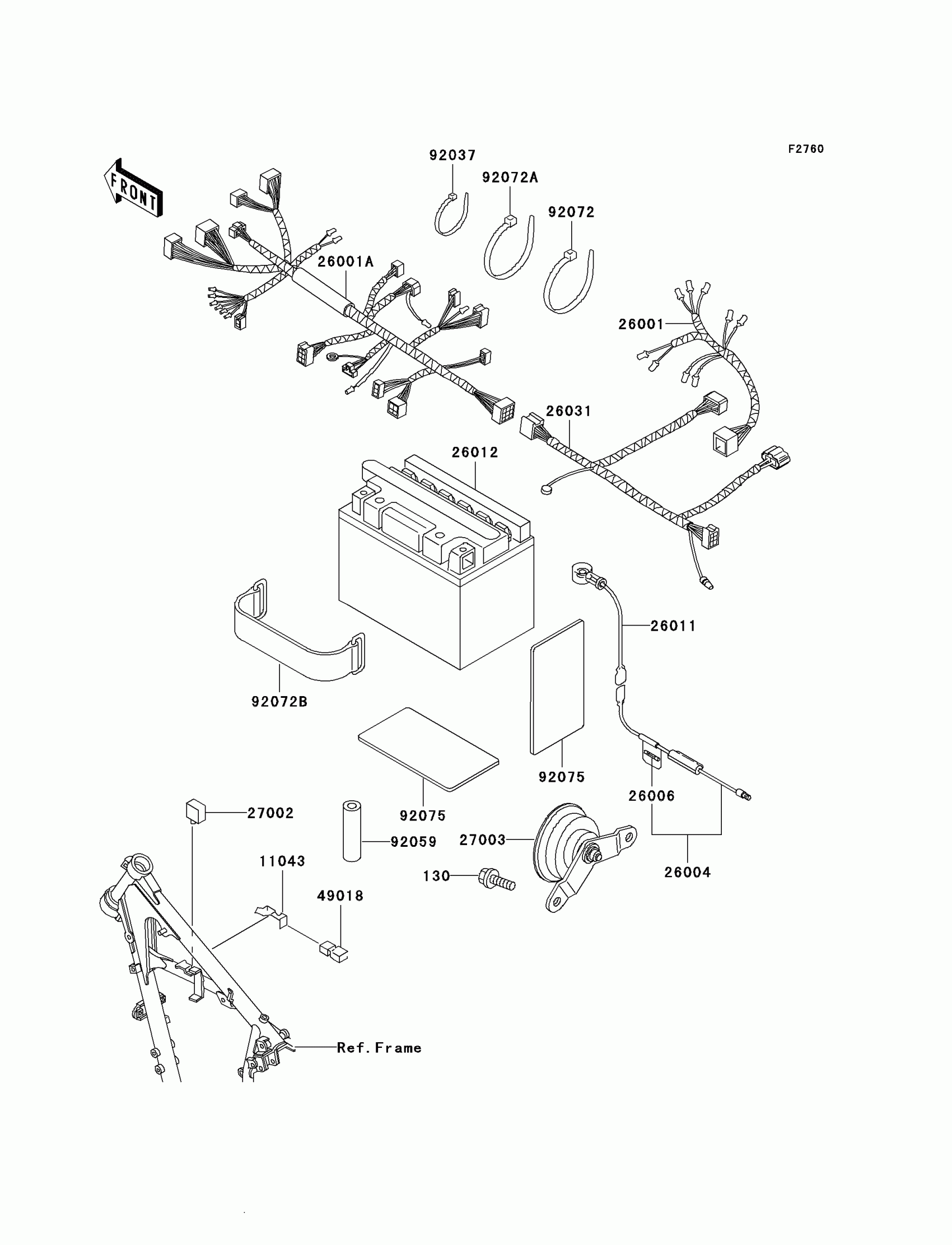

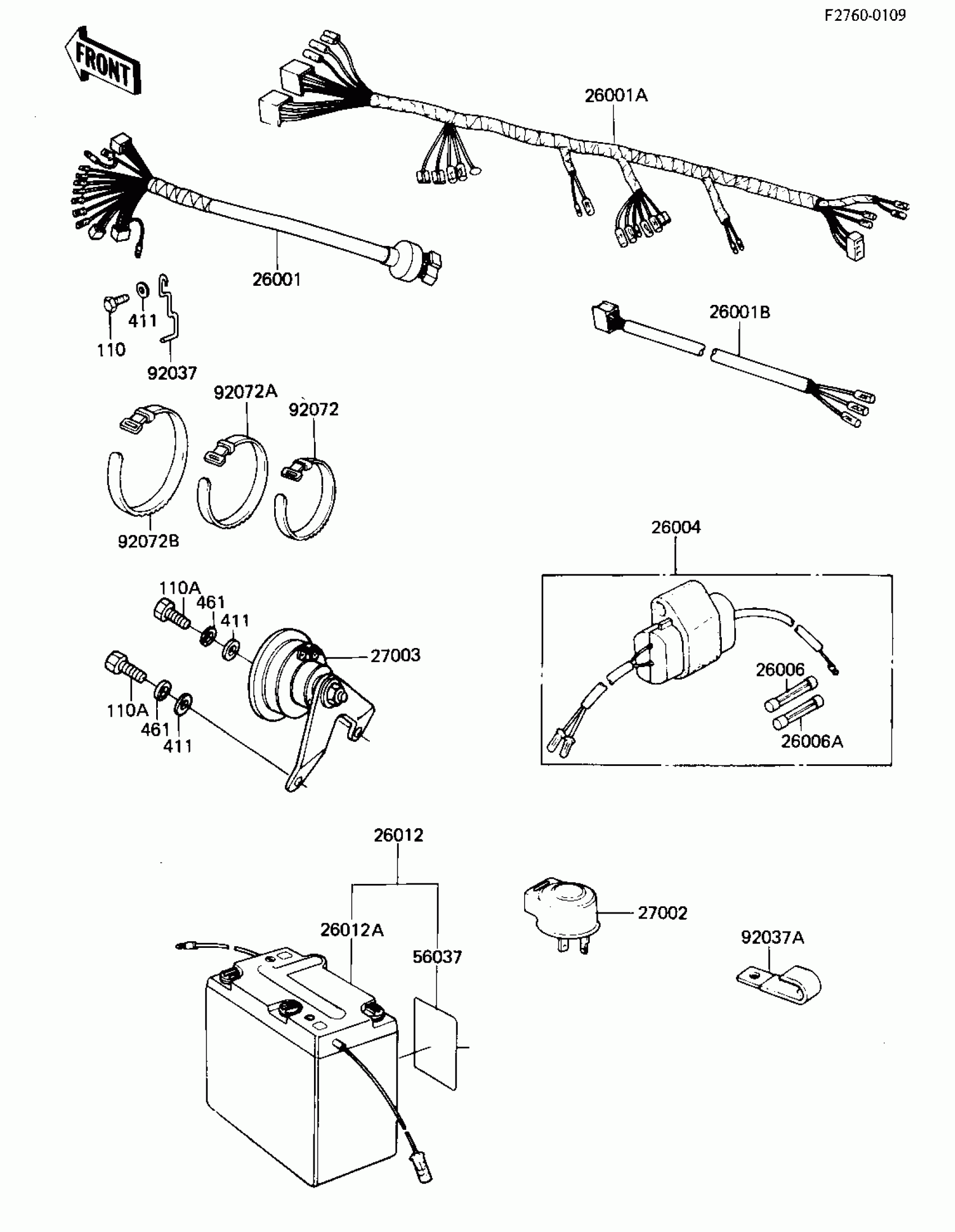

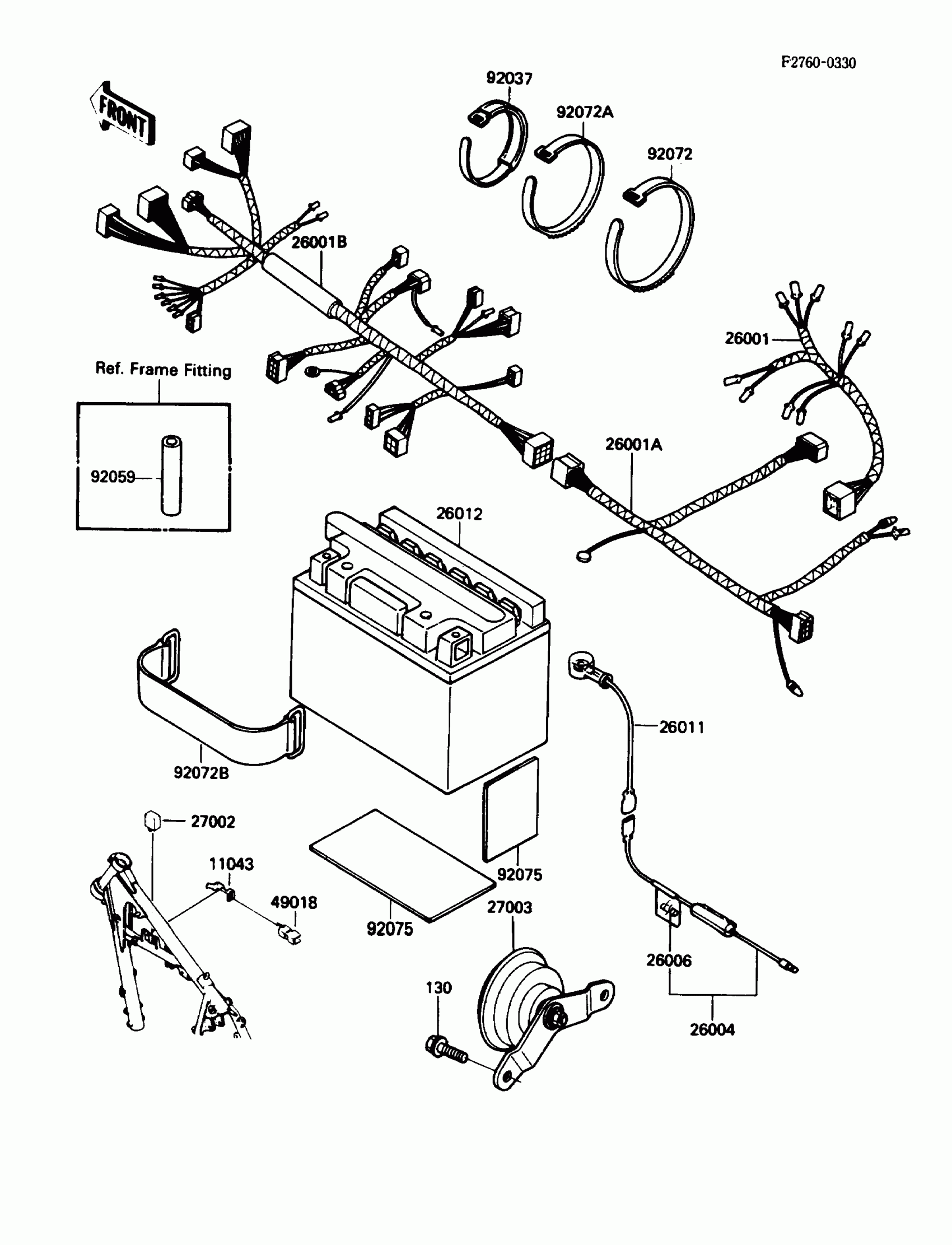

Find the part on the Chassis Electrical Equipment diagram for your 1982 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Kawasaki KLR250 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26001

WIRING HARNESS,FR

26001-1250

1
Out of stock

26001A

HARNESS

26001-1310

1
Out of stock

26001B

WIRING HARNESS,TL LMP

26002-046

1
Out of stock

26004

FUSE-ASSY

26004-1010

1
Out of stock

26006

1

$4.05

In stock

26006A

FUSE,15A,L=30

26006-1003

1

$4.47

In stock

26012

YUA BAT 6N6-1D-2

K26012-034

1

$46.27

In stock

26012A

UNAVAILABLE IN PRICE BOOK

26012-1003

1
Out of stock

27002

RELAY-ASSY,TURN SIGNAL

27002-013

1
Out of stock

27003

HORN

27003-1008

1

$58.90

In stock

56037

LABEL-WARNING,BATTERY

56040-1036

1
Out of stock

92037

1

$5.14

In stock

92037A

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92072

BAND,L=123

92072-030

1

$3.97

In stock

92072A

BAND,L=149

92072-031

1

$3.97

In stock

92072B

BAND,L=218

92072-032

1

$3.97

In stock

110

BOLT-UPSET,6X12

112G0612

1
Out of stock

110A

BOLT-UPSET,6X16

112G0616

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
