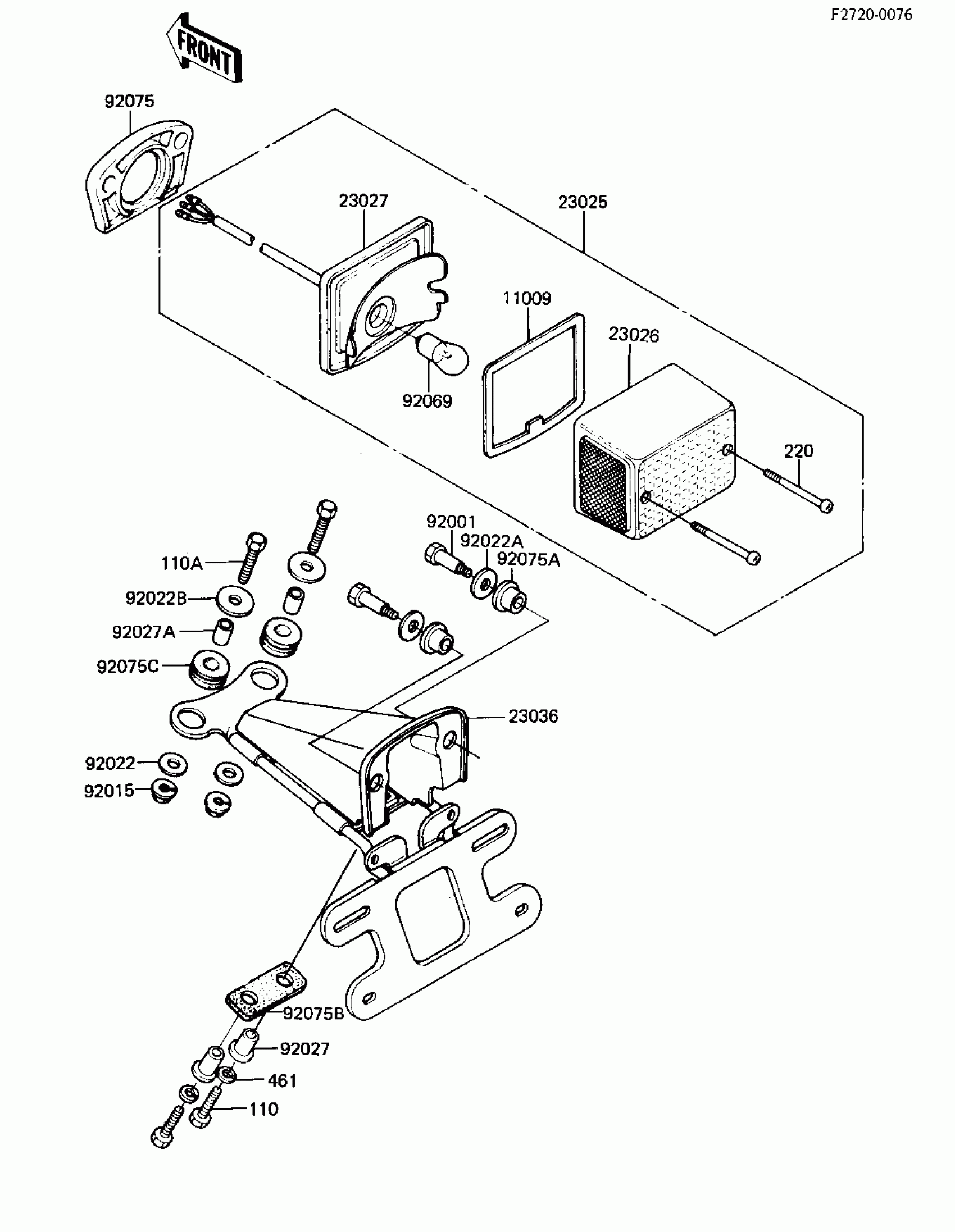

Kawasaki KLR250 TAILLIGHT Diagram

#

Description
Price

11009

GASKET,TAIL LAMP LENS

11009-1078

$7.44

23025

LAMP-TAIL

23025-1032

Unavailable

23026

LENS,TAIL LAMP

23026-1003

Unavailable

23027

BODY-COMP-TAIL LAMP

23027-1020

$96.26

23036

BRACKET,TAIL LAMP

23036-1019

Unavailable

92001

BOLT,

92001-1197

Unavailable

92015

NUT,LOCK 6MM

92017-014

$5.98

92022

WASHER,6.5X20X1.6

92022-125

$1.25

92022A

WASHER,8.5X20X1.6

92022-1561

$3.43

92022B

WASHER,6.5X22X1.6

92022-237

$3.12

92027

COLLAR

92027-1276

$16.47

92027A

COLLAR,6.8X10X12

92027-162

$5.21

92069

BULB,6V 32/3CP

92069-074

Unavailable

92075

DAMPER,TAIL LAMP

92075-1094

Unavailable

92075A

DAMPER

92075-1162

Unavailable

92075B

DAMPER RUBBER

92075-1163

$3.12

92075C

DAMPER RUBBER,RR FENR

92075-209

$3.72

110

BOLT-UPSET

112G0630

Unavailable

110A

BOLT 6X35

110R0635

Unavailable

220

SCREW-PAN-CROS,4X40

220R0440

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
