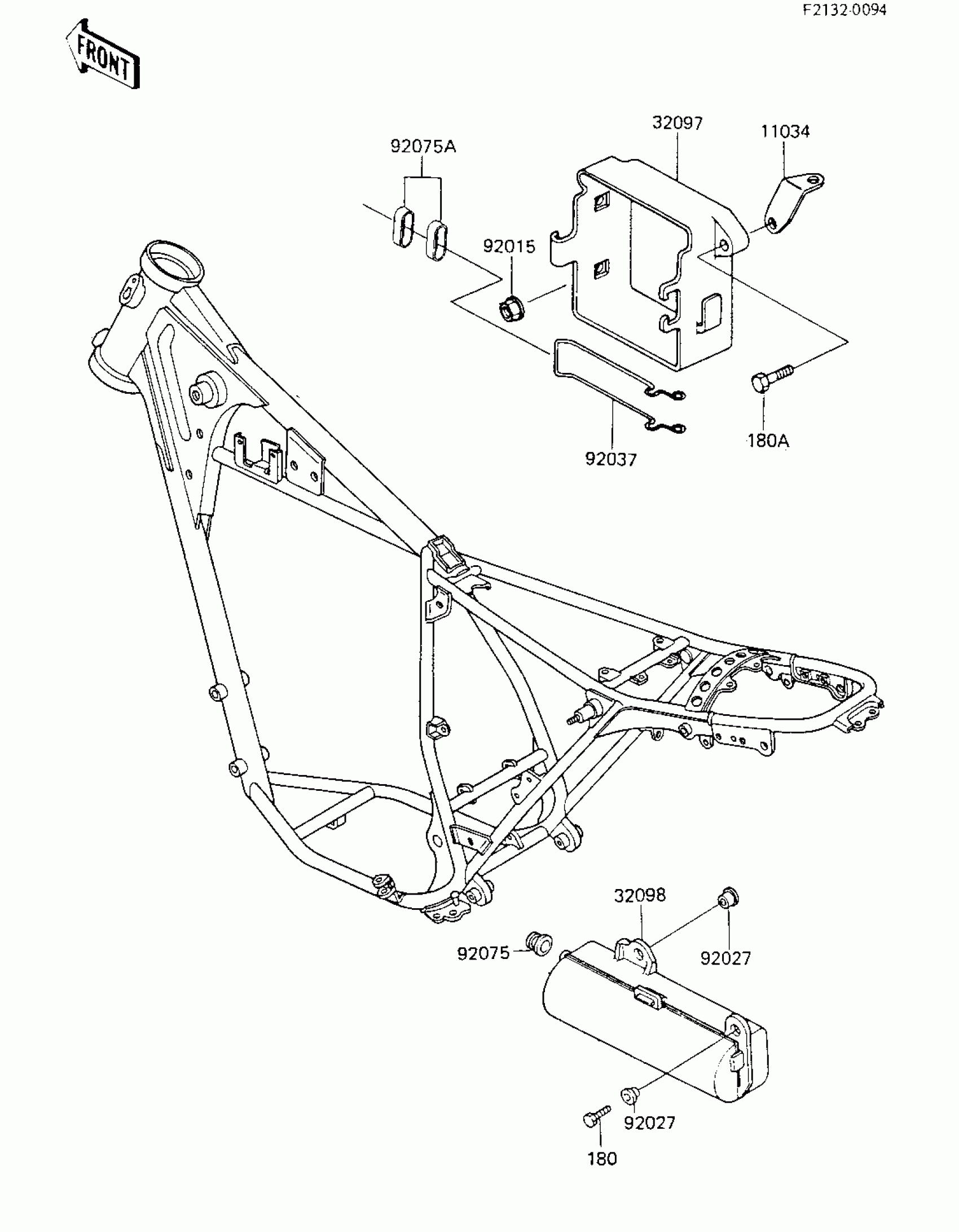

Kawasaki KLR250 BATTERY CASE/TOOL CASE Diagram

#

Description
Price

1

CASE,TOOL

32098-1006

$22.39

1

CASE,TOOL

32098-1006

$22.39

2

CAP,TOOL CASE

11012-1050

Unavailable

2

CAP,TOOL CASE

11012-1050

Unavailable

3

SCREW PAN HEAD 6X12

220B0612

Unavailable

4

WASHER SPRING 6MM

461F0600

Unavailable

5

DAMPER RUBBER

92075-166

Unavailable

6

BAND,BATTERY CASE

92072-1003

Unavailable

7

DAMPER,RUBBER

92075-078

$3.49

8

BOLT 6X22

112B0622

Unavailable

9

WASHER,6.5X20X1.6

92022-125

$1.25

10

COLLAR 6.8X10X10.5

92027-120

$3.97

11

DAMPER,CASE

92075-222

$5.84

12

CASE,BATTERY

32097-1002

$52.98

13

GROMMET

92071-1187

$3.94

14

BOLT-UPSET

112G0618

Unavailable

15

COLLAR

92027-153

$4.93

16

DAMPER RUBBER

92075-051

$2.34
