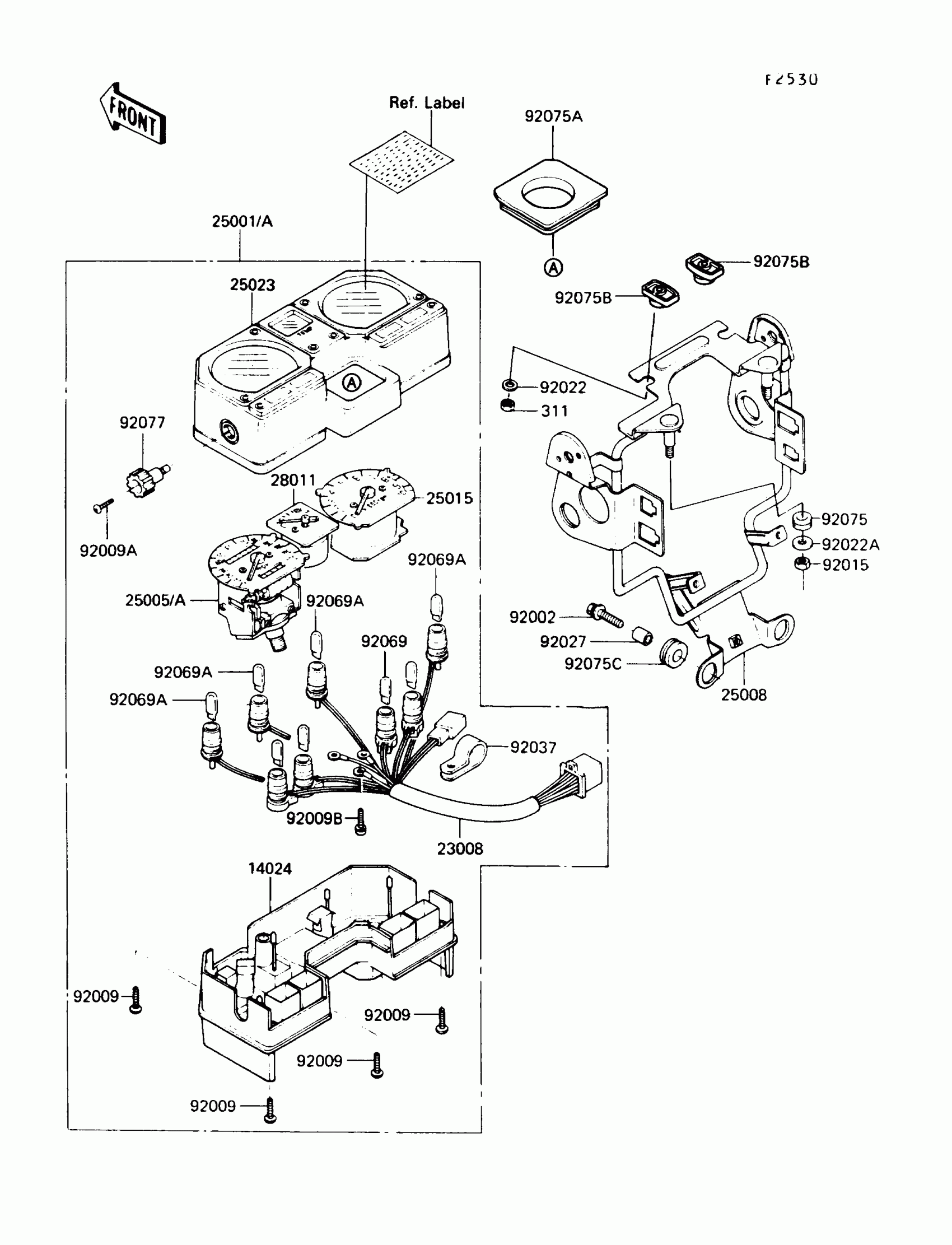

Kawasaki KLR250 METER Diagram

#

Description
Price

1

BRACKET

11034-1442

Unavailable

2

BOLT-UPSET

112G0625

Unavailable

3

WASHER SPRING 6MM

461F0600

Unavailable

4

SPEEDOMETER,KM/H&MPH

25005-1049

$364.90

4

SPEEDOMETER,KM/H

25005-1050

$296.35

5

COVER,METER

14025-1075

Unavailable

6

SOCKET ASSY,SPEEDOMET

25010-021

$19.29

7

DAMPER,METER

25019-023

$3.42

8

NUT-HEX

311B0500

$0.51

9

BOLT,HEX HEAD,6X14

92003-204

Unavailable

10

WASHER,6M/M,METER

92022-1039

$3.78

11

WASHER,5.2X16X1.2

92022-263

$1.41

12

BULB,6V 3W,CLEAR

92069-053

$3.33

13

DAMPER,METER

92075-1102

Unavailable

14

BRACKET,METER

25008-1009

$45.63

15

NUT 6MM

311B0600

Unavailable

16

NUT,FLANGED,6MM

92015-1078

Unavailable

17

WASHER,6.5X20X1.6

92022-125

$1.25

18

COLLAR

92027-241

$5.21

19

DAMPER

92075-024

$3.49

20

DAMPER RUBBER,RR FENR

92075-209

$3.72
