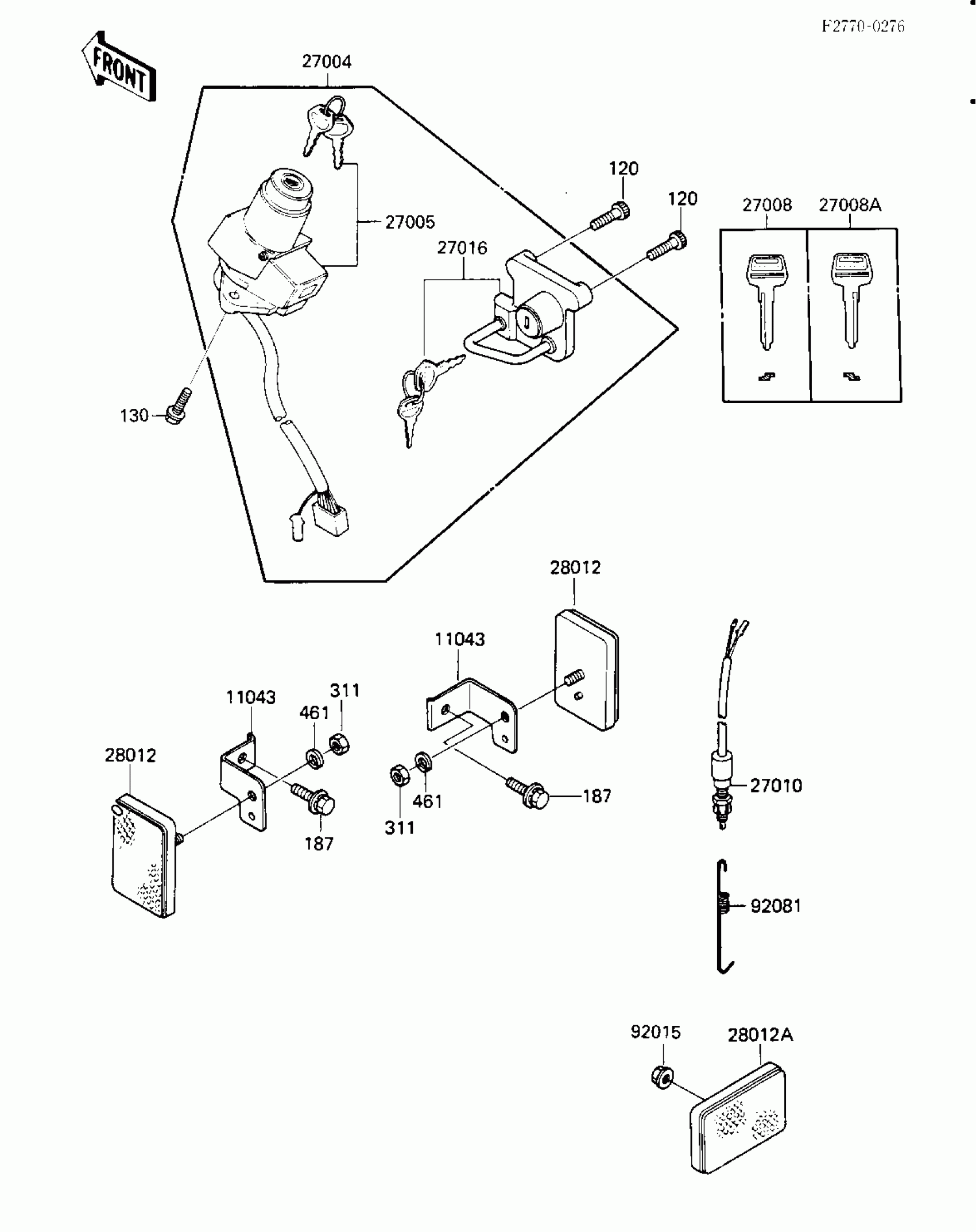

Kawasaki KLR250 IGNITION SWITCH/LOCKS/REFLECTORS Diagram

#

Description
Price

1

KEY-LOCK,BLANK

27008-1024

$20.31

2

KEY-LOCK,BLANK

27008-1025

$20.31

3

KEY,BLANK

27008-1026

Unavailable

4

KEY,BLANK

27008-1027

$16.97

5

SWITCH,REAR BRAKE

27010-1019

$37.98

6

SPRING,BRAKE LAMP SWITCH

27011-017

$9.73

7

BOLT 6X22

112B0622

Unavailable

8

WASHER SPRING 6MM

461F0600

Unavailable

9

SWITCH ASSY,IGNITION

27005-1025

Unavailable

10

WASHER,6.5X20X1.6

92022-125

$1.25

11

COLLAR

92027-241

$5.21

12

DAMPER RUBBER,RR FENR

92075-209

$3.72

13

LOCK ASSY,HELMET

27016-5032

$55.22

14

LOCK-ASSY,STEERING

27016-042

$46.56

15

CAP,STEERING LOCK

11012-1134

$5.95

16

SPRING,STEERING LOCK

27032-001

Unavailable

17

SCREW,3.51MM

92008-007

$3.27

18

WASHER,WAVE

92097-003

$3.57

19

REFLECTOR-REFLEX,FR

28012-016

$21.56

20

DAMPER,REFLECTOR

92094-011

$4.08

21

REFLECTOR-REFLEX,RR

28012-1005

Unavailable

22

NUT-HEX

311B0500

$0.51

23

WASHER-PLAIN,5MM

411B0500

Unavailable

24

WASHER SPRING 5MM

461F0500

Unavailable

25

LOCK ASSY

27004-5042

$94.54
