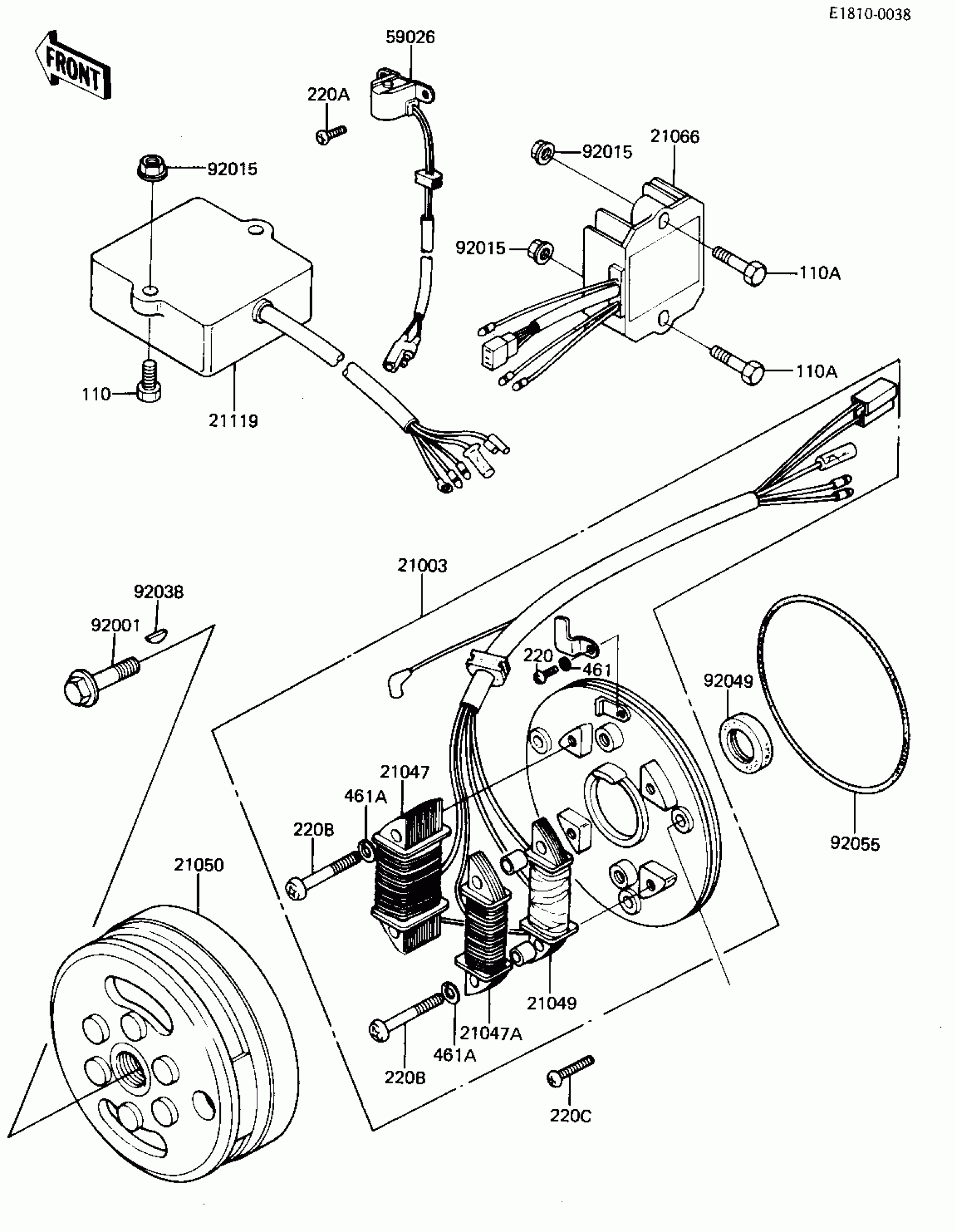

Kawasaki KLR250 IGNITION/GENERATOR/REGULATOR Diagram

#

Description
Price

1

BOLT-UPSET 6X14

112B0614

Unavailable

2

NUT,FLANGED,6MM

92015-1078

Unavailable

3

FLYWHEEL,MAGNETO

21050-1017

$500.06

4

STATOR ASSY,MAGNETO

21003-1034

$418.96

5

COIL,EXCITING

21049-1008

$129.83

6

COIL,LIGHTING"A"

21047-1011

$135.67

7

SCREW PAN HEAD 4X6

220B0406

$1.46

8

WASHER SPRING 4MM

461F0400

Unavailable

9

SCREW-PAN-CROS

220B0535

$2.94

10

WASHER SPRING 5MM

461F0500

Unavailable

11

COIL,LIGHTING"B"

21047-1012

$135.67

12

REGULATOR,VOLTAGE

21066-1010

Unavailable

13

IGNITER

21119-1006

$895.33

14

SCREW PAN HEAD 6X25

220B0625

Unavailable

15

SCREW-PAN-CROS

220B0514

Unavailable

16

WASHER SPRING 5MM

461F0500

Unavailable

17

COIL,PULSING

59026-1005

Unavailable

18

BOLT,10X40

92001-1201

$8.44

19

KEY,WOODRUFF

92038-001

$3.94

20

OIL SEAL,S-27408-LHS

92049-1004

$9.03

21

"O" RING,MAGNETO BASE

92055-1006

Unavailable

22

BOLT-UPSET

112G0625

Unavailable
