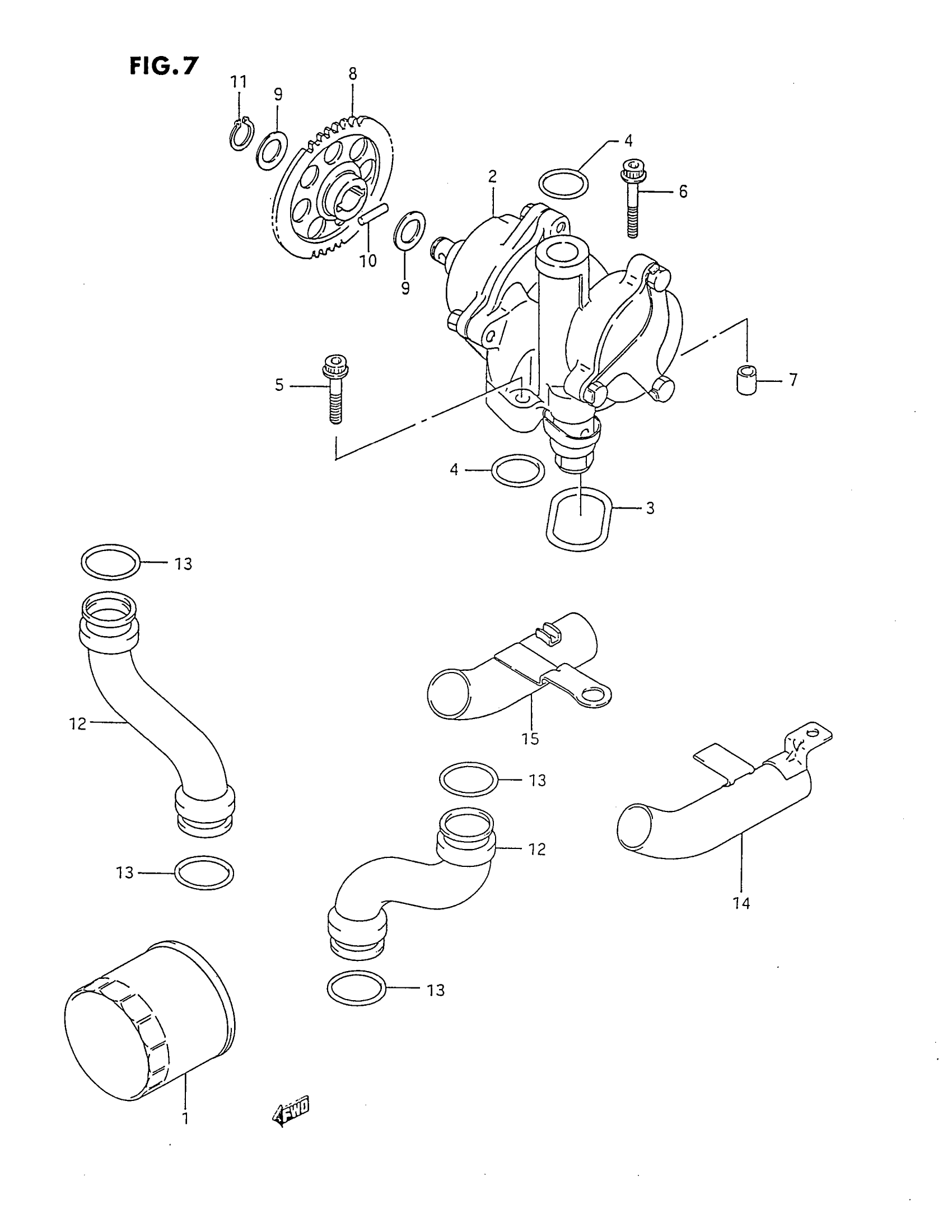

Suzuki GSX750FV (1997) OIL PUMP Diagram

#

Description
Price

1

FILTER, ENGINE OIL This part replaces 16510-06B01.

16510-07J00

$11.99

2

PUMP ASSY, ENGINE OIL

16400-06B20

Unavailable

3

O RING, OIL PUMP

16491-27A01

$10.51

4

O RING (D:3.2,ID:17.8)

09280-18009

$5.26

5

BOLT This part replaces 07130-06303.

07130-0630B

$3.04

6

BOLT This part replaces 07130-06353.

07130-0635B

$3.04

7

PIN

04211-09129

$1.64

8

GEAR, OIL PUMP DRIVEN

16331-06B01-0B1

Unavailable

9

WASHER

08221-12205

$2.50

10

PIN

09261-05006

$1.46

11

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.77

12

PIPE, OUTLET

16481-17C00

Unavailable

13

O RING (D:3.7,ID:21.7)

09280-22016

$5.04

14

PIPE, OIL UNDER, LH

16530-27A02

Unavailable

15

PIPE, OIL UNDER, RH

16540-27A02

Unavailable
