1997 Suzuki GSX750FV Cylinder Head Diagram

← All diagrams

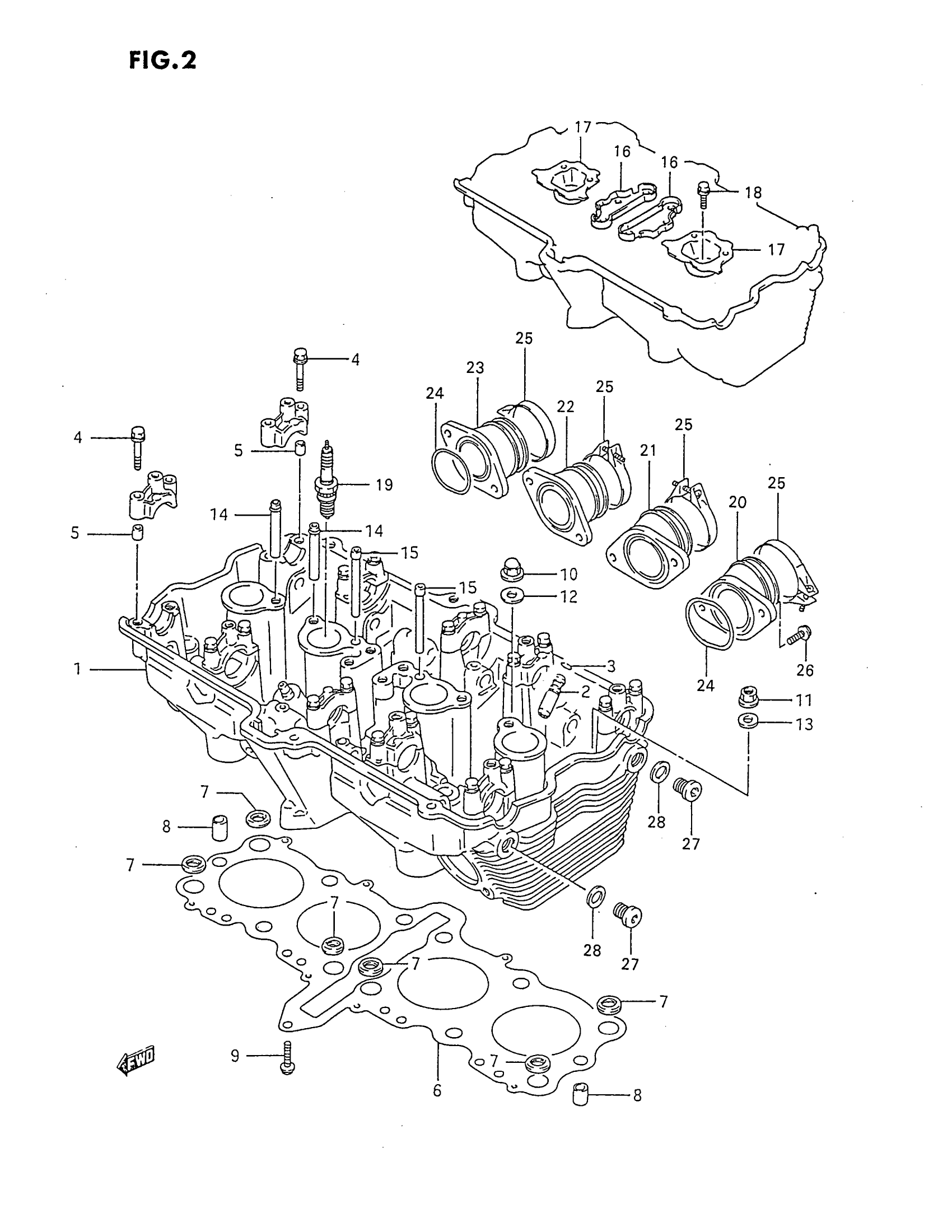

Find the part on the Cylinder Head diagram for your 1997 Suzuki GSX750FV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki GSX750FV Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER

11100-20C02

1
Out of stock

1

HEAD ASSY, CYLINDER | E33; Includes Item(s) 2 - 5

11100-20C12

1
Out of stock

2

GUIDE, VALVE

11116-06B70

16
Out of stock

3

.RING (10X85)

09381-10004

16
Out of stock

4

BOLT (6X39)

09103-06026

20
Out of stock

5

PIN

09206-08001

20
Out of stock

6

GASKET,CYLINDER This part replaces 11141-17C02.

11141-17C03

1
Out of stock

7

O RING

11143-06B00

6

$8.33

In stock

8

PIN

04211-11189

2

$1.94

In stock

9

BOLT This part replaces 01550-06253.

01550-0625A

1
Out of stock

10

NUT

09159-10054

8

$8.50

In stock

11

NUT This part replaces 08316-10103.

08316-1010B

4
Out of stock

12

.GASKET (10.2X20X2.3)

09168-10031

8

$2.18

In stock

13

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

4
Out of stock

14

PIPE, OIL NO.1,2

11131-27A00

4
Out of stock

15

PIPE, OIL NO.3

11133-27A00

2
Out of stock

16

PLATE, OIL PIPE NO.1

11135-17C10

2
Out of stock

17

PLATE, OIL PIPE,NO.2

11137-17C01

2
Out of stock

18

2

$1.31

In stock

19

SPARK PLUG (NGK,JR9C)

09482-00397

4

$6.30

In stock

19

4

$8.13

In stock

20

PIPE, INTAKE, LH

13101-17C01

1
Out of stock

21

PIPE ASSY,INTAK This part replaces 13102-17C01.

13102-17C02

1
Out of stock

22

PIPE ASSY,INTAK This part replaces 13103-17C01.

13103-17C02

1
Out of stock

23

PIPE, INTAKE, RH | Includes Item(s) 24

13104-17C01

1
Out of stock

25

CLAMP

09402-52208

4
Out of stock

26

8

$2.50

In stock

27

PLUG, CYLINDER HEAD

09248-14010

4

$7.03

In stock

28

GASKET

09168-14002

4
Out of stock
