Partiron

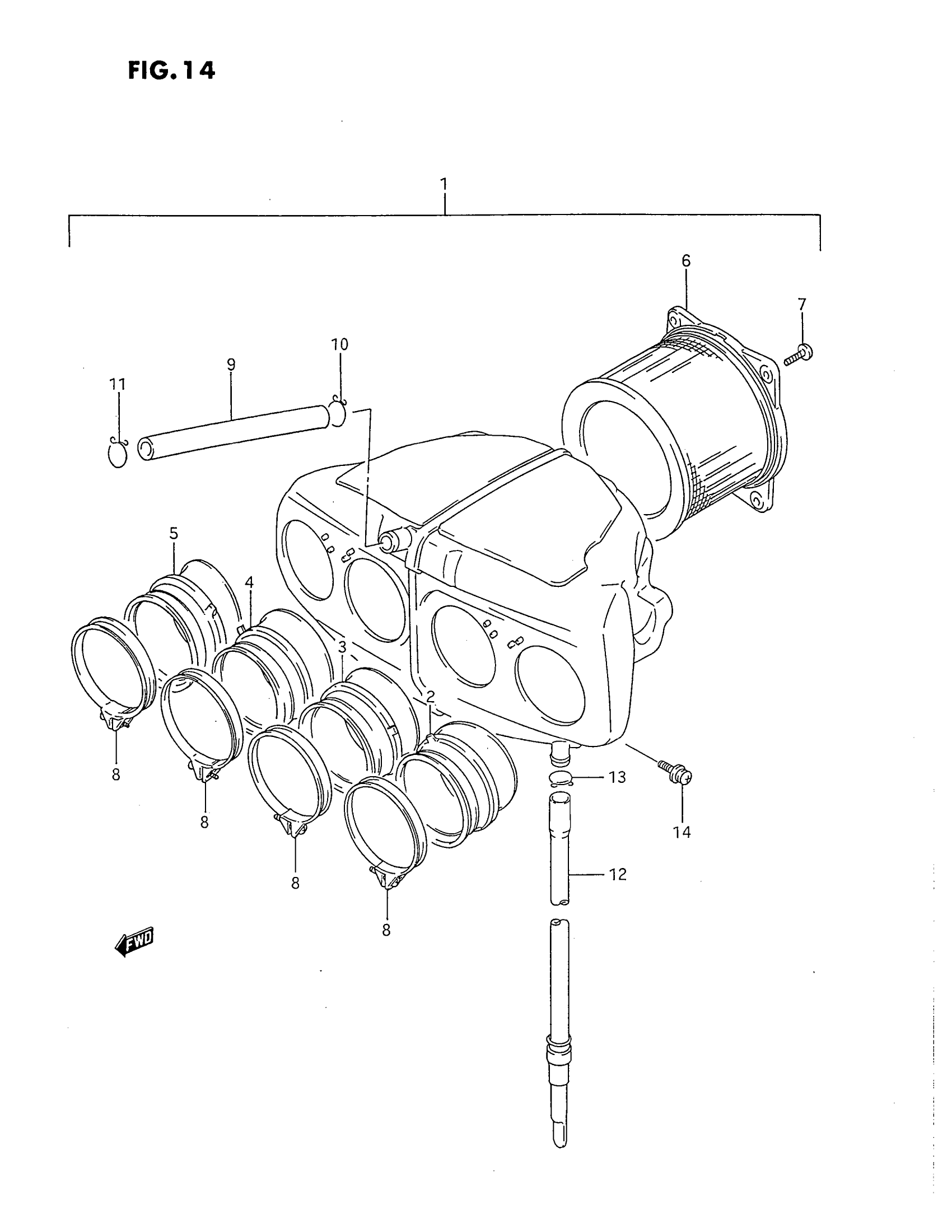

Suzuki GSX750FV (1997) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-20C03

Unavailable

1

CLEANER ASSY, AIR | E28; Includes Item(s) 2 - 13

13700-20C23

Unavailable

2

TUBE, OUTLET LH

13881-20C01

Unavailable

3

TUBE, OUTLET ML

13882-20C01

Unavailable

4

TUBE, OUTLET MR

13883-20C01

Unavailable

5

TUBE, OUTLET RH

13884-20C01

Unavailable

6

FILTER

13780-20C00

$68.82

7

.SCREW This part replaces 02142-05123.

02142-0512A

$1.37

8

CLAMP

09402-66208

$5.03

9

TUBE, BREATHER

13853-19C00

$17.40

10

CLIP

09401-16401

$2.87

11

CLIP

09401-14301

$2.17

12

TUBE,DRAIN This part replaces 13870-11458.

13870-11459

$14.60

13

CLIP

09401-13409

$2.13

14

SCREW This part replaces 02112-76163.

02112-7616A

$2.13
