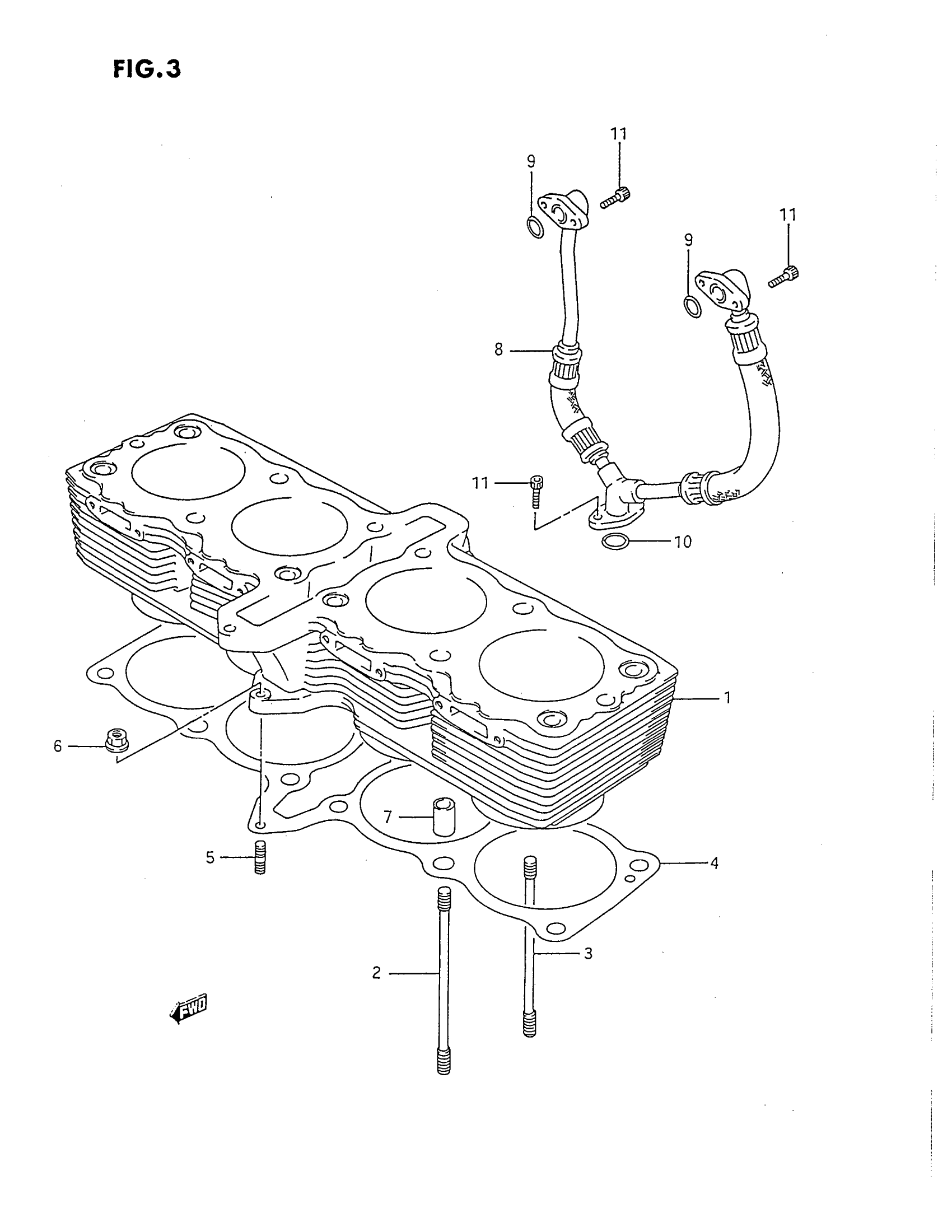

Suzuki GSX750FV (1997) CYLINDER Diagram

#

Description
Price

1

CYLINDER

11210-20C00

Unavailable

1

CYLINDER | E33

11210-20C10

Unavailable

2

STUD BOLT (L:144)

09108-10097

Unavailable

3

STUD BOLT (L:137)

09108-10096

Unavailable

4

GASKET, CYLINDER This part replaces 11241-27A03.

11241-27A04

$17.08

5

STUD BOLT This part replaces 01421-06203.

01421-0620A

$1.97

6

NUT This part replaces 08316-10063.

08316-1006B

$2.57

7

PIN

09206-13017

$7.07

8

HOSE, OIL HEAD COOLER

11328-17C03

Unavailable

9

O RING (D:2.5,ID:13.8)

09280-14011

$4.44

10

O-RING (D:2.4,ID:15.8)

09280-15007

$1.76

11

BOLT This part replaces 07130-06163.

07130-0616B

$2.44
