1997 Suzuki GSX750FV Crankshaft Diagram

← All diagrams

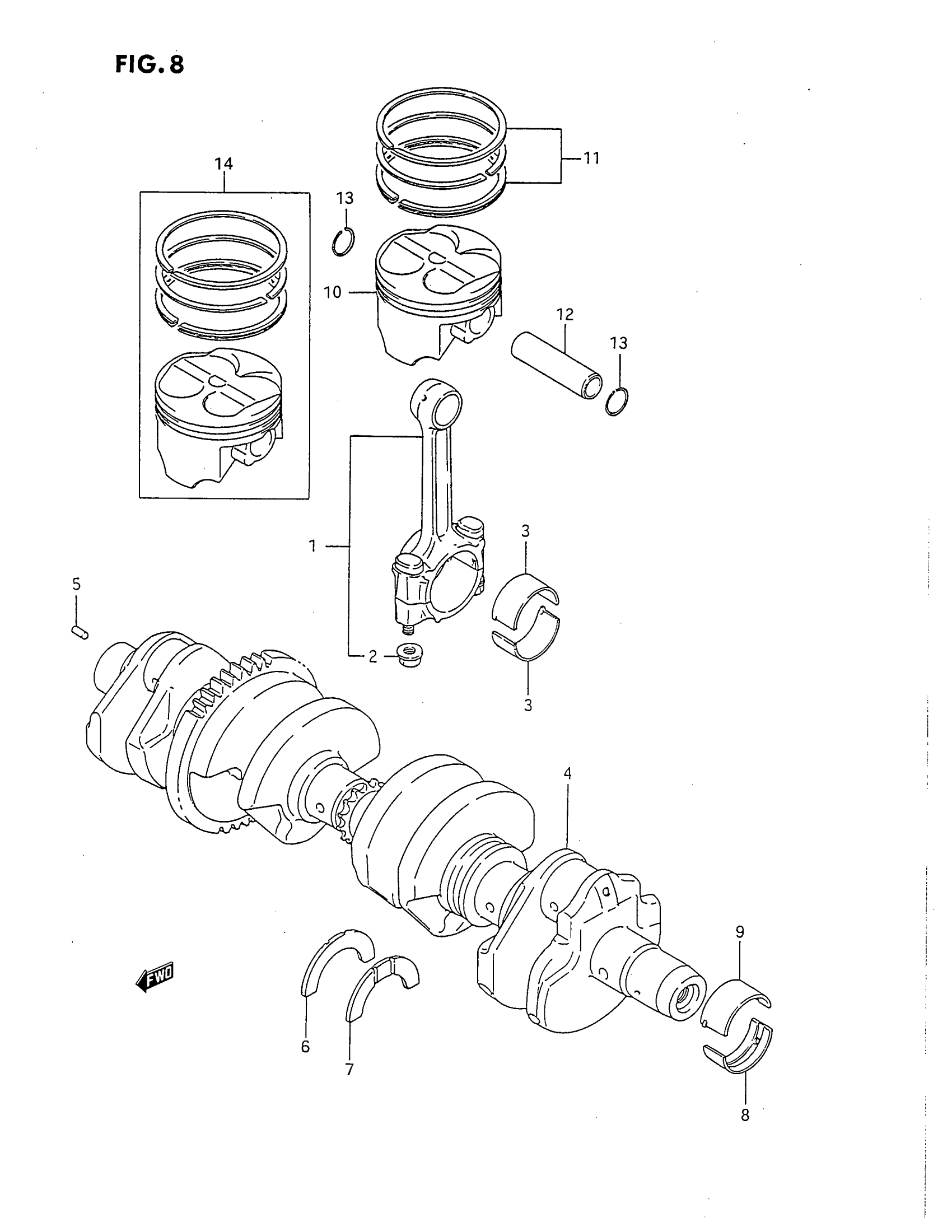

Find the part on the Crankshaft diagram for your 1997 Suzuki GSX750FV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki GSX750FV Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROD ASSY, CONNECTING | Includes Item(s) 2

12160-17C00

4
Out of stock

2

NUT

09159-09001

8
Out of stock

3

BEARING, CRANK PIN (GREEN)

12164-31E00-0A0

8
Out of stock

3

BEARING, CRANK PIN (BLACK)

12164-31E00-0B0

8
Out of stock

3

BEARING, CRANK PIN (BROWN)

12164-31E00-0C0

8
Out of stock

3

BEARING, CRANK PIN (YELLOW)

12164-31E00-0D0

8
Out of stock

4

CRANKSHAFT SET | Includes Item(s) 5 - 7

12000-17840

1
Out of stock

5

PIN (4X13.8)

04221-04089

1
Out of stock

6

BEARING, THRUST RH (GREEN)

12228-48B00-0E0

1
Out of stock

7

BEARING, THRUST LH (RED)

12228-48B00-0C0

1
Out of stock

7

BEARING, THRUST LH (GREEN)

12228-48B00-0E0

1
Out of stock

7

BEARING, THRUST LH (BLACK)

12228-48B00-0H0

1
Out of stock

8

BEARING, CRANKSHAFT (GREEN) | LOWER

12229-06B00-0A0

6
Out of stock

8

BEARING, CRANKSHAFT (BLACK)

12229-06B00-0B0

6
Out of stock

8

BEARING, CRANKSHAFT (BROWN)

12229-06B00-0C0

6
Out of stock

8

BEARING, CRANKSHAFT (YELLOW)

12229-06B00-0D0

6
Out of stock

9

BEARING, CRANKSHAFT (GREEN) | UPPER

12229-06B10-0A0

6
Out of stock

9

BEARING, CRANKSHAFT (BLACK)

12229-06B10-0B0

6
Out of stock

9

BEARING, CRANKSHAFT (BROWN)

12229-06B10-0C0

6
Out of stock

9

BEARING, CRANKSHAFT (YELLOW)

12229-06B10-0D0

6
Out of stock

10

PISTON This part replaces 12111-20C01-0F0.

12111-20C11-0F0

4
Out of stock

10

PISTON | E28

12111-20C11-0F0

4
Out of stock

11

RING SET, PISTON

12140-17C12

4
Out of stock

11

RING SET, PISTON | E28 This part replaces 12140-20C10.

12140-17C12

4
Out of stock

12

PIN, PISTON

12151-17C00

4
Out of stock

13

RING,SNAP

09381-19001

8
Out of stock

14

PISTON SET (OS:0.5) | OPT

12100-20C00-050

4
Out of stock

14

PISTON SET (OS:1.0) | OPT

12100-20C00-100

4
Out of stock

14

PISTON SET (OS:0.5) | OPT E28

12100-20C11-050

4
Out of stock

14

PISTON SET (OS:1.0) | OPT E28

12100-20C11-100

4
Out of stock
