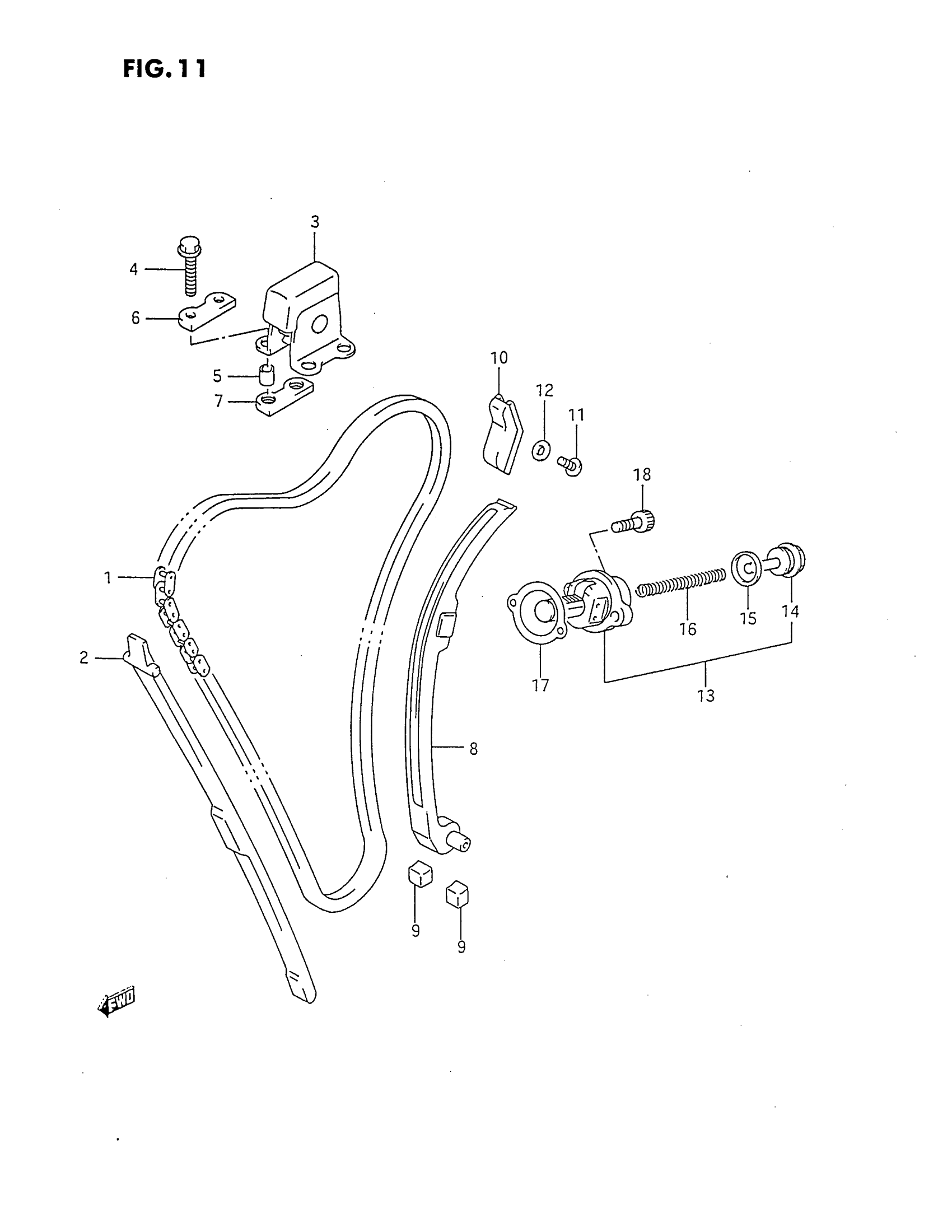

Find the part on the CAM Chain diagram for your 1997 Suzuki GSX750FV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki GSX750FV CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAM SHAFT DRIVE

12760-17C02

1
Out of stock

2

GUIDE, CAM CHAIN NO.1

12771-17C01

1
Out of stock

3

IDLER, CAM CHAIN

12780-40C00

1
Out of stock

4

BOLT This part replaces 01550-06303.

01550-0630A

4
Out of stock

5

SPACER This part replaces 09180-06317.

09180-06286

4
Out of stock

6

CUSHION (T:5.2)

12788-48B01

2
Out of stock

7

CUSHION (T:8.6)

12788-48B11

2
Out of stock

8

TENSIONER, CAM CHAIN

12810-17C00

1
Out of stock

9

CUSHION

12814-34200

2
Out of stock

10

GUIDE, CAM CHAIN NO.2

12791-17C00

1
Out of stock

11

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

1
Out of stock

12

WASHER

09168-06023

1
Out of stock

13

ADJUSTER ASSY, TENSIONER | Includes Item(s) 14 - 16

12830-27A08

1
Out of stock

14

PLUG

12834-27A00

1
Out of stock

15

GASKET

12832-27A00

1
Out of stock

16

SPRING

12833-27A00

1
Out of stock

17

GASKET, ADJUSTER

12837-27A10

1
Out of stock

18

BOLT This part replaces 07130-06253.

07130-0625B

2
Out of stock
