1997 Suzuki GSX750FV Oil Pan Diagram

← All diagrams

Find the part on the Oil Pan diagram for your 1997 Suzuki GSX750FV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

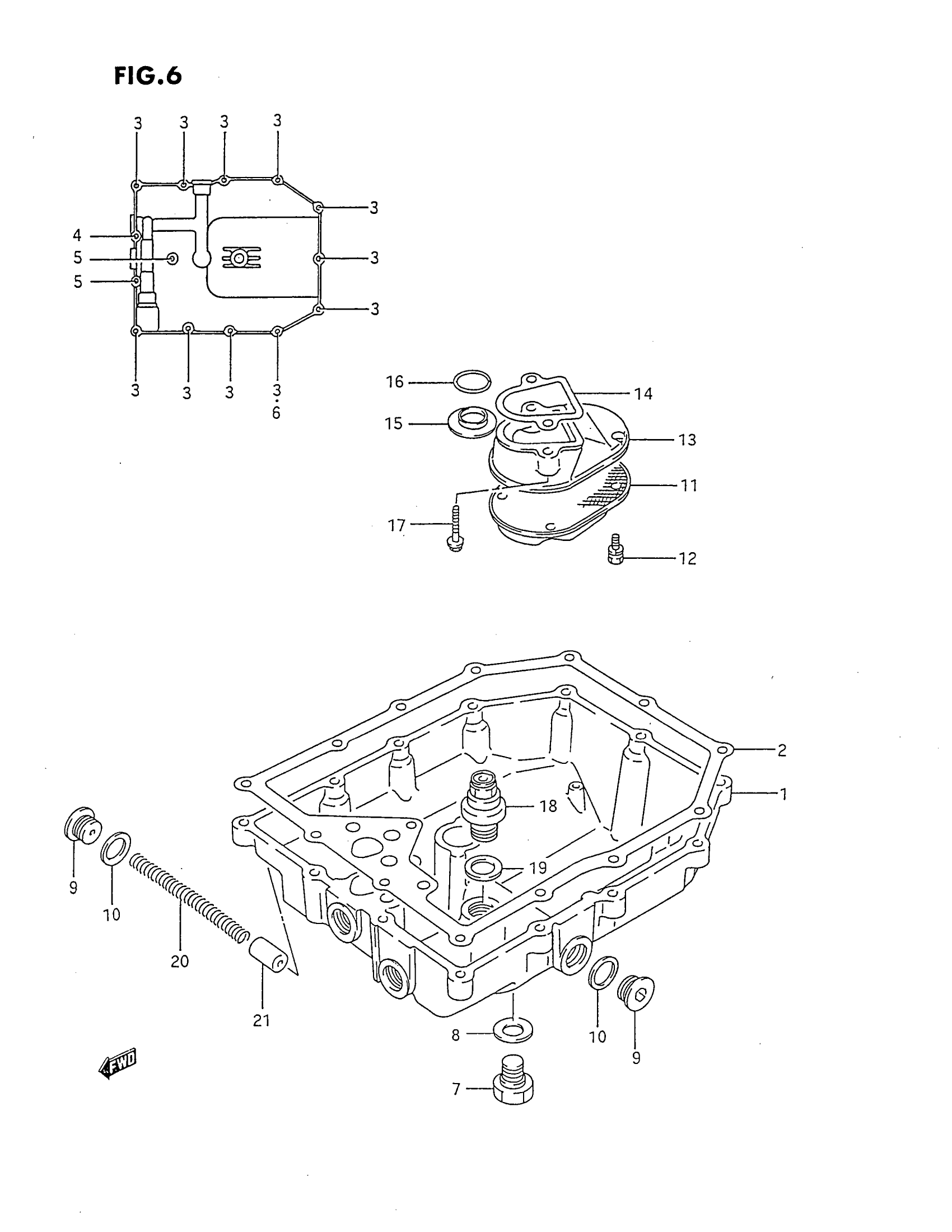

1997 Suzuki GSX750FV Oil Pan Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PAN, OIL

11511-20C00

1
Out of stock

2

1

$16.28

In stock

3

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

11
Out of stock

4

1

$2.92

In stock

5

2

$2.92

In stock

6

GASKET

09168-06024

1

$2.52

In stock

7

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

1
Out of stock

8

GASKET

09168-14002

1
Out of stock

9

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

2
Out of stock

10

GASKET

09168-16002

2
Out of stock

11

STRAINER, ENGINE OIL

16520-17C00

1
Out of stock

12

4

$2.87

In stock

13

PROTECTOR, STRAINER

16525-17C00

1
Out of stock

15

GASKET, OUTLET

16529-27A01

1

$2.48

In stock

16

1

$5.64

In stock

17

BOLT This part replaces 01550-06253.

01550-0625A

2
Out of stock

19

WASHER

09168-16002

1
Out of stock

20

SPRING

09440-09027

1
Out of stock

21

PLUNGER, OIL CONTROL

16442-34301

1
Out of stock
