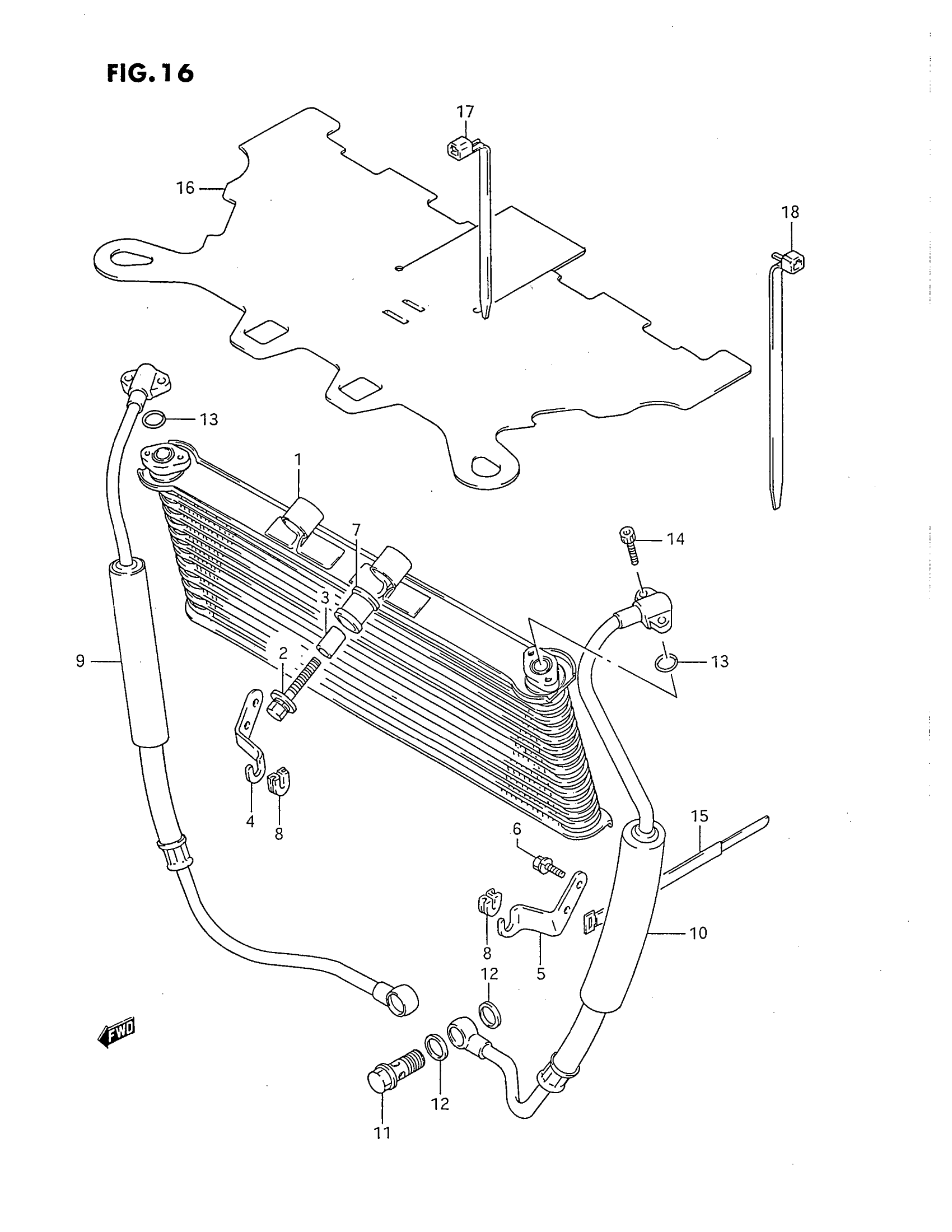

Suzuki GSX750FV (1997) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL

16600-20C03

Unavailable

2

BOLT (8X40)

09118-08131

$3.42

3

SPACER

09180-08304

Unavailable

4

BRACKET, OIL COOLER,RH

16621-20C02

Unavailable

5

BRACKET, OIL COOLER,LH

16622-20C02

Unavailable

6

BOLT This part replaces 01570-06163.

01570-0616A

$2.24

7

CUSHION, NO.1

16629-27A01

Unavailable

8

CUSHION, NO.2

16628-27A00

$2.80

9

HOSE, OIL COOLER,RH

16460-20C03

Unavailable

10

HOSE, OIL COOLER,LH

16470-20C03

Unavailable

11

BOLT, UNION

09360-16002

$13.12

12

GASKET

09168-16002

$1.89

13

O RING (D:2.4,ID:12.3)

09280-12008

$2.77

14

BOLT This part replaces 07130-06163.

07130-0616B

$2.38

15

CLAMP, OIL HOSE

09407-25401

$4.21

16

PLATE, AIR GUIDE This part replaces 94451-20C00.

94451-20C01

Unavailable

16

NO DESCRIPTION AVAILABLE | E33 This part replaces 94451-20C10.

94451-20C11

Unavailable

17

CLAMP This part replaces 09407-18403.

09407-18402

$2.21

18

CLAMP (L:235)

09407-25401

$4.21
