2025 Kawasaki Eliminator ABS Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

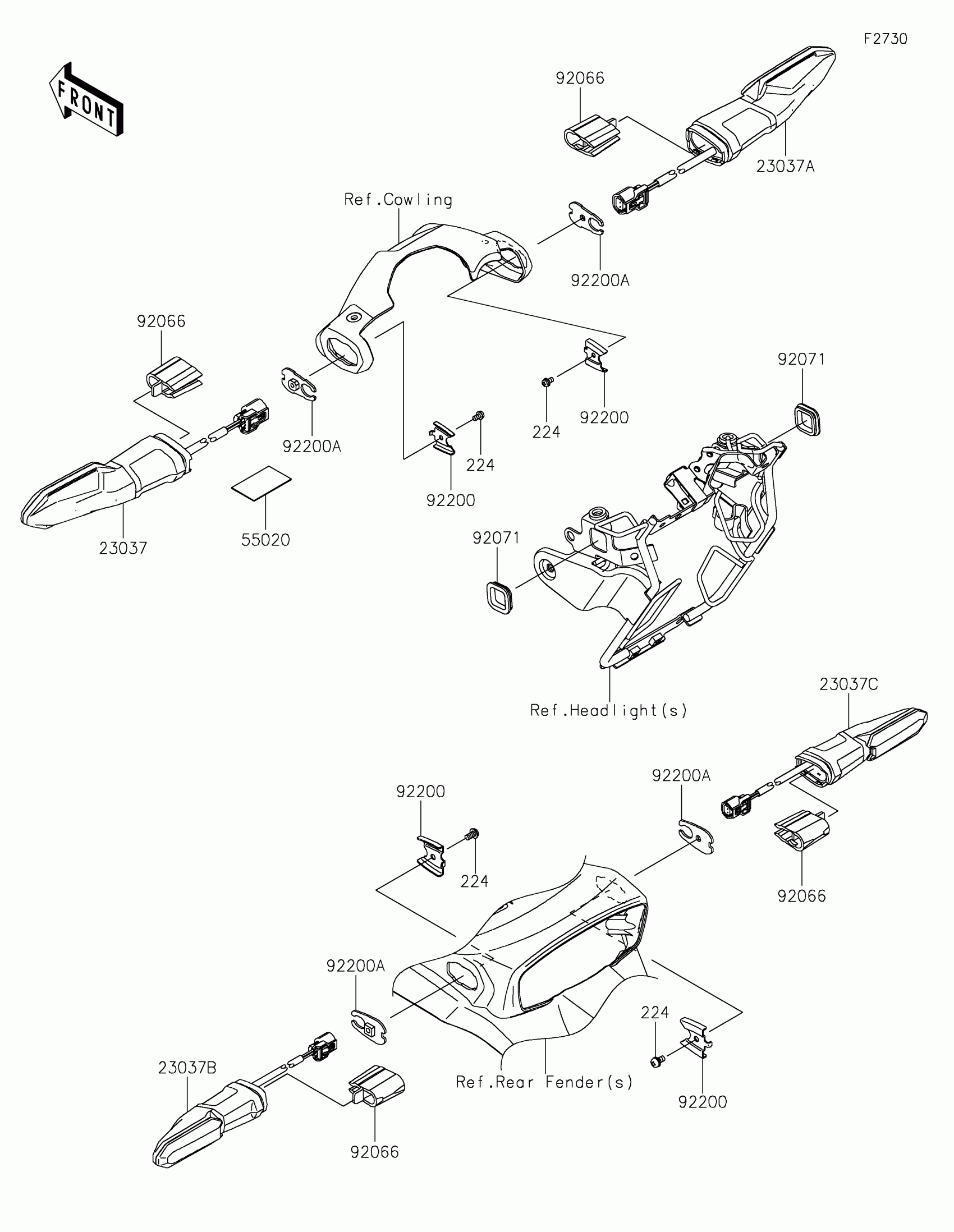

2025 Kawasaki Eliminator ABS Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23037

LAMP-ASSY-SIGNAL,LED,LH,FR

23037-0527

1
Out of stock

23037A

LAMP-ASSY-SIGNAL,LED,RH,FR

23037-0528

1
Out of stock

23037B

LAMP-ASSY-SIGNAL,LED,RR,LH

23037-0549

1
Out of stock

23037C

LAMP-ASSY-SIGNAL,LED,RR,RH

23037-0550

1
Out of stock

55020

GUARD,50X30

55020-2334

1
Out of stock

92066

PLUG,SIGNAL LAMP

92066-0919

1
Out of stock

92071

GROMMET

92071-0819

1
Out of stock

92200

WASHER

92200-0855

1
Out of stock

92200A

WASHER,SIGNAL LAMP

92200-2294

1
Out of stock

224

SCREW-PAN-WP-CROS,4X8

224AB0408

1
Out of stock
