2025 Kawasaki Eliminator ABS Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

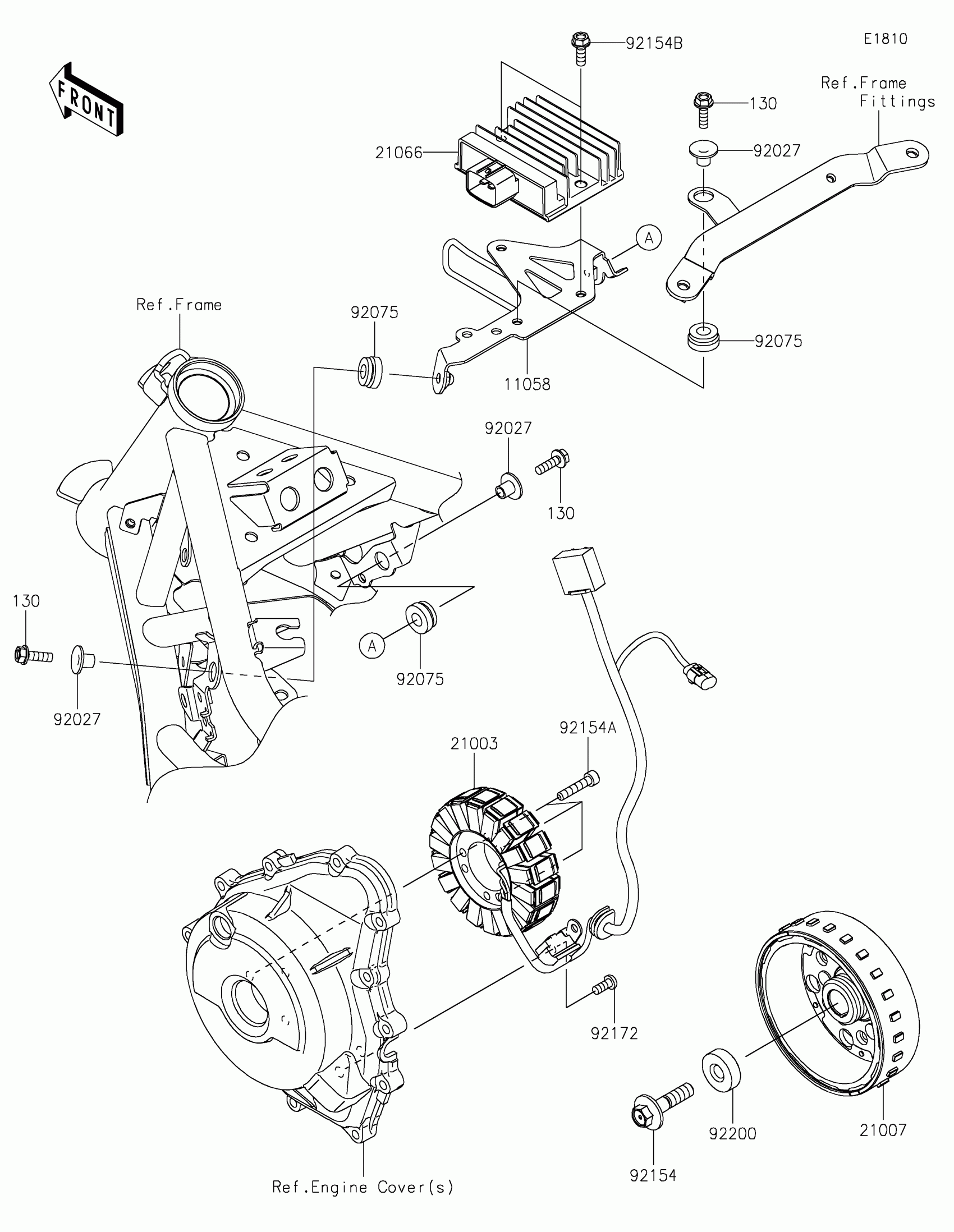

2025 Kawasaki Eliminator ABS Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,REGULATOR

11058-0382

1
Out of stock

21003

STATOR

21003-0220

1
Out of stock

21007

ROTOR

21007-0735

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-0761

1
Out of stock

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

1
Out of stock

92075

DAMPER

92075-277

1
Out of stock

92154

BOLT,FLANGED,10X40

92154-2341

1
Out of stock

92154A

BOLT,SOCKET,6X30

92154-2820

1
Out of stock

92154B

BOLT,FLANGED,6X18

92154-2896

1
Out of stock

92172

SCREW,6X14

92172-1212

1
Out of stock

92200

WASHER,10X30X9

92200-0790

1
Out of stock

130

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock
