2025 Kawasaki Eliminator ABS Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

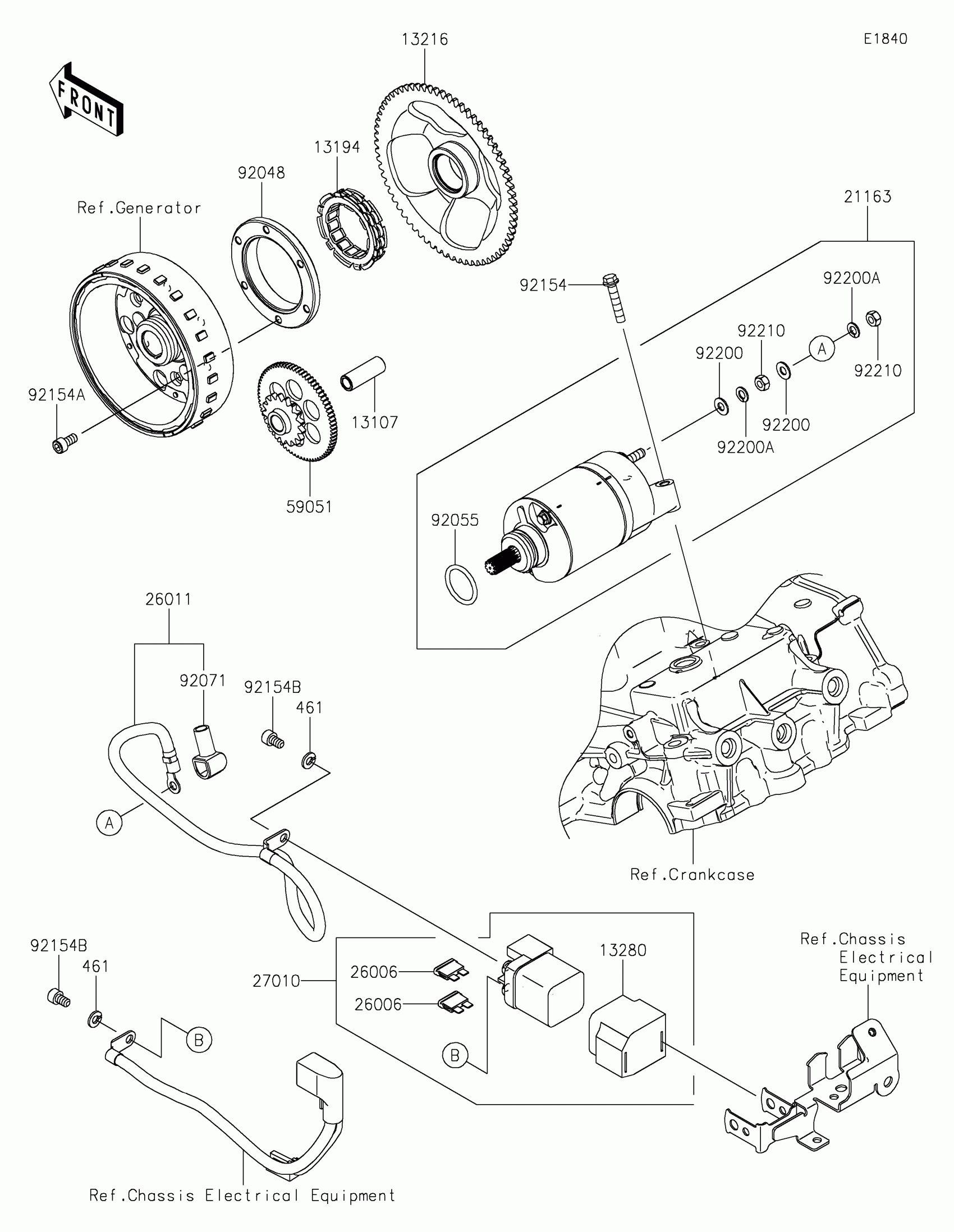

2025 Kawasaki Eliminator ABS Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,IDLER

13107-0861

1
Out of stock

13194

CLUTCH-ONEWAY

13194-1096

1
Out of stock

13216

GEAR-COMP,ONEWAY CLUTCH,67T

13216-0895

1
Out of stock

13280

HOLDER

13280-0301

1

$13.37

In stock

21163

STARTER-ELECTRIC

21163-0794

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26011

WIRE-LEAD,STARTER

26011-2422

1
Out of stock

27010

SWITCH,MAGNETIC

27010-0099

1
Out of stock

59051

GEAR-SPUR,IDLER

59051-0799

1
Out of stock

92048

RACE

92048-0024

1
Out of stock

92055

RING-O

92055-0822

1
Out of stock

92071

GROMMET

92071-0787

1
Out of stock

92154

BOLT,FLANGED,6X30

92154-1773

1
Out of stock

92154A

BOLT,SOCKET,6X12

92154-1889

1
Out of stock

92154B

BOLT,SOCKET,6X10

92154-4401

1
Out of stock

92200

WASHER

92200-1678

1
Out of stock

92200A

WASHER

92200-1679

1
Out of stock

92210

NUT

92210-1664

1
Out of stock

461

WASHER-SPRING,6MM

461DA0600

1
Out of stock
