2025 Kawasaki Eliminator ABS Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

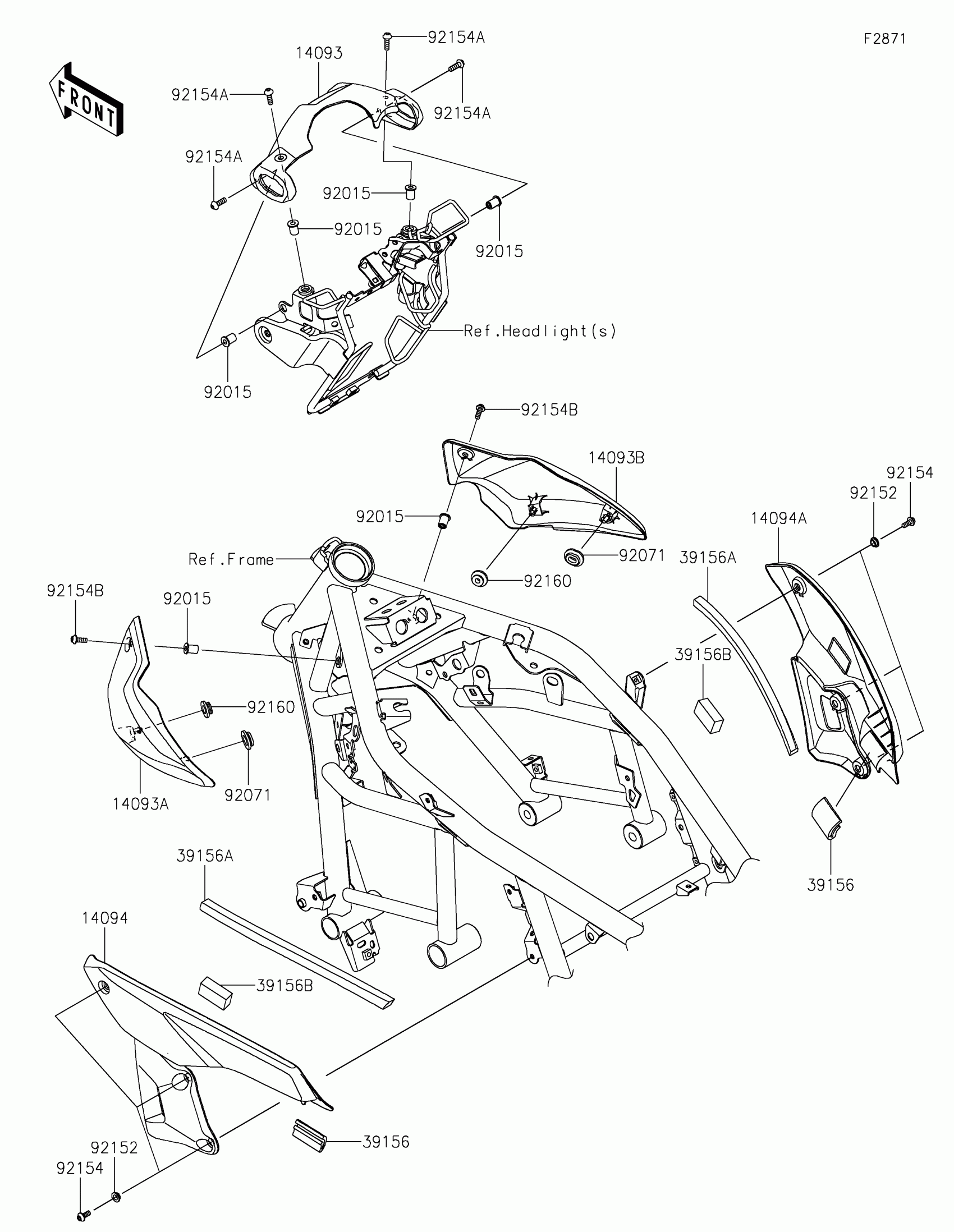

2025 Kawasaki Eliminator ABS Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,HEAD LAMP

14093-1303

1
Out of stock

14093A

COVER,HEAD PIPE,LH

14093-1304

1
Out of stock

14093B

COVER,HEAD PIPE,RH

14093-1305

1
Out of stock

14094

COVER,KNEE GRIP,LH

14094-0008

1
Out of stock

14094A

COVER,KNEE GRIP,RH

14094-0009

1
Out of stock

39156

PAD,50X40X4

39156-2826

1
Out of stock

39156A

PAD,10X260X10

39156-2832

1
Out of stock

39156B

PAD,37X20X13

39156-2833

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92071

GROMMET,20X24X7.5

92071-0766

1
Out of stock

92152

COLLAR

92152-3772

1
Out of stock

92154

BOLT,SOCKET,5X12

92154-0917

1
Out of stock

92154A

BOLT,SOCKET,5X16

92154-1701

1
Out of stock

92154B

BOLT,HEX HEAD,5X14

92154-4228

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock
