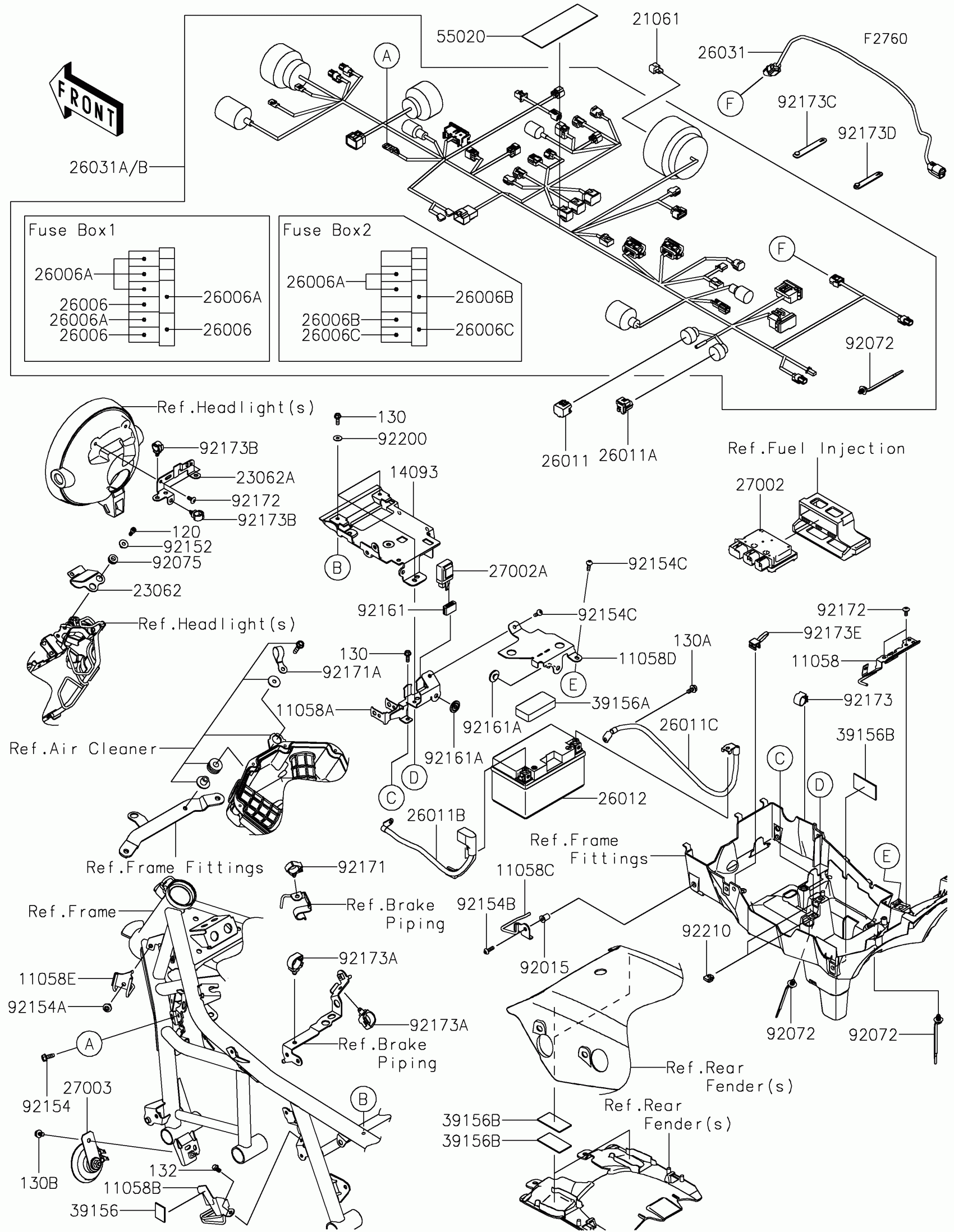

Find the part on the Chassis Electrical Equipment diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Eliminator ABS Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,FUSE BOX

11058-0361

1
Out of stock

11058A

BRACKET,RELAY

11058-0364

1
Out of stock

11058B

BRACKET,ACG CONNECTOR

11058-0381

1
Out of stock

11058C

BRACKET

11058-0494

1
Out of stock

11058D

BRACKET,BATTERY

11058-1026

1
Out of stock

11058E

BRACKET

11058-1356

1
Out of stock

14093

COVER

14093-1558

1
Out of stock

21061

RECTIFIER

21061-1003

1
Out of stock

23062

BRACKET-COMP

23062-1408

1
Out of stock

23062A

BRACKET-COMP

23062-1409

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26006B

FUSE,MINI BLADE,20A,YELLOW

26006-1079

1
Out of stock

26006C

FUSE,MINI BLADE,30A,GREEN

26006-1080

1
Out of stock

26011

WIRE-LEAD,CONNECTOR COVER

26011-0275

1
Out of stock

26011A

WIRE-LEAD,DIAG CONNECTOR

26011-1901

1
Out of stock

26011B

WIRE-LEAD,BATTERY(+)

26011-2415

1
Out of stock

26011C

WIRE-LEAD,BATTERY(-)

26011-2416

1
Out of stock

26012

BATTERY,YTZ10,12V 8.6AH

26012-0689

1
Out of stock

26031

HARNESS,SUB

26031-3971

1
Out of stock

26031B

HARNESS,MAIN

26031-4199

1
Out of stock

27002

RELAY-ASSY

27002-0061

1
Out of stock

27002A

RELAY-ASSY,SIGNAL LAMP

27002-0062

1
Out of stock

27003

HORN

27003-0065

1
Out of stock

39156

PAD,31X23X2

39156-2462

1
Out of stock

39156A

PAD,70X35X15

39156-2837

1
Out of stock

39156B

PAD,55X30X2

39156-2840

1
Out of stock

55020

GUARD,MAIN HARNESS

55020-2478

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

—
Out of stock

92075

DAMPER

92075-161

1
Out of stock

92152

COLLAR,5.2X7.5X8.2

92152-1880

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-0551

1
Out of stock

92154A

BOLT,SOCKET,6X10

92154-1693

1
Out of stock

92154B

BOLT,SOCKET,5X16

92154-1701

1
Out of stock

92154C

BOLT,SOCKET,5X16

92154-4294

1
Out of stock

92161

DAMPER,15X25X8.5

92161-1443

1
Out of stock

92161A

DAMPER,8X22X10

92161-1685

1

$0.86

In stock

92171

CLAMP,BRAKE HOSE

92171-0316

1

$3.08

In stock

92171A

CLAMP

92171-1279

1
Out of stock

92172

SCREW,5X12

92172-0821

1
Out of stock

92173

CLAMP,CLIP

92173-0127

1
Out of stock

92173A

CLAMP

92173-0861

1
Out of stock

92173B

CLAMP

92173-1951

1
Out of stock

92173C

CLAMP

92173-2194

1
Out of stock

92173D

CLAMP

92173-2199

1
Out of stock

92173E

CLAMP

92173-2719

1
Out of stock

92200

WASHER,5.2X15X1.0

92200-0456

1
Out of stock

92210

NUT,PLATE,5MM

92210-0935

1
Out of stock

120

BOLT-SOCKET,5X14

120CA0514

1
Out of stock

130

BOLT-FLANGED,5X16

130BA0516

1

$0.85

In stock

130A

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130B

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock

132

1

$2.05

In stock
