2025 Kawasaki Eliminator ABS Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

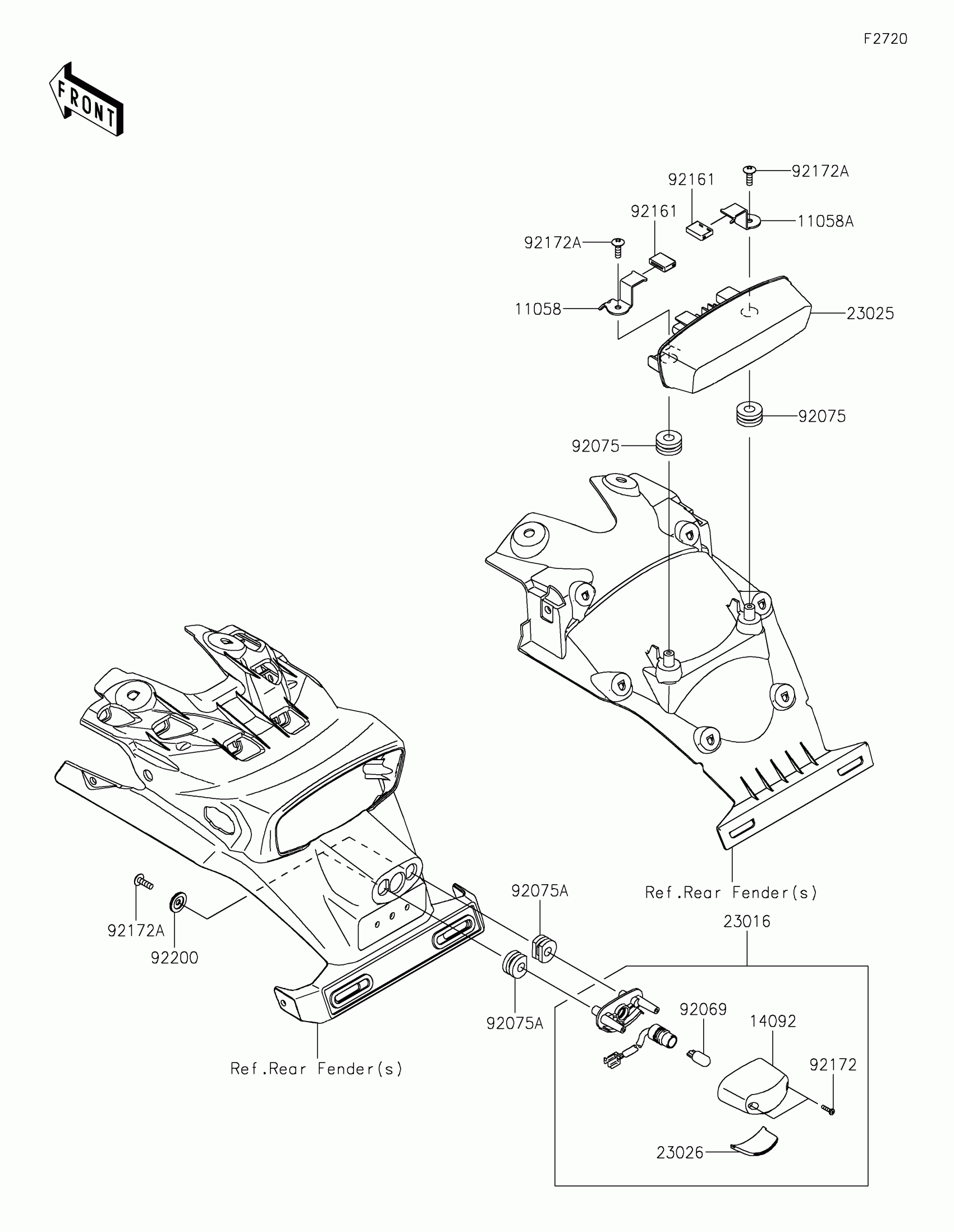

2025 Kawasaki Eliminator ABS Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,TAIL LAMP,LH

11058-0504

1
Out of stock

11058A

BRACKET,TAIL LAMP,RH

11058-0505

1
Out of stock

14092

COVER,LICENSE LAMP

14092-0001

1
Out of stock

23016

LAMP-ASSY,LICENCE

23016-0658

1
Out of stock

23025

LAMP-TAIL,LED

23025-0396

1
Out of stock

23026

LENS,LICENCE LAMP

23026-0035

1
Out of stock

92069

BULB,12V 5W

92069-1016

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92075A

DAMPER

92075-1870

1
Out of stock

92161

DAMPER,15X21X5.5

92161-1472

1

$2.44

In stock

92172

SCREW,TAPPING,2.9X13

92172-0343

1
Out of stock

92172A

SCREW,TAPPING,5X16

92172-0427

1
Out of stock

92200

WASHER,5.5X20X2

92200-1971

1
Out of stock
