2025 Kawasaki Eliminator ABS Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

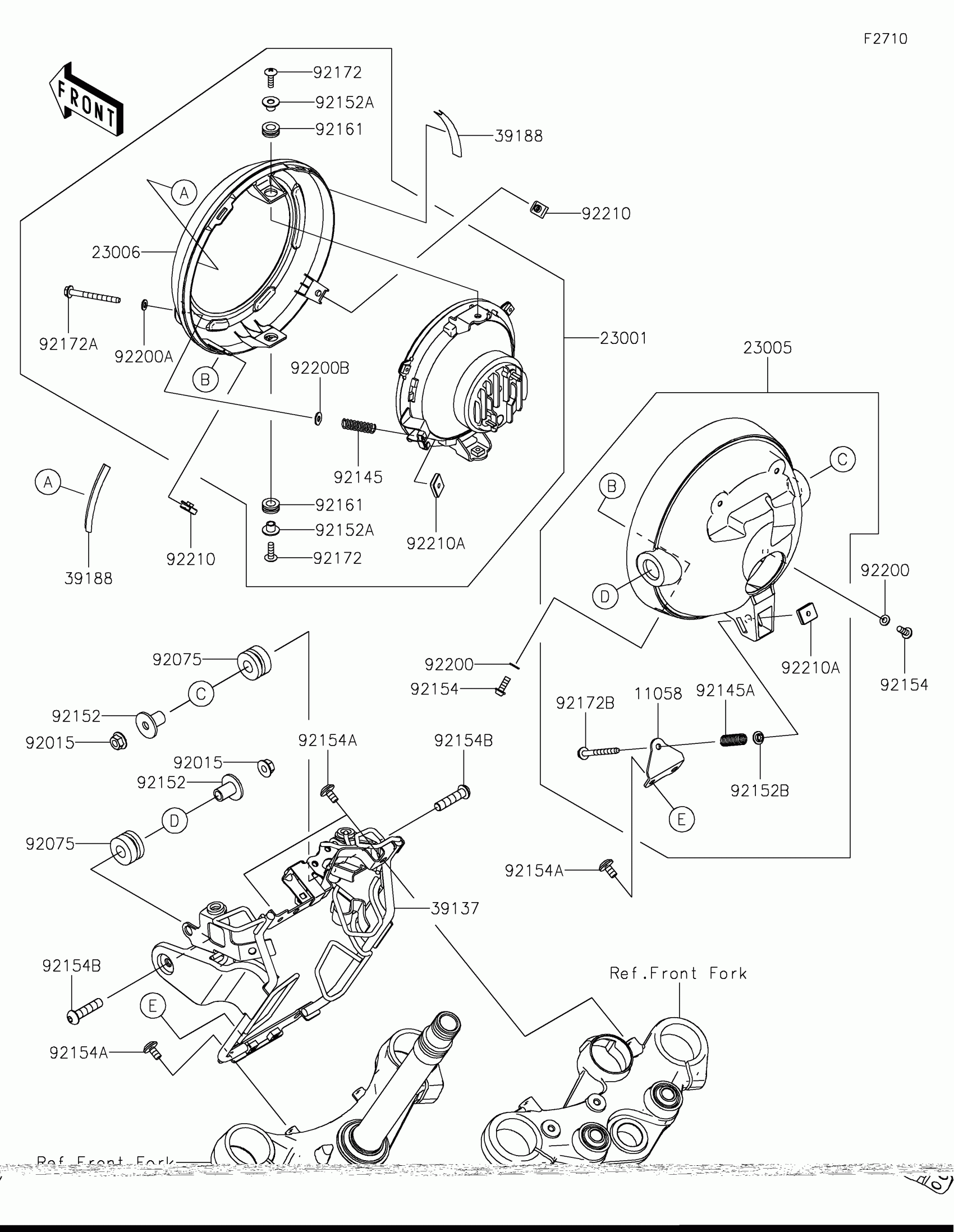

2025 Kawasaki Eliminator ABS Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,HEAD LAMP BODY

11058-0255

1
Out of stock

23001

LAMP-ASSY-HEAD,LED

23001-0073

1
Out of stock

23005

BODY-COMP-HEAD LAMP

23005-0317

1
Out of stock

23006

RIM-LAMP

23006-0027

1
Out of stock

39137

STAY-COMP

39137-0745

1
Out of stock

39188

TAPE,70X15

39188-0597

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92075

DAMPER

92075-1736

1
Out of stock

92145

SPRING

92145-1990

1
Out of stock

92145A

SPRING

92145-2279

1
Out of stock

92152

COLLAR,8X12X20.3

92152-2433

1
Out of stock

92152A

COLLAR

92152-2785

1
Out of stock

92152B

COLLAR

92152-2940

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-1701

1
Out of stock

92154A

BOLT,SOCKET,6X12

92154-2706

1
Out of stock

92154B

BOLT,SOCKET,8X35

92154-7063

1
Out of stock

92161

DAMPER

92161-2376

1
Out of stock

92172

SCREW,PAN-CROSS,5X15

92172-1407

1
Out of stock

92172A

SCREW,FLANGED,5X52

92172-1409

1
Out of stock

92172B

SCREW,FLANGED,5X52

92172-1461

1
Out of stock

92200

WASHER,5.2X10X1

92200-2286

1
Out of stock

92200A

WASHER,5.2X10X1

92200-2435

1
Out of stock

92200B

WASHER,5.2X12X1

92200-2436

1
Out of stock

92210

NUT

92210-0571

1
Out of stock

92210A

NUT

92210-1850

1
Out of stock
