1979 Yamaha EC540C Taillight EC540C - D Diagram

← All diagrams

Find the part on the Taillight EC540C - D diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

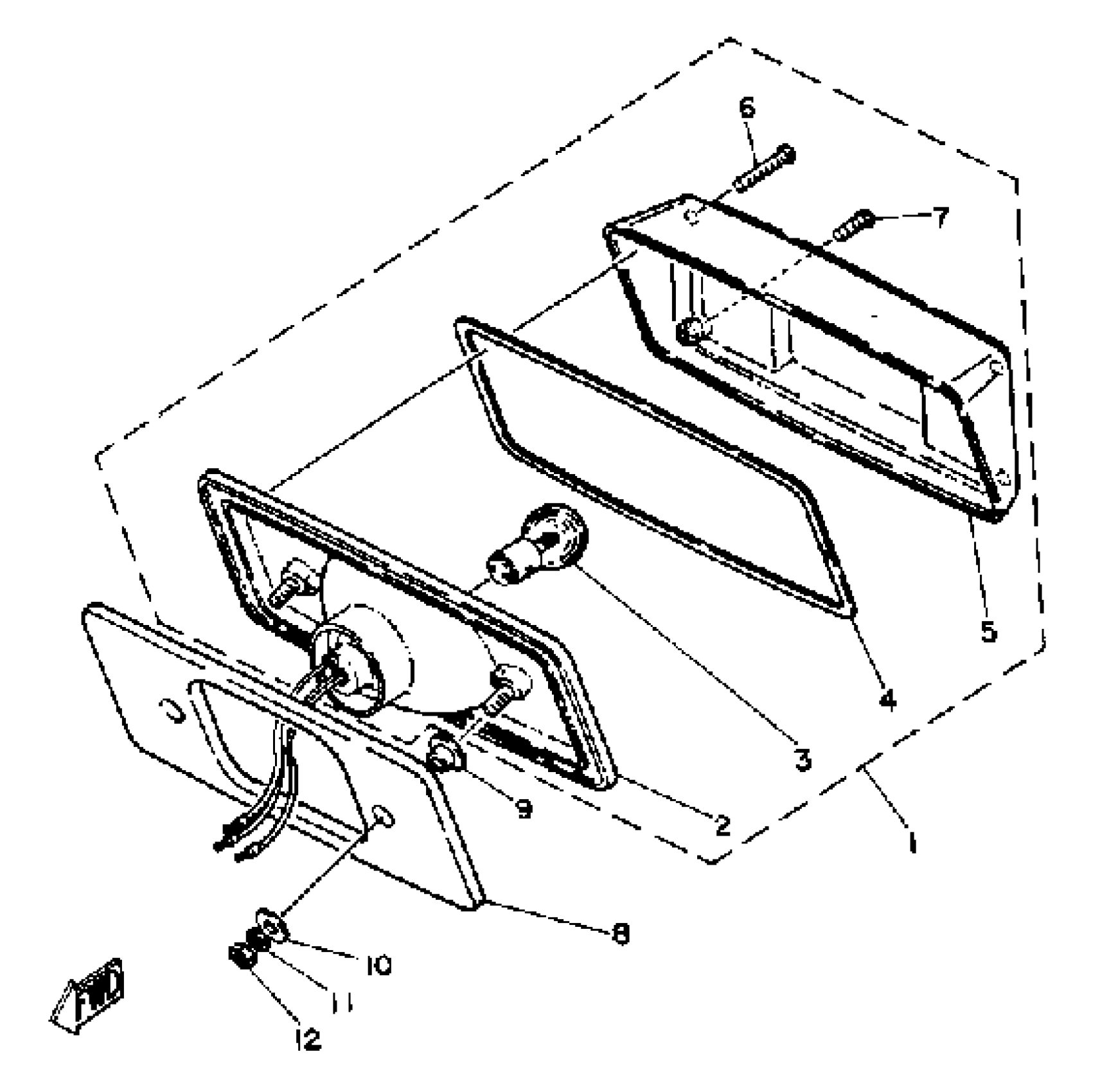

1979 Yamaha EC540C Taillight EC540C - D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

838-84710-02-00

1
Out of stock

2

TAILLIGHT UNIT ASSEMBLY

853-84710-00-00

1
Out of stock

3

BULB(12V32/3CP)1157

137-84714-61-XX

1
Out of stock

4

SEAL

3TJ-14457-00-00

—
Out of stock

5

. LENS, TAILLIGHT

821-84721-00-00

1
Out of stock

6

SCREW, PAN

98507-04030-00

1

$1.51

In stock

7

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

8

DAMPER

878-84753-00-00

1
Out of stock

9

COLLAR (838-84757-00)

90387-06024-00

1
Out of stock

10

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
