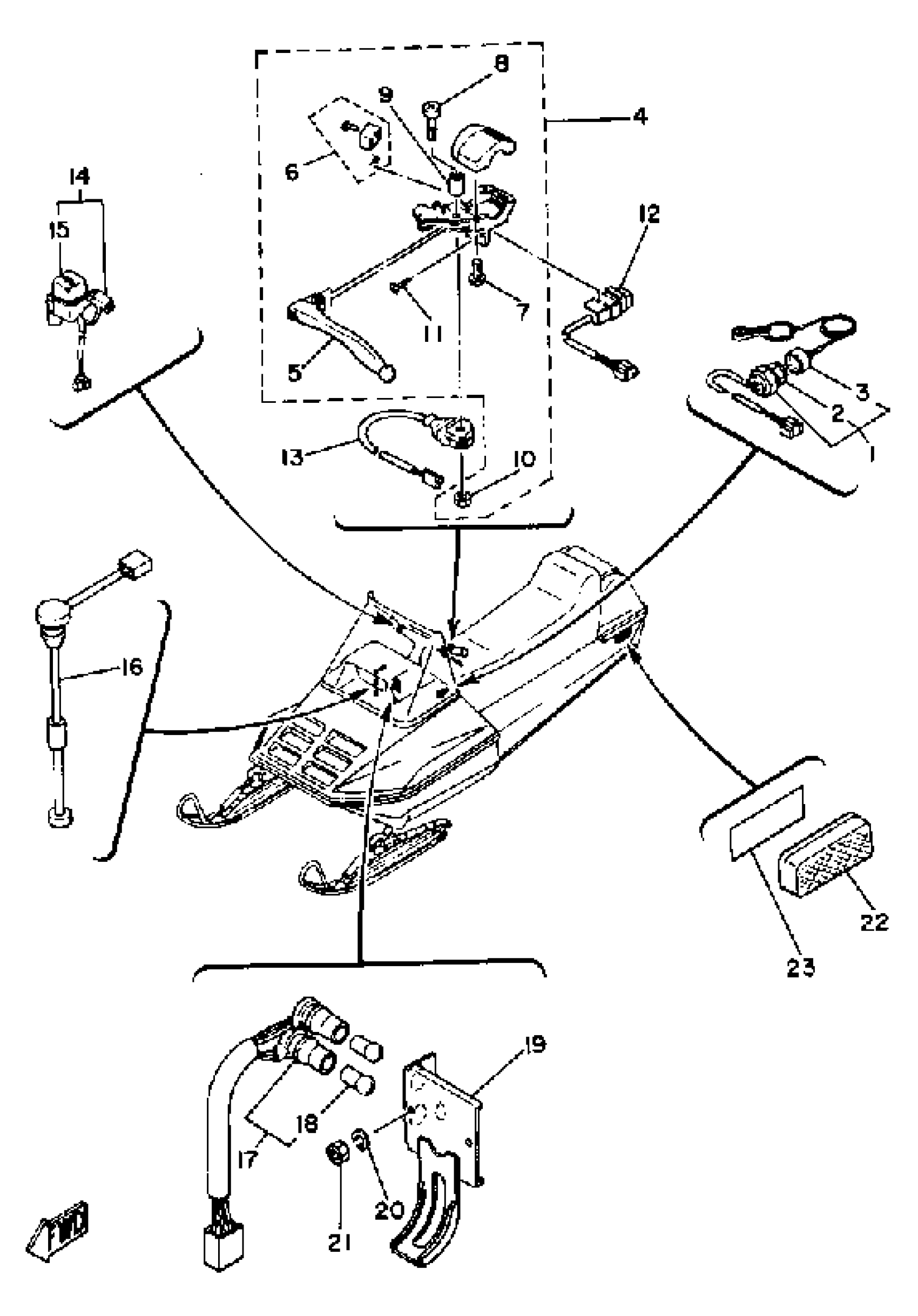

Find the part on the Electrical 2 EC540D diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha EC540C Electrical 2 EC540D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STOP SWITCH ASSY

8H8-82550-01-00

1

$83.12

In stock

2

NUT

8H8-82557-00-00

1

$3.78

In stock

3

CAP, SWITCH

8H8-82552-09-00

1

$42.05

In stock

4

LEVER HOLDER ASY L

8H8-W8291-01-00

1
Out of stock

5

LEVER 1

8H8-83912-00-00

1

$18.40

In stock

6

LEVER LOCK ASSEMBLY

(8H8-83930-00-00)

1
Out of stock

7

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

8

SCREW, PAN

98507-05040-00

1

$6.68

In stock

9

COLLAR, LEVER

802-83913-00-00

—

$6.35

In stock

10

NUT, NYLON

95707-05300-00

1

$2.74

In stock

11

. SCREW, TAPPING

97780-30312-00

1
Out of stock

12

BEAM SWITCH ASSY

8H8-83950-01-00

1

$68.89

In stock

13

UNAVAILABLE IN PRICE BOOK

8H8-92530-00-00

1
Out of stock

14

SWITCH HANDLE 1

8H8-83976-00-00

—

$46.55

In stock

15

CAP 1

8E3-83956-01-00

1

$7.09

In stock

16

OIL LVL GAUGE ASSEMBLY

8H8-85720-00-00

1
Out of stock

17

PILOT LIGHT ASSEMBLY

(8H8-83530-00-00)

1
Out of stock

18

BULB (12V-3.4W)

123-83516-21-00

—

$4.10

In stock

19

BRKT, INDCTR LT 1

8H8-83574-00-00

1
Out of stock

20

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

21

NUT(6TA)

95307-04600-00

—

$6.69

In stock

22

REAR REFLECTOR ASSY

81G-85130-00-00

—

$33.55

In stock

23

TAPE, REFLECTOR

878-85133-00-00

1
Out of stock
