1979 Yamaha EC540C Tachometer EC540C - D Diagram

← All diagrams

Find the part on the Tachometer EC540C - D diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

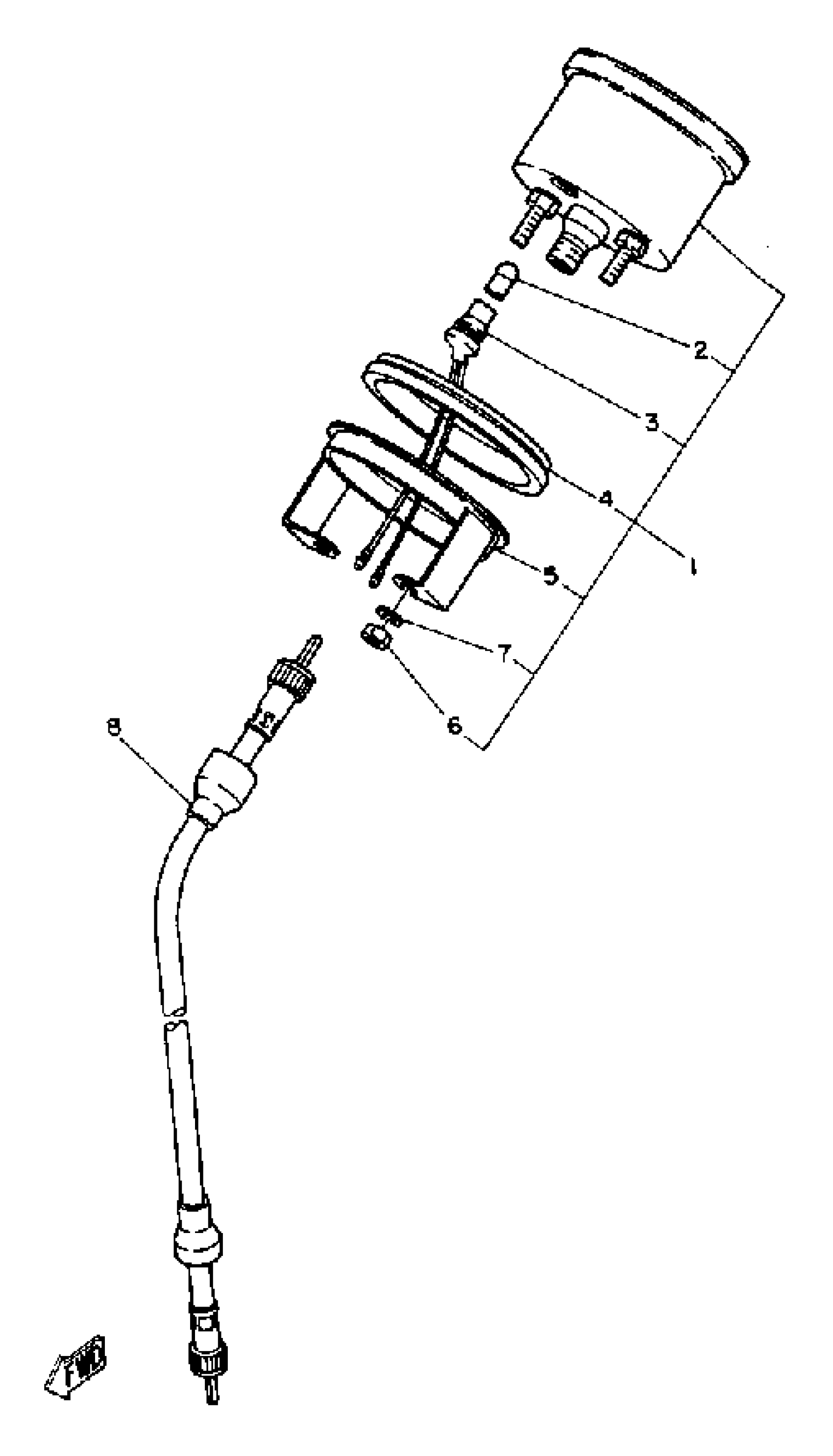

1979 Yamaha EC540C Tachometer EC540C - D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TACHOMETER ASSEMBLY

8R5-83540-00-00

1
Out of stock

2

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

3

SOCKET, METER

(861-83536-40-00)

1
Out of stock

4

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

5

. BRACKET, METER

8G6-83519-00-00

1
Out of stock

6

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

TACHOMETER CABLE

8H8-83560-00-00

1
Out of stock
