1979 Yamaha EC540C Electrical 1 EC540C Diagram

← All diagrams

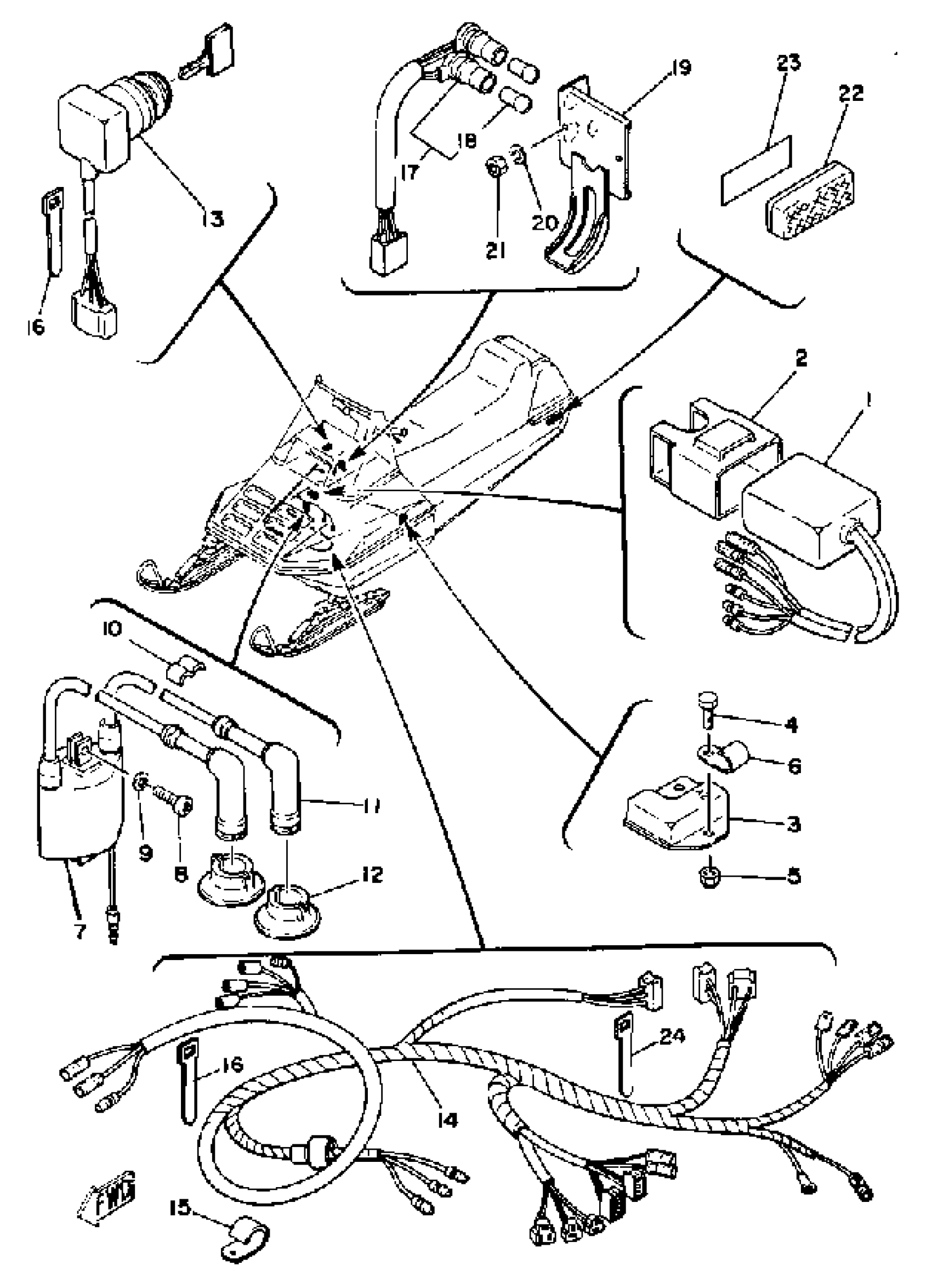

Find the part on the Electrical 1 EC540C diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha EC540C Electrical 1 EC540C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

8H4-85540-20-00

1
Out of stock

2

BAND

2A7-85546-00-00

—

$20.40

In stock

3

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

1

$50.55

In stock

4

BOLT(8CP)

97017-06014-00

1

$5.12

In stock

5

NUT, NYLON

95707-06300-00

1

$3.20

In stock

6

CLAMP

90465-08028-00

1

$4.62

In stock

7

IGNITION COIL ASSEMBLY

8H8-82310-10-00

1
Out of stock

8

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

11

PLUG CAP ASSY

7KA-82370-00-00

1

$62.25

In stock

12

SEAL, PLUG CAP

8G8-82372-00-00

1
Out of stock

13

MAIN SWITCH ASSEMBLY

8H8-82508-20-00

1
Out of stock

14

WIRE HARNESS ASSEMBLY

8H8-82590-21-00

1
Out of stock

15

CLAMP

90465-08028-00

1

$4.62

In stock

16

BAND

341-26397-01-00

1
Out of stock

17

PILOT LIGHT ASSEMBLY

(8H8-83530-00-00)

1
Out of stock

18

BULB (12V-3.4W)

123-83516-21-00

—

$4.10

In stock

19

BRKT, INDCTR LT 1

8H8-83574-00-00

1
Out of stock

20

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

21

NUT(6TA)

95307-04600-00

—

$6.69

In stock

22

REAR REFLECTOR ASSY

81G-85130-00-00

—

$33.55

In stock

23

TAPE, REFLECTOR

878-85133-00-00

1
Out of stock

24

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock
