1979 Yamaha EC540C Bumper EC540C Diagram

← All diagrams

Find the part on the Bumper EC540C diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

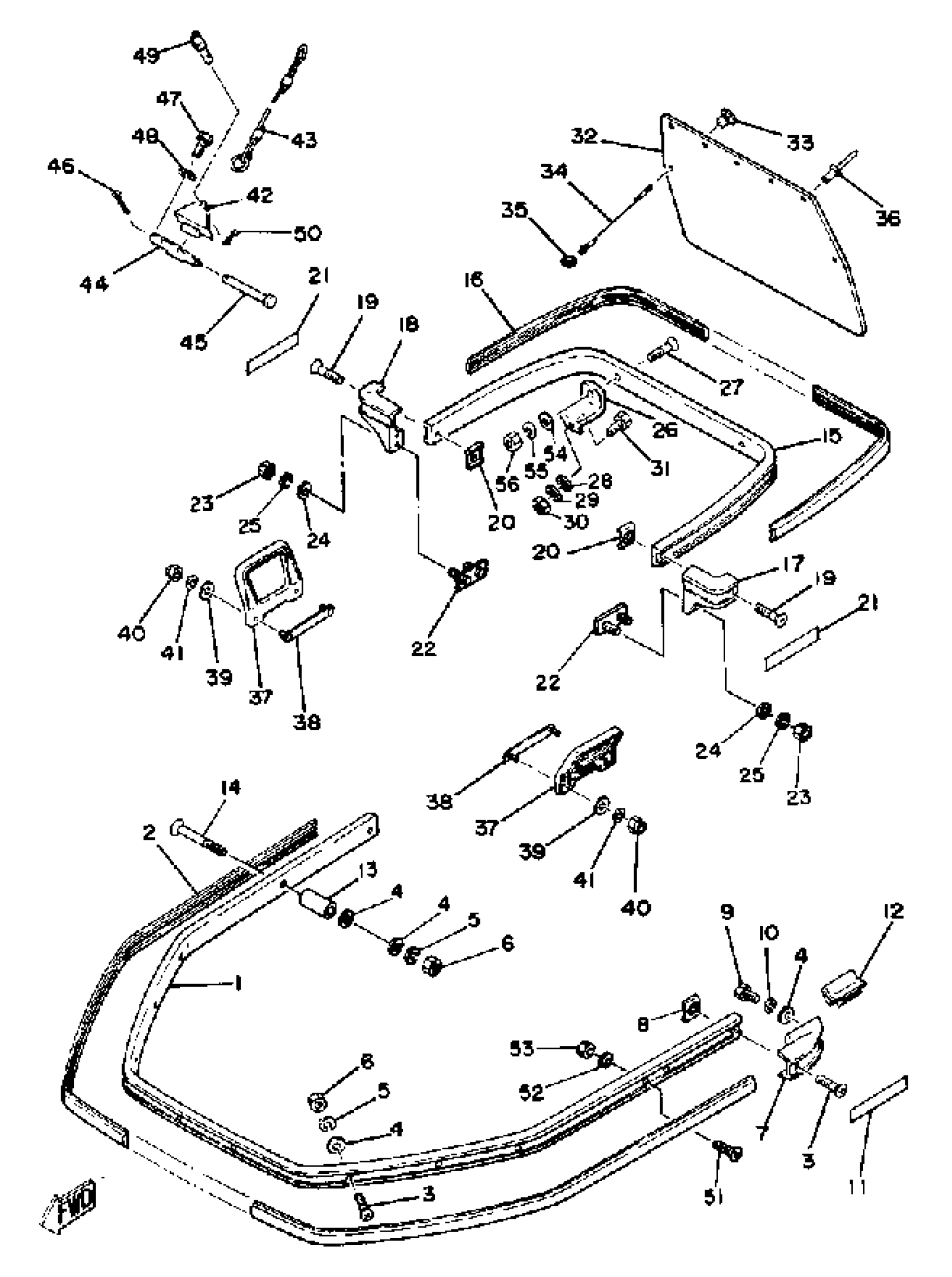

1979 Yamaha EC540C Bumper EC540C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8H8-77511-00-00

1
Out of stock

2

BUMPER, FRONT 4

8H8-77514-00-00

1
Out of stock

3

SCREW, FLAT

98707-06035-00

1
Out of stock

4

WASHER, PLATE

90201-06M08-00

1
Out of stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

7

END, BUMPER

8G8-77523-01-00

1
Out of stock

8

STAY 1

8G8-77535-00-00

1
Out of stock

9

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

STRIPE 3

8G8-77283-00-00

1
Out of stock

12

BUSH, RUBBER 2

8H5-77516-00-00

1
Out of stock

13

SPACER

(90560-06183-00)

1
Out of stock

14

SCREW, FLAT HEAD

(92701-06060-00)

1
Out of stock

15

BUMPER, REAR 1

(8H8-77541-00-00)

1
Out of stock

16

BUMPER, REAR 2

8H8-77542-00-00

1
Out of stock

17

END, BUMPER

8H8-77523-00-00

1
Out of stock

18

END, BUMPER

8H8-77524-00-00

1
Out of stock

19

SCREW, FLAT

98707-06030-00

—

$6.08

In stock

20

STAY 1

8G8-77535-00-00

1
Out of stock

21

STRIPE 3

(8H8-77283-00-00)

1
Out of stock

22

PLATE, BACK UP

(8H8-77527-00-00)

1
Out of stock

23

NUT, CROWN

95303-08800-00

—

$7.52

In stock

24

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

26

SPACER, BUMPER

8H8-77529-01-00

1
Out of stock

27

SCREW, FLAT HEAD

(92701-08035-00)

1
Out of stock

28

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

29

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

30

NUT(6L2)

95333-08600-00

—

$3.20

In stock

31

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

32

FLAP

8V8-77595-00-00

1
Out of stock

33

PLUG, SPEC''L SHAPE

90338-10024-00

1
Out of stock

34

STOPPER, FLAP

878-77596-00-00

1
Out of stock

35

CLIP

(90468-16059-00)

1
Out of stock

36

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

37

GRIP, ASSIST

FJ0-63771-30-00

1

$102.49

In stock

38

BRKT, ASSIST GRIP

898-77576-00-00

1
Out of stock

39

WASHER, PLATE (4W3)

90201-086A3-00

—

$6.29

In stock

40

NUT, CROWN

95303-08800-00

—

$7.52

In stock

41

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

42

BRACKET, HITCH 1

8H7-77591-00-00

1
Out of stock

43

BRACKET, HITCH 2

8F1-77592-00-00

1
Out of stock

44

BRACKET, HITCH 7

(8H8-77597-00-00)

1
Out of stock

45

PIN, CLEVIS

91701-08100-00

1
Out of stock

46

PIN, COTTER

91490-25020-00

—

$2.94

In stock

47

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

48

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

49

PIN, SPEC''L SHAPE

90249-10126-00

1
Out of stock

50

PIN, HINGE

8A7-77157-00-00

1
Out of stock

51

SCREW, FLAT

98707-06030-00

—

$6.08

In stock

52

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

53

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

54

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

55

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

56

NUT, CROWN

95303-08800-00

—

$7.52

In stock
