1979 Yamaha EC540C Headlight EC540C - D Diagram

← All diagrams

Find the part on the Headlight EC540C - D diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

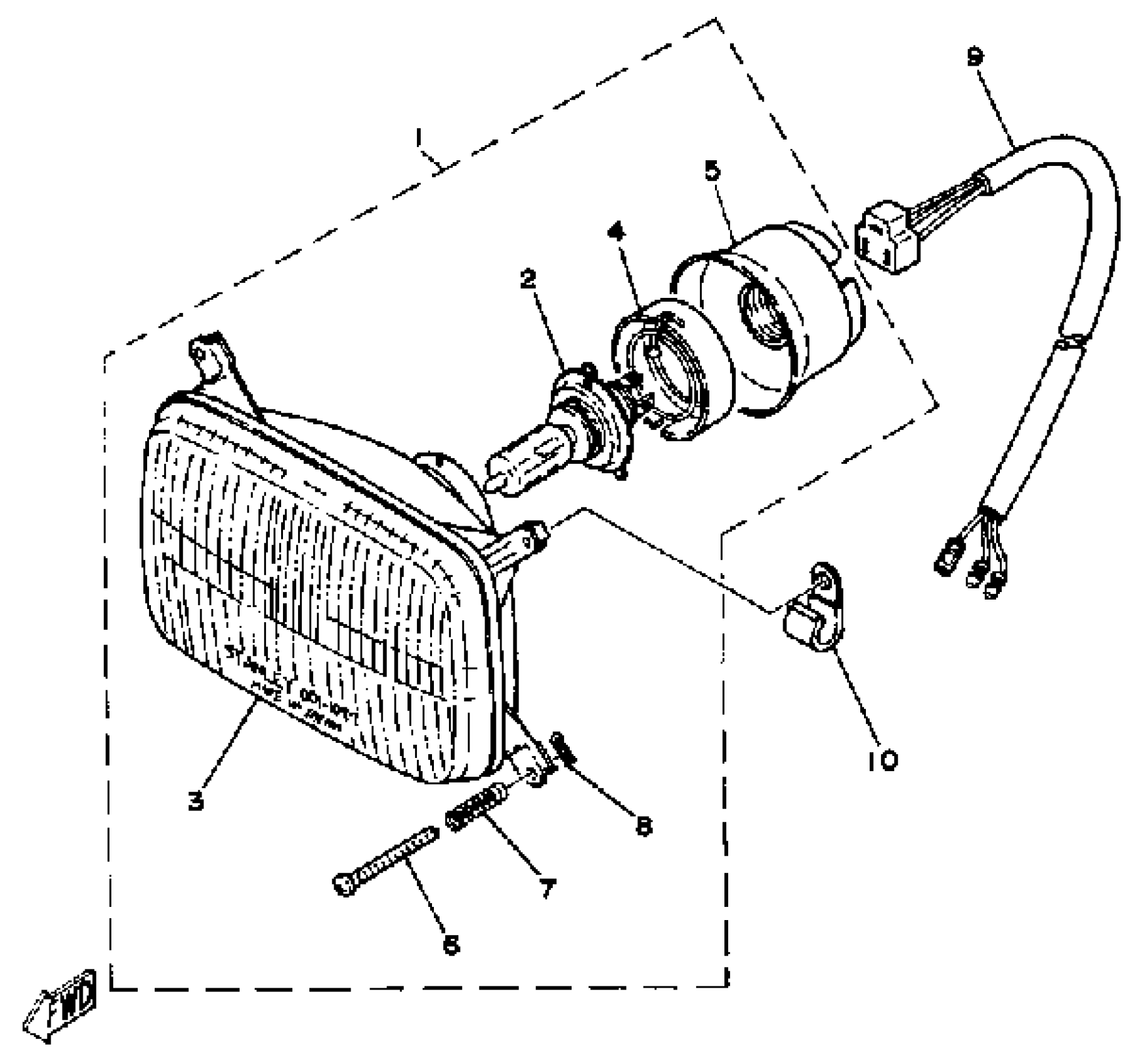

1979 Yamaha EC540C Headlight EC540C - D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

8M6-84310-00-00

1
Out of stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

LENS ASSY

8A7-84320-00-00

—

$49.02

In stock

4

HOLDER, SOCKET

8A7-84312-00-00

1
Out of stock

5

COVER, SOCKET

8A7-84397-01-00

—

$20.35

In stock

6

SCREW, ADJUSTING

8M6-84331-00-00

1

$14.80

In stock

7

SPRING, ADJUST SCREW

8A5-84332-00-00

1

$7.40

In stock

8

CLIP

8K4-84374-00-00

1

$6.82

In stock

9

CORD, HEADLIGHT

8H8-84359-00-00

1
Out of stock

10

CLAMP

90465-08028-00

1

$4.62

In stock
