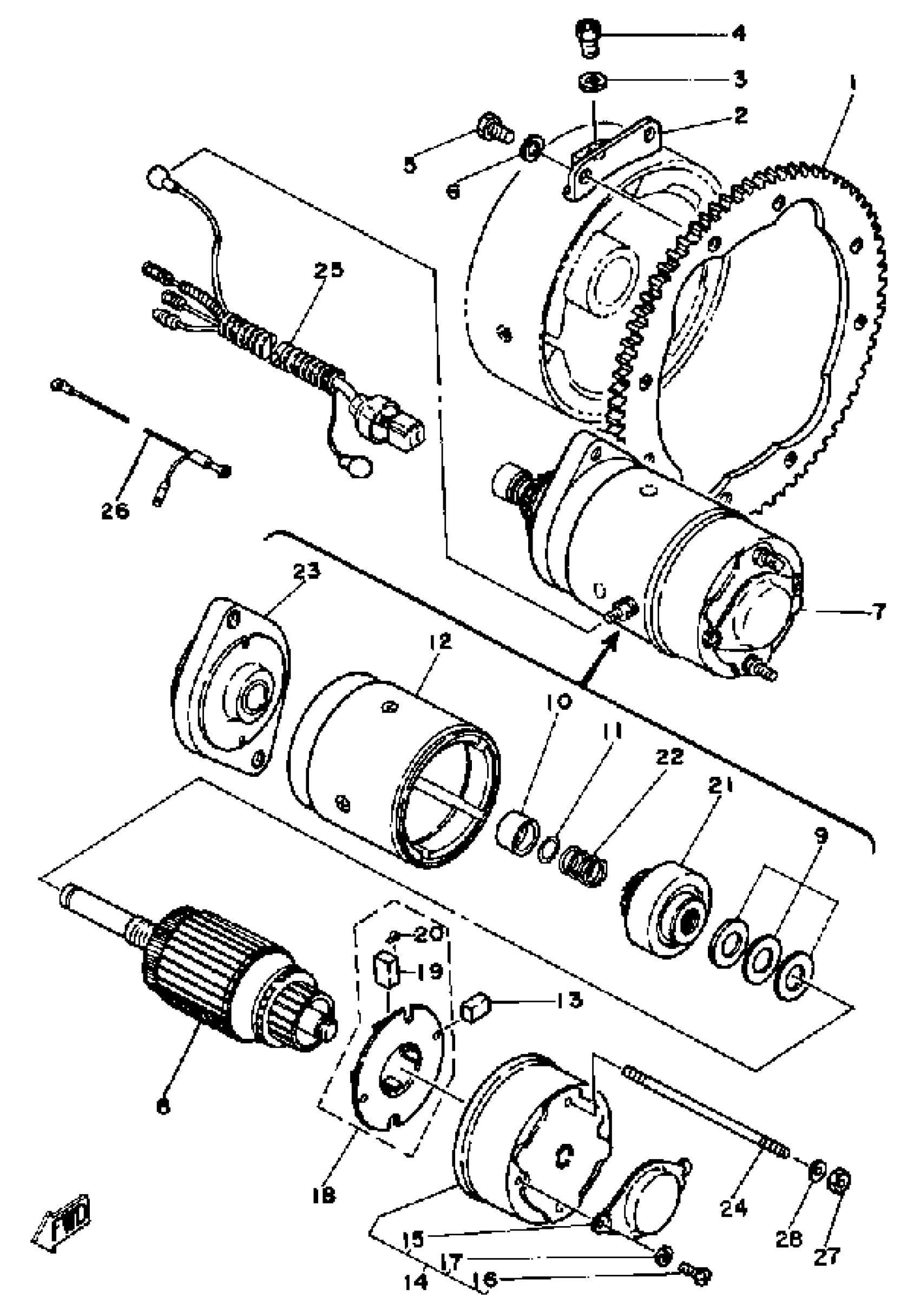

Find the part on the Starting Motor EC540D diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha EC540C Starting Motor EC540D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, RING

8H8-81891-00-00

1
Out of stock

2

STAY, RING GEAR

8H8-81895-00-00

1
Out of stock

3

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

4

BOLT, HEX SKT HEADSOCKET HEAD

90110-08028-00

1
Out of stock

5

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

STARTING MOTOR ASY

8J4-81800-09-00

1
Out of stock

8

. ARMATURE ASSEMBLY

8J4-81850-10-00

1
Out of stock

9

. WASHER KIT

676-81809-10-00

1

$19.22

In stock

10

STOPPER, PINION

(8J9-81859-10-00)

1
Out of stock

11

. RING

8J4-81834-10-00

1
Out of stock

12

STATOR ASSEMBLY

(8J4-81810-11-00)

1
Out of stock

13

. BRUSH 1

663-81811-10-00

1
Out of stock

14

REAR BRACKET ASSEMBLY

(8G3-81820-10-00)

1
Out of stock

15

.. COVER

8J4-81842-10-00

1
Out of stock

16

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

17

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

18

. BRUSH HOLDER ASSEMBLY

8G3-81840-11-00

1
Out of stock

19

.. BRUSH 2

663-81812-10-00

1
Out of stock

20

SPRING, BRUSH

(8G3-81813-10-00)

1
Out of stock

21

CLUTCH, OVER RUN

(8J4-81832-10-00)

1
Out of stock

22

SPRING, LEVER

(8J4-81836-10-00)

1
Out of stock

23

. UNAVAILABLE IN PRICE BOOK

8J4-81820-10-00

1
Out of stock

24

BOLT

(8J4-81826-10-00)

1
Out of stock

25

WIRE, LEAD

(8K1-82117-01-00)

1
Out of stock

26

WIRE, MINUS LEAD

(8K1-82116-00-00)

1
Out of stock

27

NUT(6L2)

95333-08600-00

—

$3.20

In stock

28

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock
