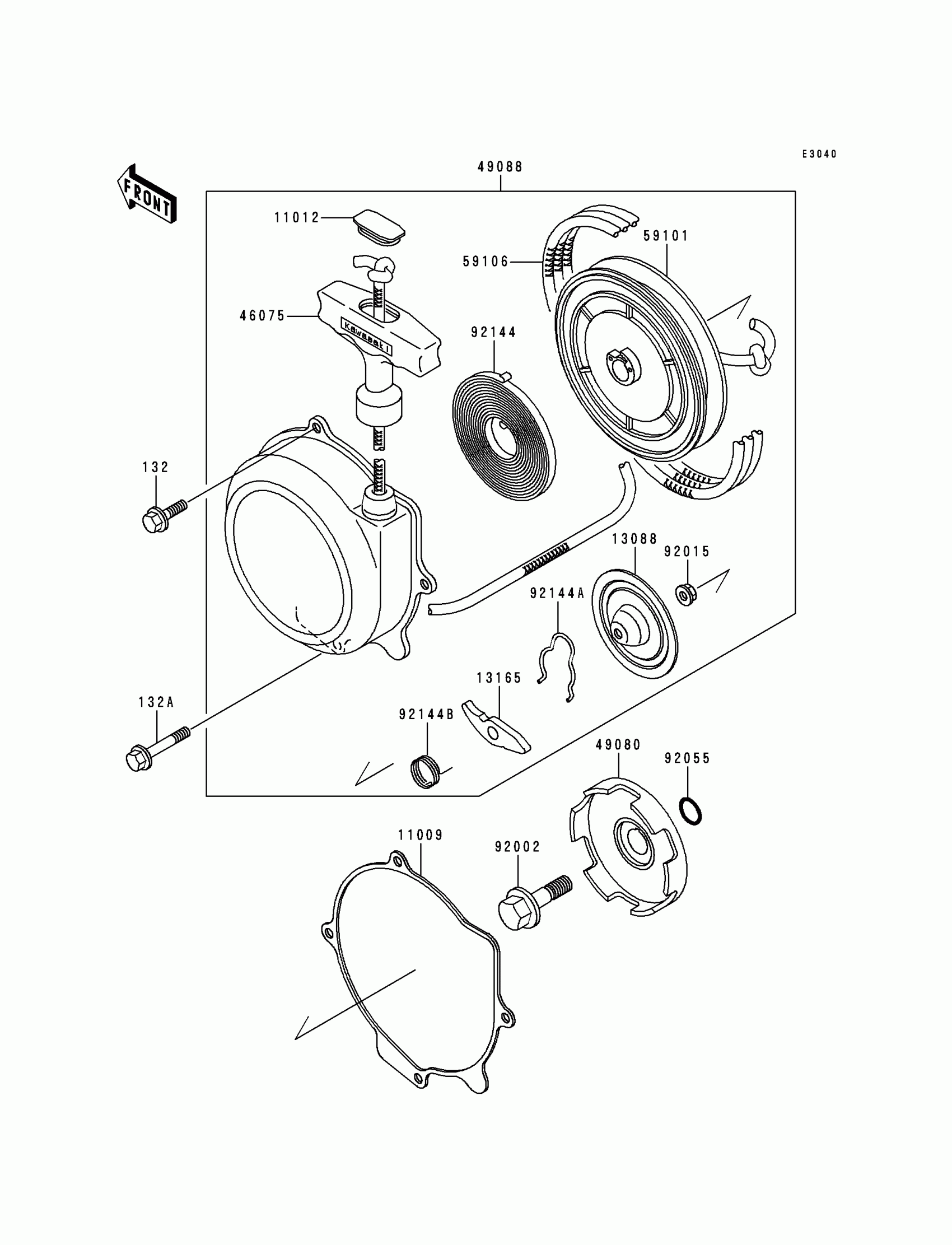

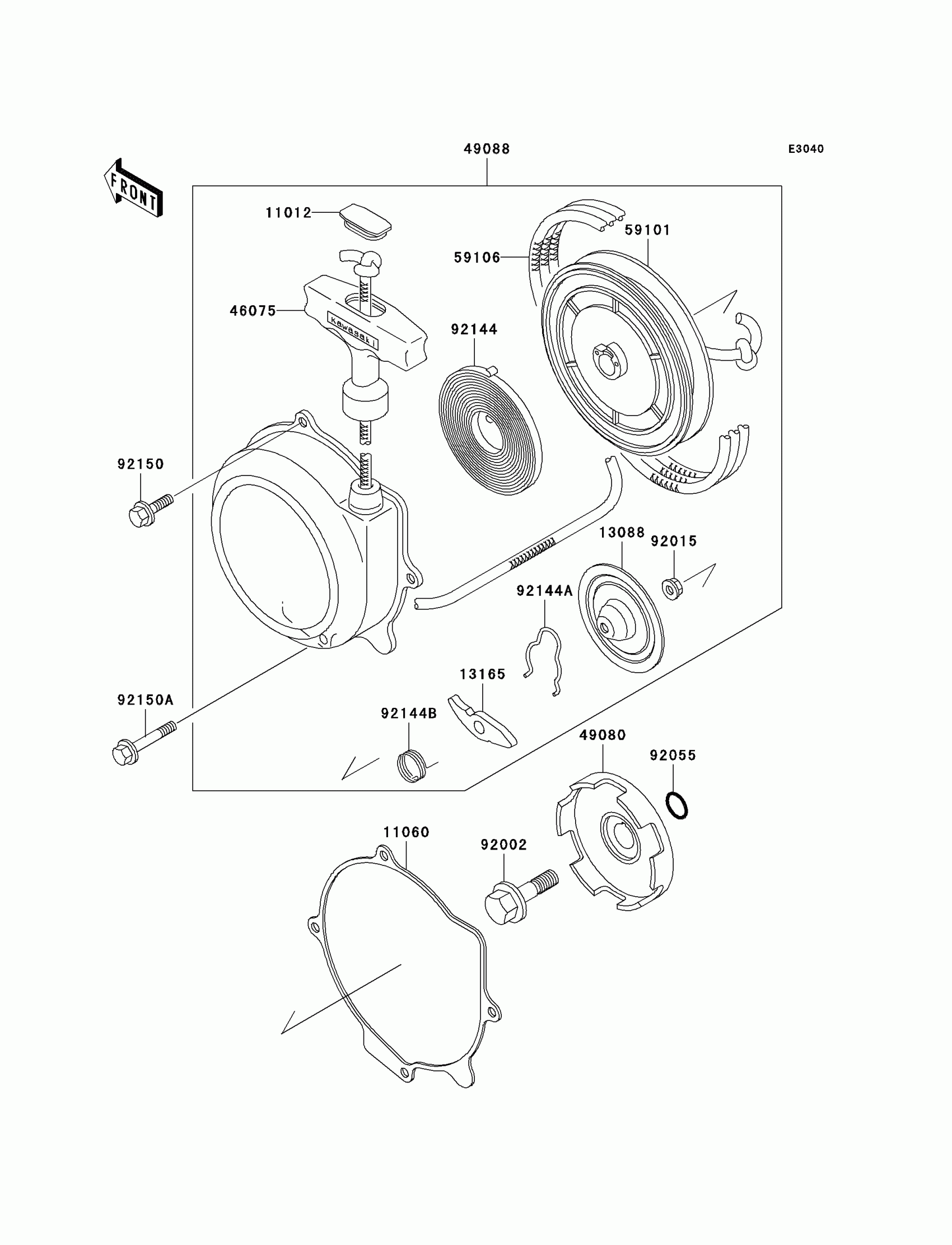

Kawasaki Bayou 300 Recoil Starter Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132J0614

Unavailable

132A

BOLT-FLANGED-SMALL,6X90

132J0690

Unavailable

11009

GASKET

11009-1679

Unavailable

11012

CAP,RECOIL GRIP

11012-1420

$5.61

13088

PLATE-FRICTION,RECOIL

13088-1073

$15.63

13165

PAWL,RECOIL

13165-1123

$20.39

46075

GRIP,RECOIL

46075-1073

$14.37

49080

PULLEY-STARTING

49080-1055

$68.06

49088

STARTER-RECOIL

49088-1055

$373.19

59101

REEL

59101-1109

$136.45

59106

ROPE

59106-1103

$32.34

92002

BOLT,FLANGED,10X40

92002-1296

$8.10

92015

NUT,6MM

92015-1464

$4.34

92055

RING-O,16.8MM

92055-1235

$4.18

92144

SPRING,RECOIL

92144-1205

$62.46

92144A

SPRING,FRICTION

92144-1206

$18.68

92144B

SPRING,RETURN

92144-1207

$5.10
