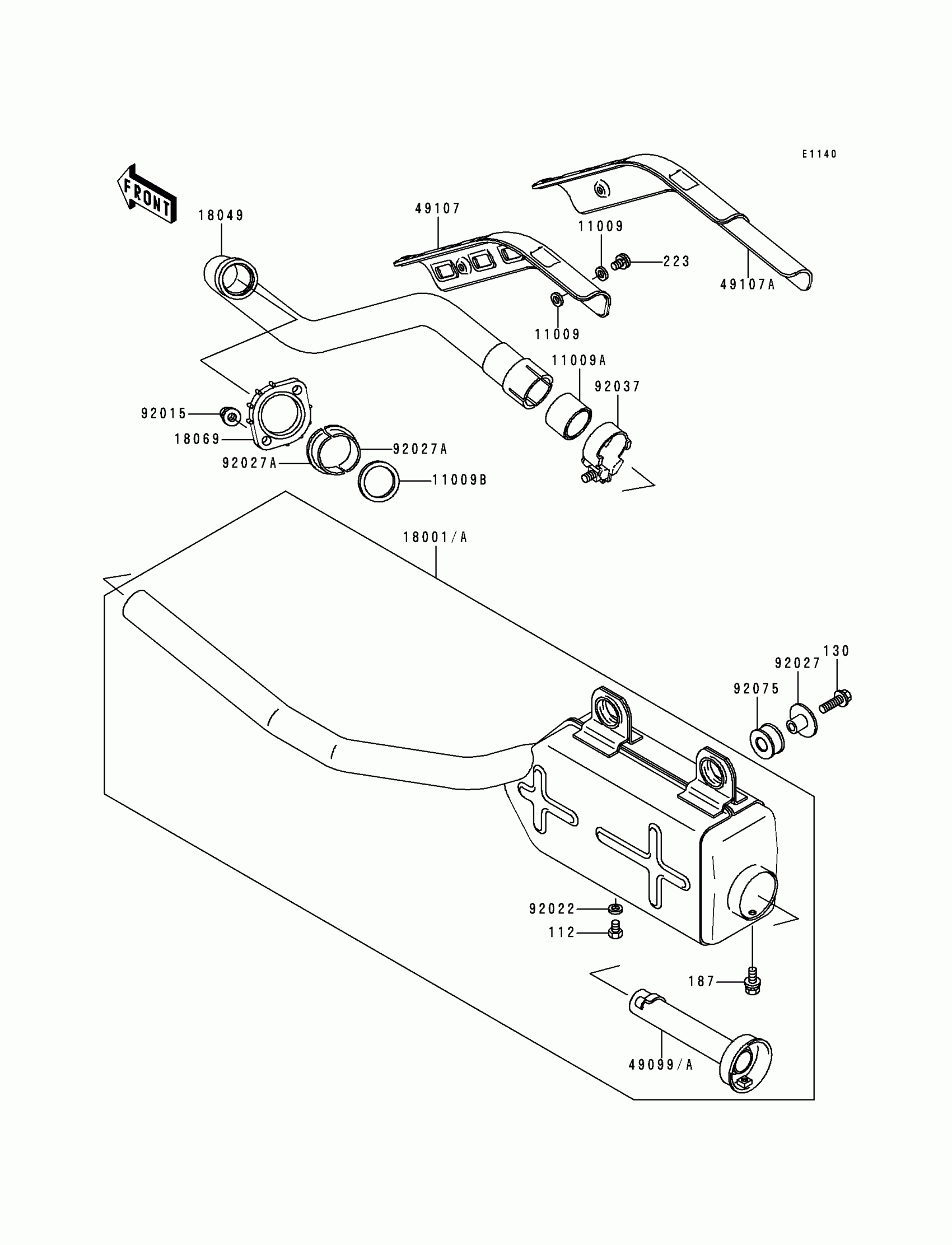

Kawasaki Bayou 300 MUFFLER Diagram

#

Description
Price

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1667

$21.24

11009A

GASKET,6.2X11.5X1.5

11060-1109

$3.63

11009B

GASKET,EXHAUST PIPE H

11009-1866

$6.55

18001

MUFFLER

18001-1579

Unavailable

18049

PIPE-EXHAUST

18049-1335

$318.20

18069

HOLDER-EXHAUST PIPE

18069-1014

$14.79

49099

BAFFLE-PIPE MUFFLER

49099-1200

Unavailable

49107

COVER-EXHAUST PIPE

49107-1065

$69.36

92015

NUT,8MM

92015-1402

$3.72

92022

WASHER,6.2X11X1

92022-304

$2.92

92027

COLLAR,MUFFLER

92027-1981

$8.53

92027A

COLLAR,EXHAUST PIPE

92027-264

$3.75

92037

CLAMP,42MM,BLACK

92037-1350

Unavailable

92075

DAMPER,MUFFLER

92075-1809

$6.66

112

BOLT-UPSET,6X8

112B0608

Unavailable

130

BOLT-FLANGED,8X25,BLACK

130J0825

Unavailable

187

BOLT 6X12

187B0612

Unavailable

223

SCREW-PAN-WS-CROS

223C0610

$3.28
