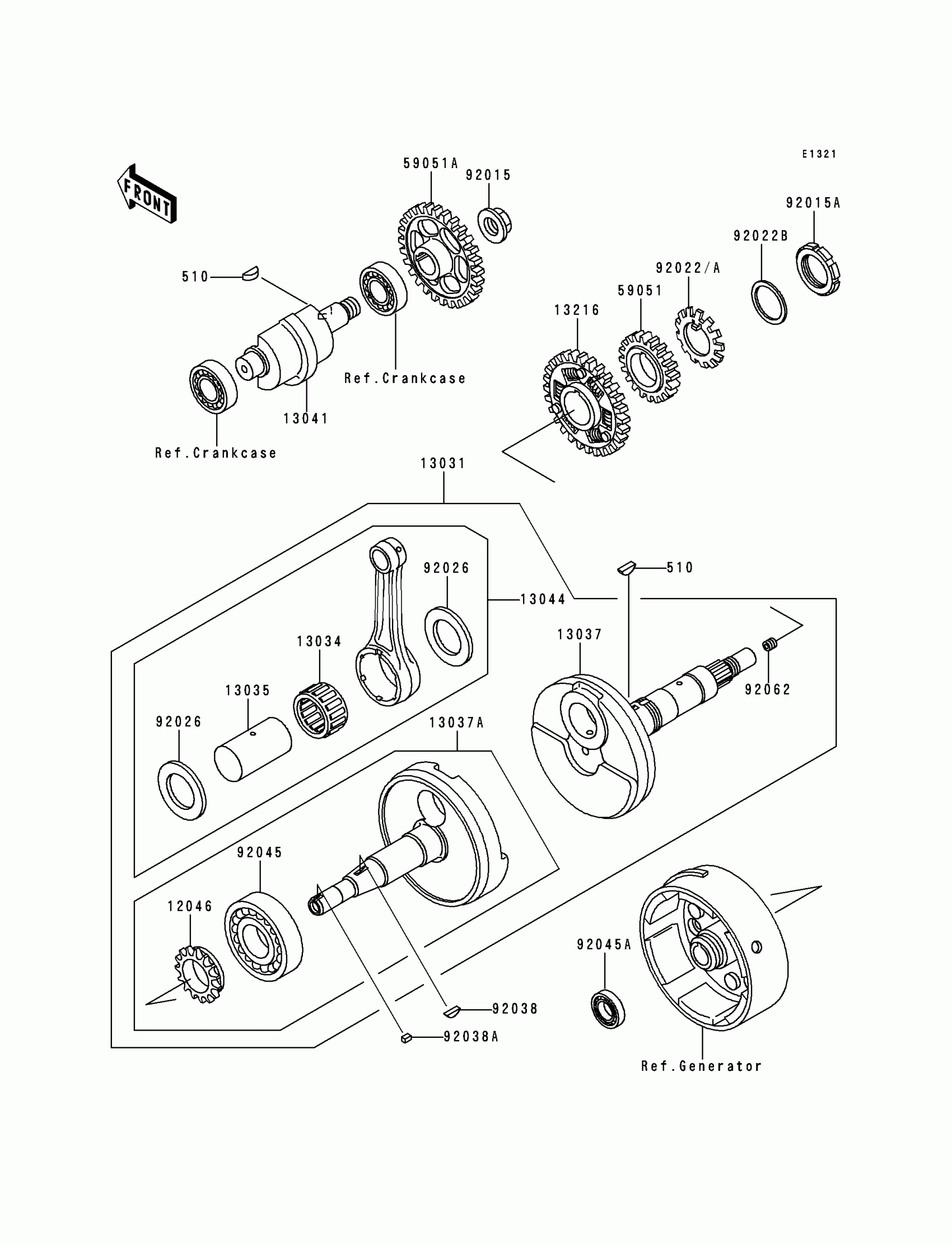

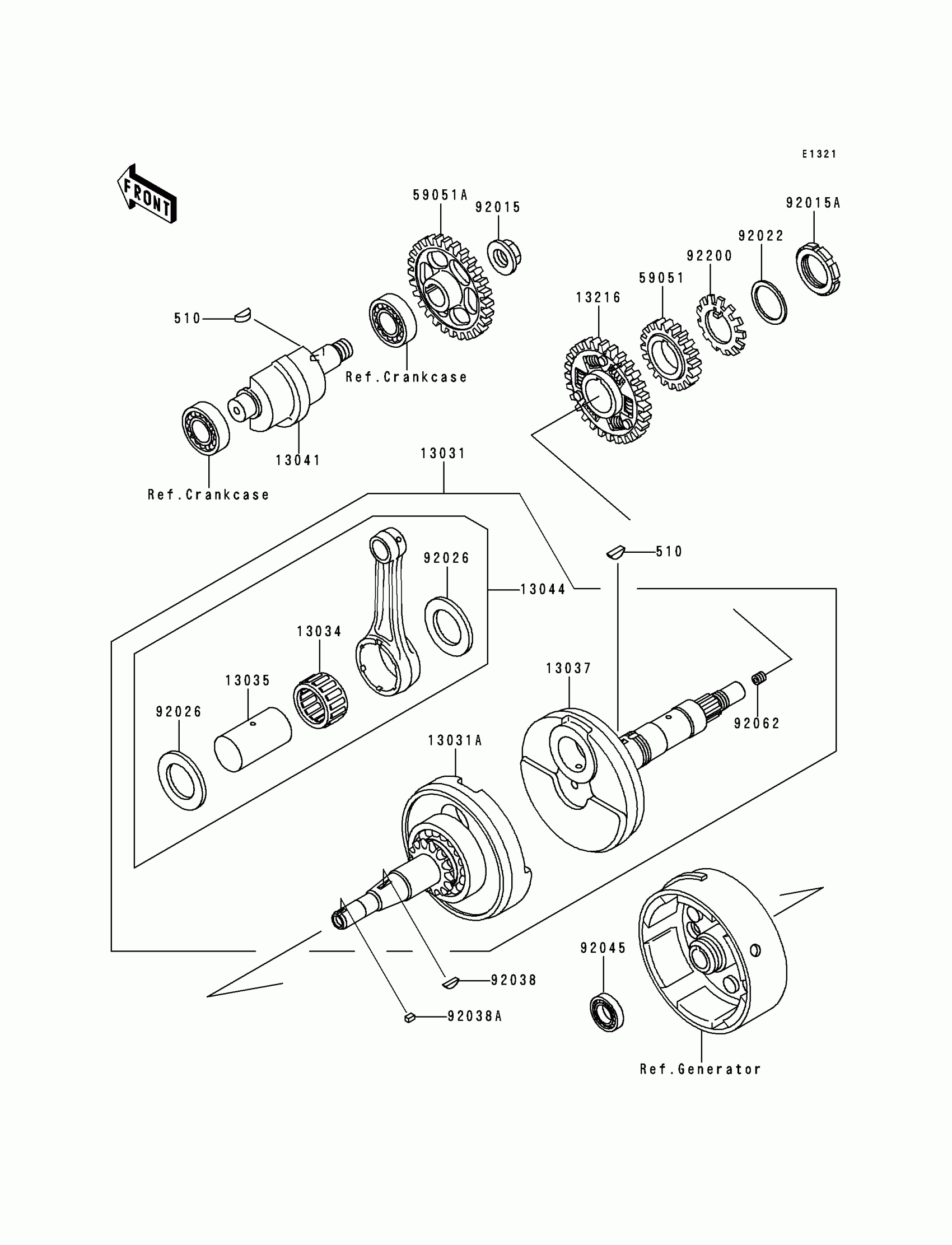

Kawasaki Bayou 300 Crankshaft Diagram

#

Description
Price

510

WOODRUFF KEY

510A5100

$1.87

12046

SPROCKET,16T

12046-1038

$53.71

13031

CRANKSHAFT-COMP

13031-1254

Unavailable

13034

BEARING-BIG END,PK32X43X22.4

13034-1061

$48.84

13035

PIN-CRANK

13035-1067

$69.31

13037

CRANKSHAFT,RH

13037-1268

Unavailable

13037A

CRANKSHAFT,LH

13037-5075

Unavailable

13041

BALANCER

13041-1066

$151.28

13044

SET-CONNECTING ROD

13044-5066

$281.88

13216

GEAR-COMP,BALANCER

13216-1072

$180.35

59051

GEAR-SPUR,OIL PUMP,36T

59051-1140

$64.81

59051A

GEAR-SPUR,BALANCER,44T

59051-1141

$130.18

92015

NUT,16MM

92015-1465

$14.01

92015A

NUT,PUMP GEAR,30MM

92015-1511

$22.64

92022A

WASHER,TOOTHED

92022-1986

$4.68

92022B

WASHER,30.3X38X0.5

92022-1987

$4.42

92026

SPACER,32X51.5X1.2

92026-1232

$11.12

92038

KEY,WOODRUFF

92038-001

$3.78

92038A

KEY,SUNK

92038-1051

$4.33

92045

BEARING-BALL,#6306

92045-037

$43.48

92045A

BEARING-BALL,#6903C3

92045-1131

$20.02

92062

NOZZLE

92062-1056

$4.42
