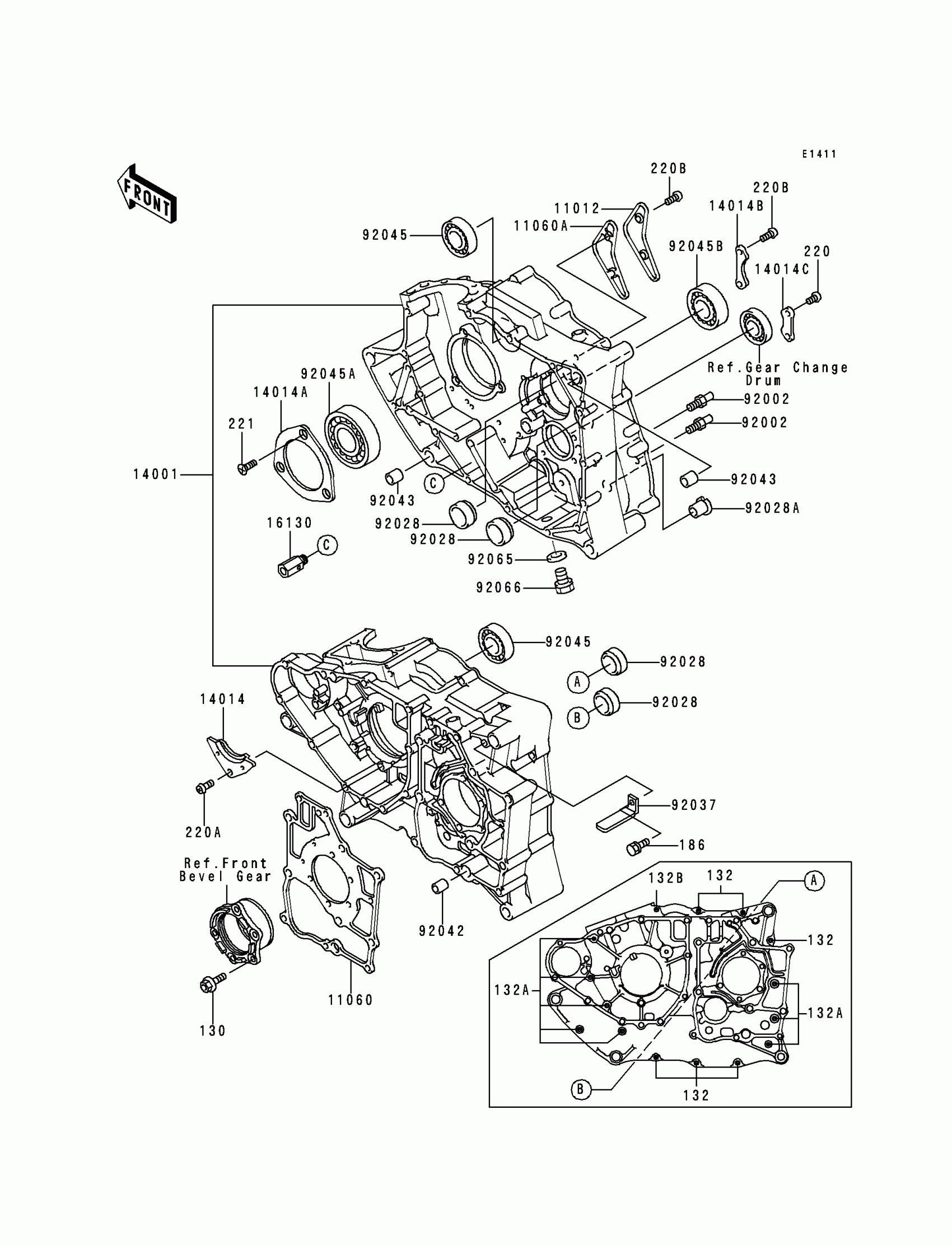

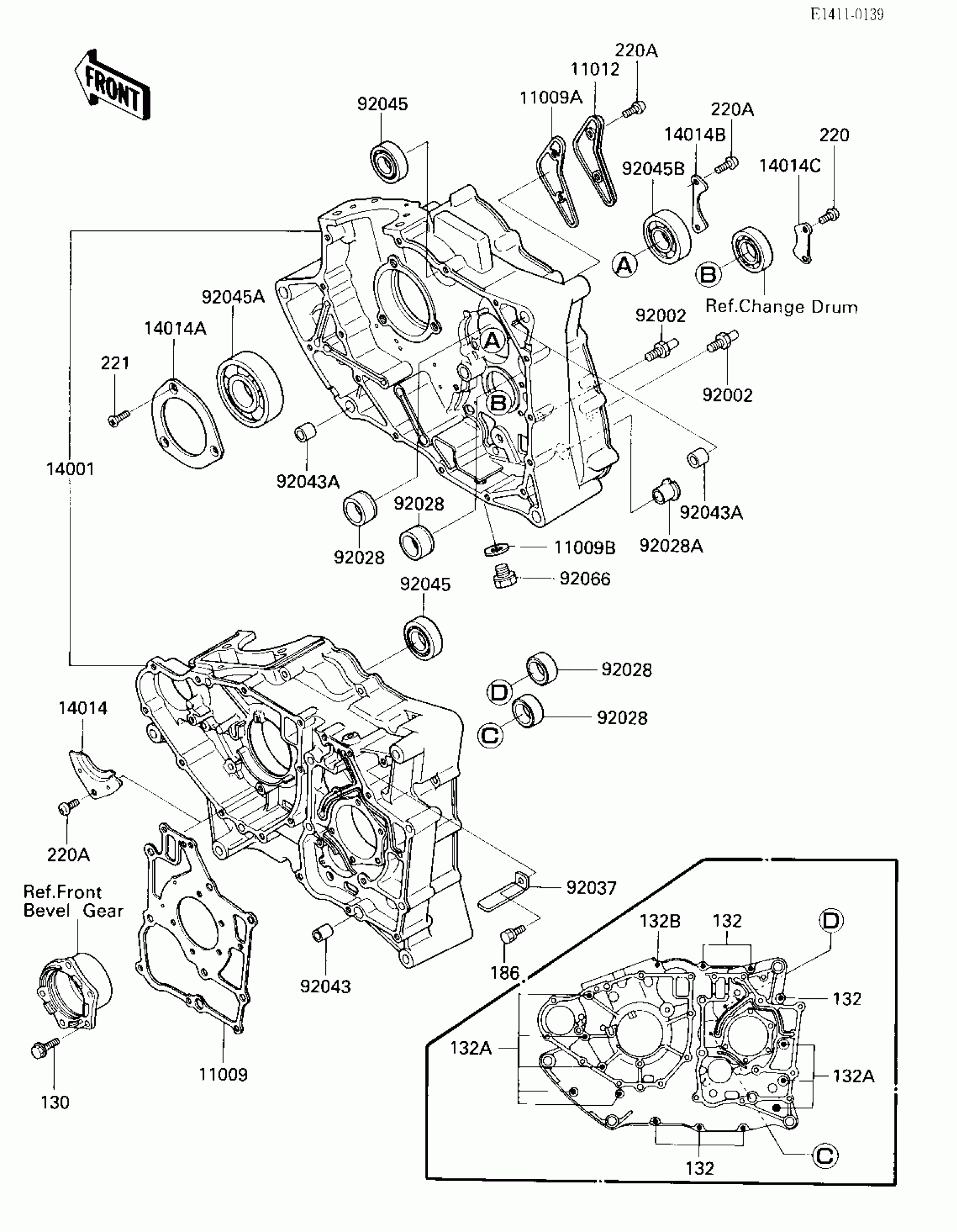

Kawasaki Bayou 300 CRANKCASE Diagram

#

Description
Price

11009

GASKET,GEAR CASE

11060-1224

Unavailable

11009A

GASKET,OIL LINE CAP

11009-1517

Unavailable

11009B

GASKET,12X22X2

92065-097

$0.66

11012

CAP

11012-1443

$9.47

14001

SET-CRANKCASE

14001-5210

Unavailable

14014

PLATE,POSITIONING

14014-035

$4.61

14014A

PLATE-POSITION,CRANK BEARING

14014-1004

$11.12

14014B

PLATE-POSITION

14014-1069

$5.37

14014C

PLATE-POSITION,CHANGE DRUM

14014-1070

$7.14

92002

BOLT,SOCKET,4X8

92002-1408

$5.75

92028

BUSHING,23X30X13

92028-132

$38.79

92028A

BUSHING

92028-1386

$16.31

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92043

PIN,DOWEL,12X14

92042-031

$4.93

92043A

PIN,DOWEL,14X14

92042-032

Unavailable

92045

BEARING-BALL,6004TMB

92045-1118

$19.29

92045A

BEARING-BALL

92045-1172

$49.82

92045B

BEARING-BALL,TMB304CCM

92045-1142

$35.98

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

130

BOLT-FLANGED,6X20

130P0620

$1.22

132

BOLT-FLANGED-SMALL,6X35

132Y0635

Unavailable

132A

BOLT-FLANGED-SMALL

132Y0665

Unavailable

132B

BOLT-FLANGED-SMALL

132Y0685

Unavailable

186

BOLT-UPSET-WP

186D0614

Unavailable

220

SCREW PAN HEAD 6X10

220B0610

Unavailable

220A

SCREW-PAN-CROS,6X14

220B0614

$1.14

221

SCREW-CSK-CROS,6X16

221B0616

$0.54
