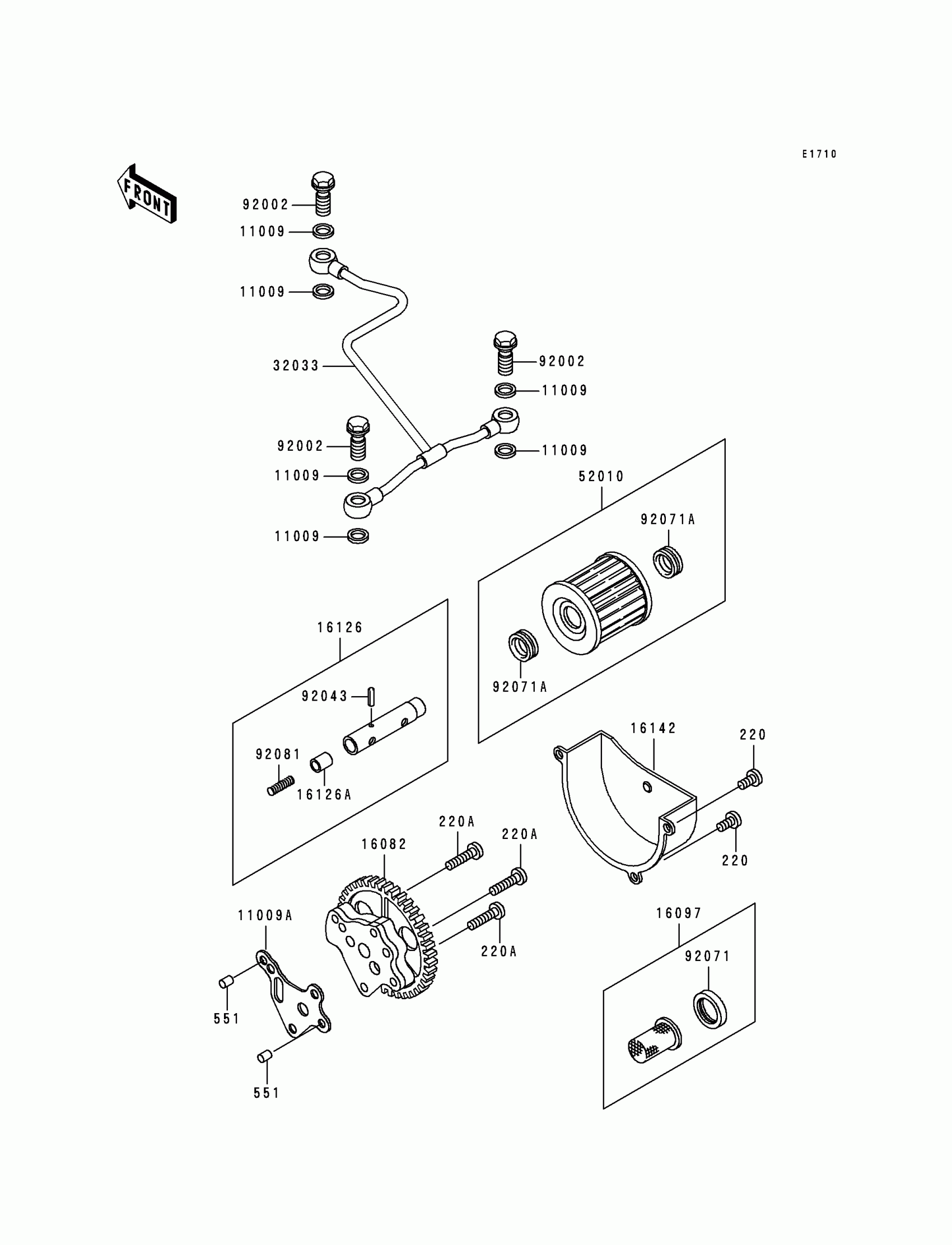

Kawasaki Bayou 300 Oil Pump Diagram

Description

Price

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

220A

SCREW PAN HEAD 6X25

220B0625

Unavailable

551

PIN-DOWEL,6X8

551A0608

$3.53

11009

GASKET,10X14.5X1.5

11009-1105

$5.15

11009A

GASKET,OIL PUMP

11009-1520

Unavailable

16082

PUMP-ASSY-OIL

16082-1068

$184.36

16097

FILTER-ASSY-OIL

16097-1001

$9.69

16126

PISTON-ASSY,VALVE,BY-PASS

16156-002

$21.56

16126A

VALVE

92136-002

$4.14

16142

COVER-PUMP

16142-1064

$16.44

32033

PIPE,OIL

32033-1744

$84.70

52010

ELEMENT-OIL FILTER

16099-004

$7.36

92002

BOLT,OIL,L=23

92002-1888

$4.35

92043

PIN,SPRING,2.2X13.5

92043-123

$4.17

92071

GROMMET,OIL STRAINER

92071-100

$4.34

92071A

GROMMET,OIL FILTER

92071-101

$4.34

92081

SPRING,PISTON

92081-043

$4.34
