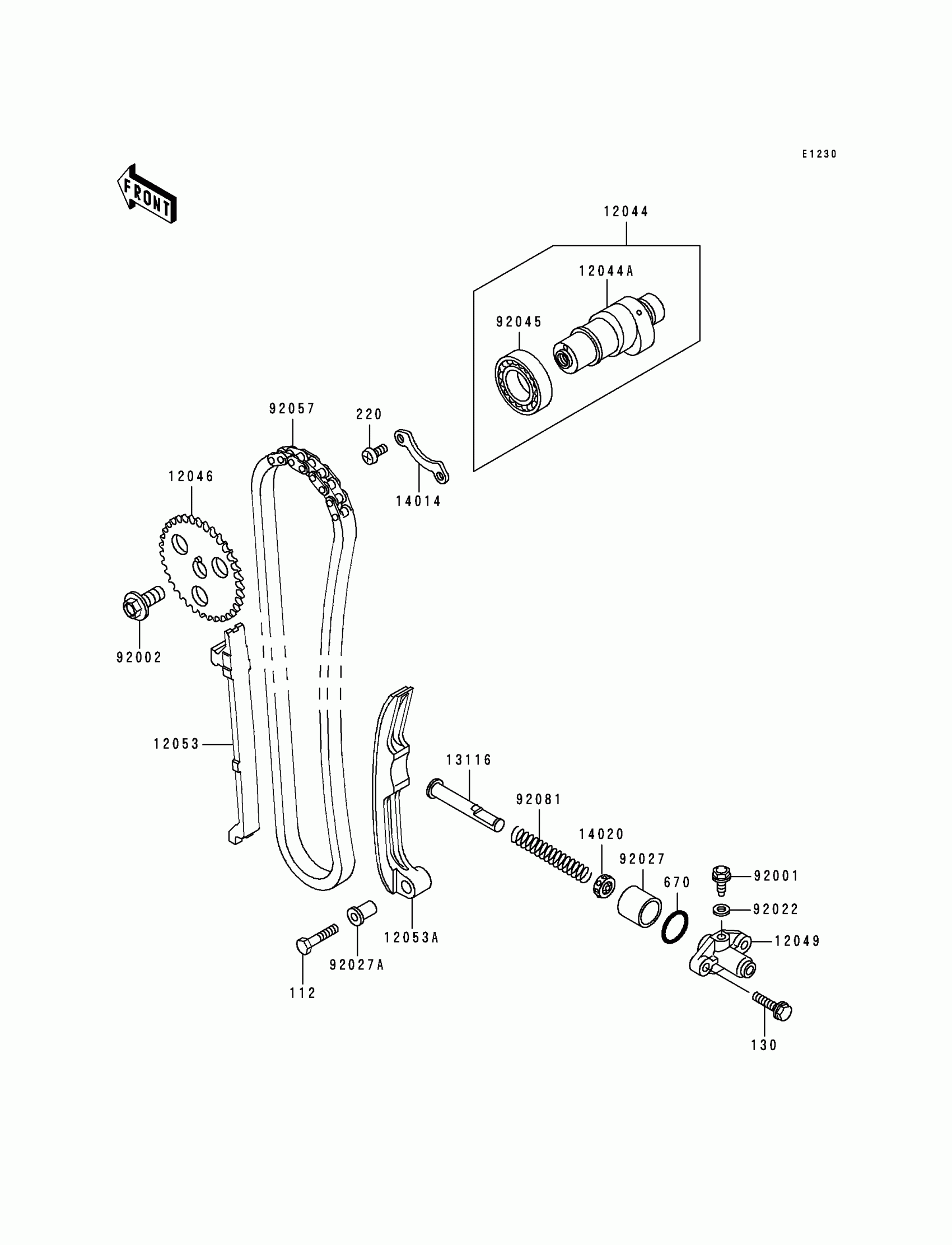

Kawasaki Bayou 300 Camshaft/Tensioner Diagram

Description

Price

112

BOLT-UPSET

112G0630

Unavailable

130

BOLT-FLANGED,6X25

130Y0625

Unavailable

220

SCREW PAN HEAD 6X10

220B0610

Unavailable

670

O RING,21MM

670B2021

$3.72

12044A

CAMSHAFT-VALVE

12044-1224

Unavailable

12046

SPROCKET,CAM CHAIN,32

12046-1037

$60.10

12049

TENSIONER,CAM CHAIN

12049-1055

$47.04

12053

SLIPER,CAM CHAIN

12053-023

$36.81

12053A

SLIPER,CAM CHAIN

12053-024

$50.08

13116

ROD,PUSH,CAM CHAIN

13116-1019

$15.24

14014

PLATE-POSITION

14014-1030

$3.51

14020

RETAINER,TENSIONER

14020-1054

$21.11

92001

BOLT,TENSIONER ADJUST

92001-1155

$4.68

92002

BOLT,10X23

92001-1859

$7.86

92022

WASHER OIL PUMP BANJO

92022-077

$3.13

92027

COLLAR,TENSIONER

92027-1273

$33.19

92027A

COLLAR

92027-155

$6.51

92045

BEARING-BALL,#6005C4

92045-1056

$22.83

92057

CHAIN,CAM

21070-013

$153.78

92081

SPRING,TENSIONER

92081-1105

$4.07
